10.8 Checking the Incoming Indicator: FB-3000
10-41
1. LAN LED
The ports currently establishing communication have both green and orange LEDs
lighted/blinking.
x Green LED : Lnk/Act
Lighted : Linkage established/Turned off: Linkage not established/Blinking :
Data transmission/receipt in process
x Yellow LED : Fulld/Col
Lighted : Full duplex/Turned off: Half-duplex/Blinking: Collision currently
issued
2. Initializing the Incoming indicator
Please refer to page 10-47.

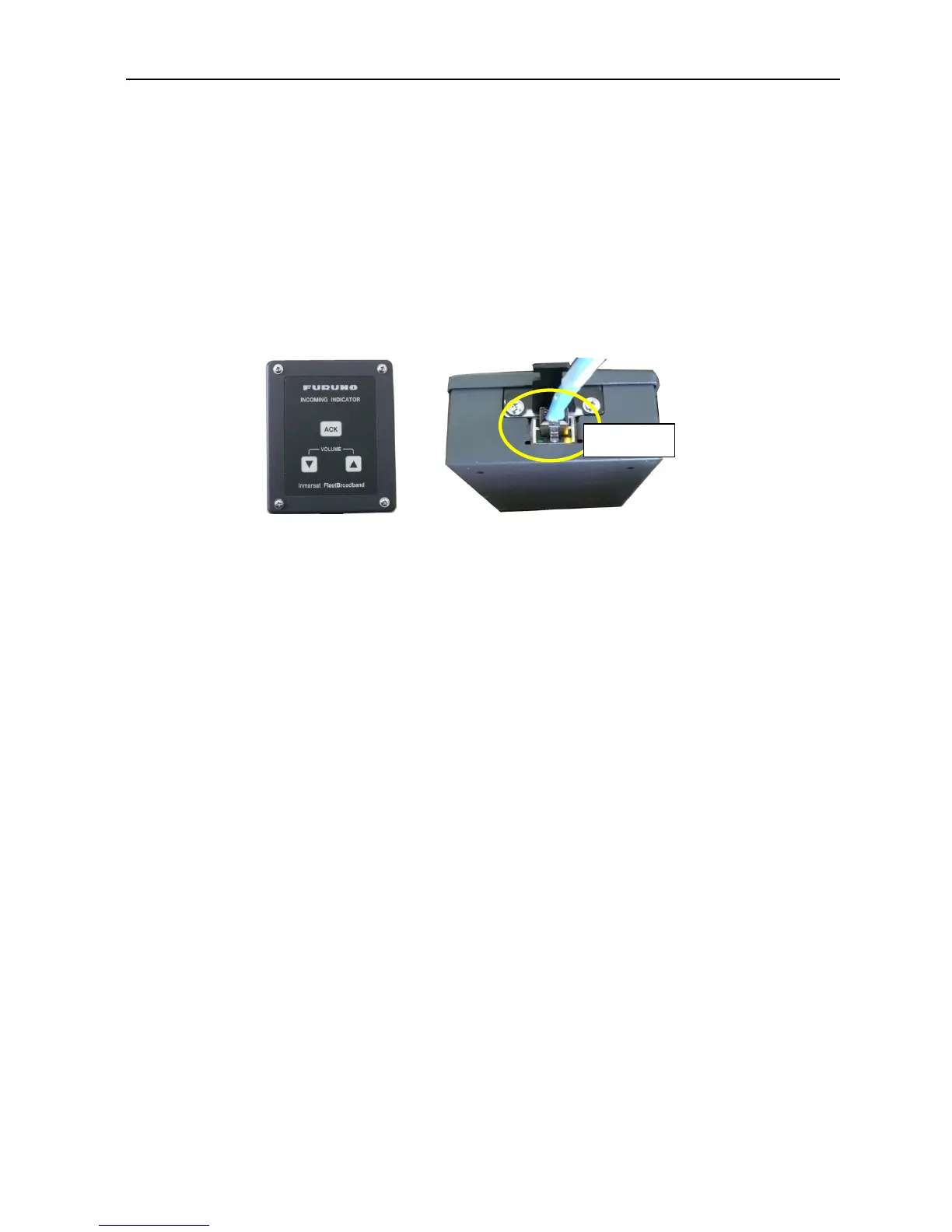

LAN LED
