9. INSTALLATION
9-3

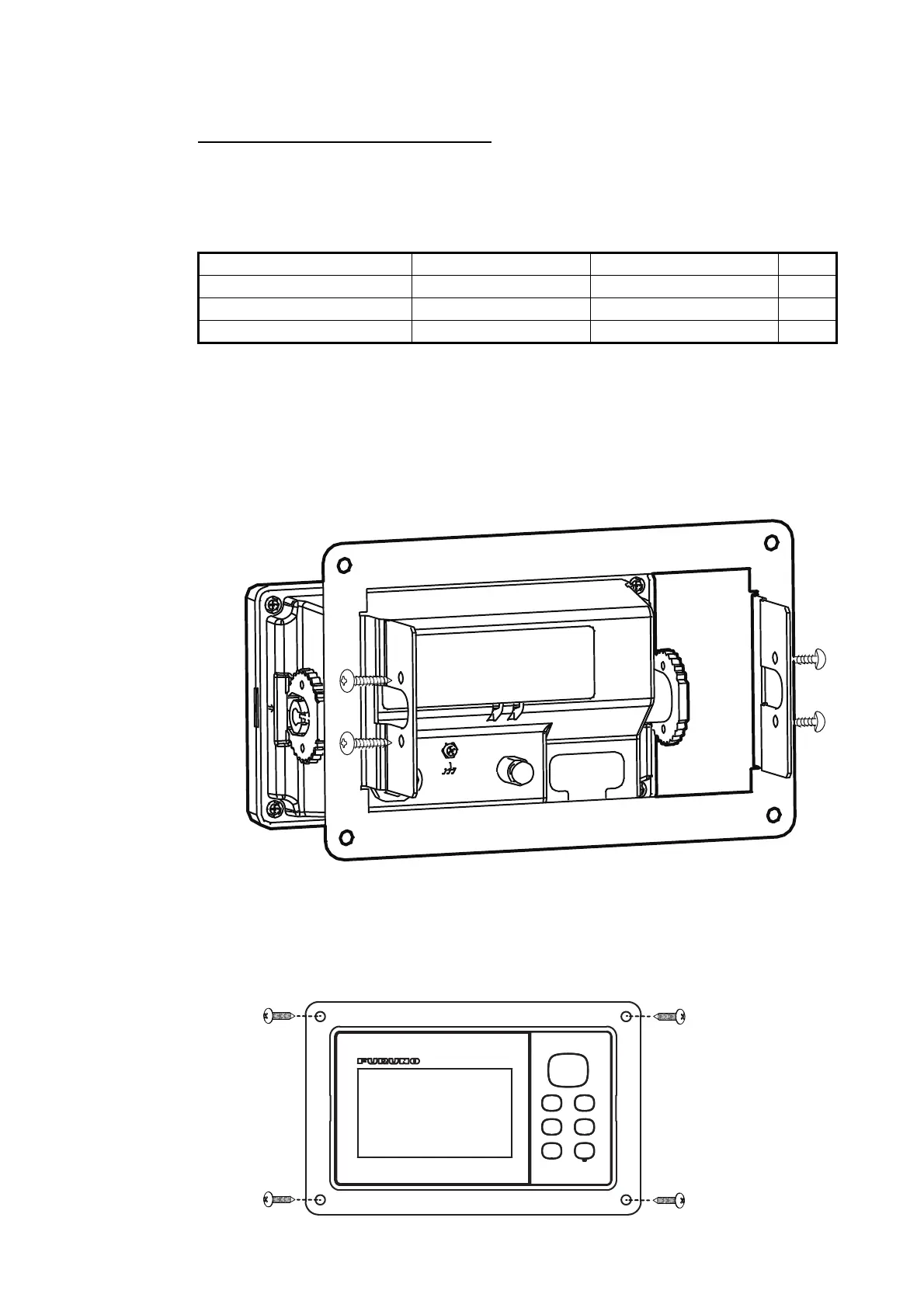

9.2.3 Flush mount
Using Flush Mount Kit F (OP20-45)
An optional flush mount kit type F is required. The table below shows the contents of
the OP20-45 kit.
Name: Flush Mount Kit F, Type: OP20-45, Code No. 001-435-860
1. Using the template (supplied), cut out a hole in the mounting location.
2. Prepare four pilot holes (for 5x16 self-tapping screws) at the mounting location.
3. Detach the display unit from the hanger.
This hanger can be discarded.
4. Attach the flush mount kit F to the display unit using four self-tapping screws
(4 8) to fasten the kit F to the display unit.
5. Attach the display unit and flush mount kit F to the hole made at step 1.
6. Connect cables to the back of the display unit.
7. Use four self-tapping screws to fasten the display unit to the mounting location.
Name Type Code No. Qty
Self-tapping screw 4 8 SUS304 000-163-797-10 4
Cosmetic panel 20-038-1201 100-406-600-10 1
Self-tapping screw 5 16 SUS304 000-162-607-10 4
Self-tapping Screw
(5 × 16, 4 pcs.)
To Next Page
