10.6 Operating External Equipment
You can control external equipment (such as on-board monitoring and digital switch-
ing) by connecting the external equipment via the HDMI Input ports, and the touch
monitors via the USB ports on the TZT2BB.
Note: This feature is not available for the TZTL12F/TZTL15F.

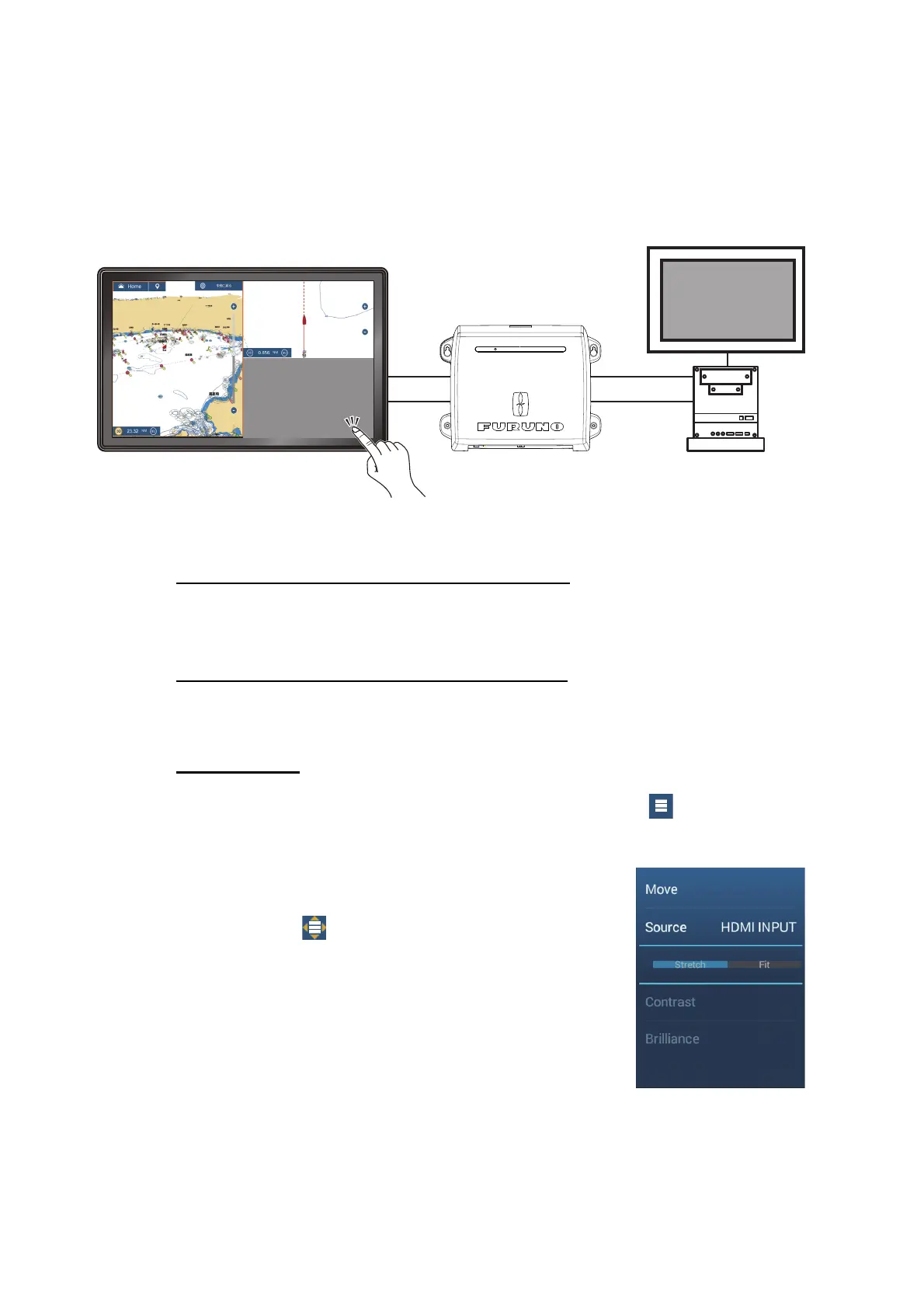

Configuration example
How to set up operation of external equipment
1. From the Home screen, tap [Settings] - [Camera].
2. Set [HDMI Input] and [Touch Output] to [ON].
How to show the external equipment’s display
From the Home screen, tap the Camera icon. The external equipment’s display ap-
pears.
Pop-up menus
With the external equipment display shown, tap the menu icon ( ) at the top-right of
the screen. The pop-up menu shown below-right appears.
Move: Moves the menu icon. You can also long tap the
menu icon to move the icon. The icon changes to show
flashing arrows ( ), indicating that the icon can now be
moved. Drag the icon to the desired location, then tap the
icon. The flashing arrows disappear and the icon is an-
chored to the location.
Source: See section 10.3.3.
Stretch/Fit: See section 10.3.2.
Contrast/Brilliance: Not used with external equipment op-
eration.
Touch monitor TZT2BB
*: External equipment must be touch-operation capable.
USB
HDMI
USB
HDMI
External
equipment*
External equiment’s
User Interface
External equiment’s
User Interface
