Furuno RC-1800T - Rc-1800 F (400 W)

1.1 System configuration
1-2
1.1.2 RC-1800F (400W)
Controller
Unit
FS-5000C
Printer
PP-510
Inmarsat-C
Antenna Unit
IC-112
Printer
PP-510
DSC Terminal
DSC-60
NBDP Terminal
DP-6 & IB-581
Inmarsat-C
IC-212 & IB-581
AC/DC Power
Supply Unit
PR-850AR
AC/DC Power
Supply Unit
PR-300
Battery Charger
BC-6158
(For MOL Spec.
BC-6153A)
Antenna
Coupler
AT-5000
Transceiver
Unit
FS-5000T
Preamp
FAX-5
Whip Antenna
04S4176
Distress Alert
Unit IC-302
100/110/220 VAC, 1 φ , 50/60 Hz
220/440 VAC, 3
φ , 50/60 Hz
Battery 24 VDC
SSB Antenna
Distress Alert
Unit IC-302
Received Call
Unit IC-303
Stepdown transformer
PT-3000
(For 220/440 VAC 3
φ
to 100VAC)
(For DSC WR)
Printer I/F
IF-8500

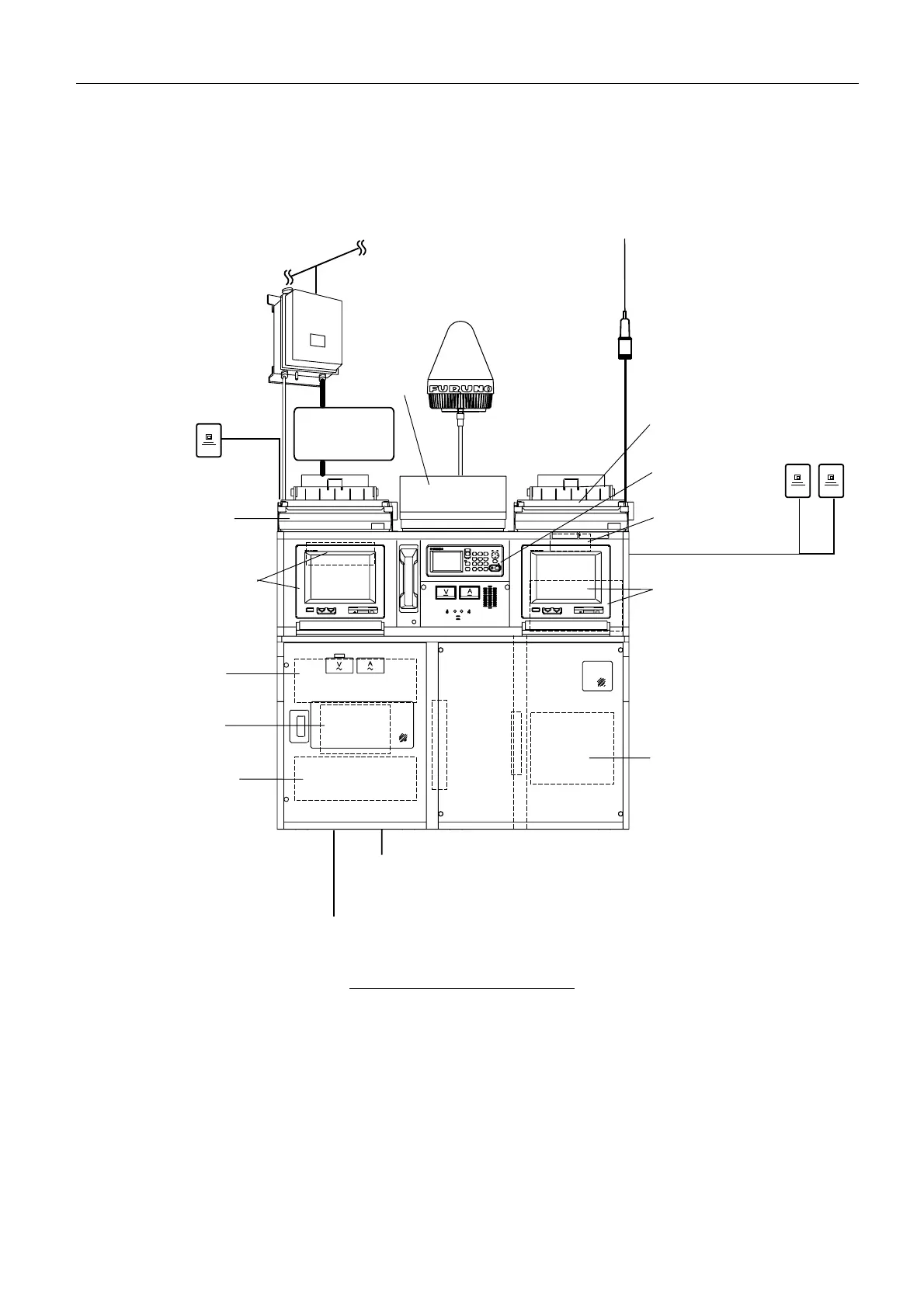

Fig.1.1.2 RC-1800F(400W)
