FUTABA 7PXR User Manual

15
Before Using
7KHVZLWFKHVGLDODQGWULPPHUVLQWKH¿JXUHDUHVKRZQLQWKHLQLWLDOVHWSRVLWLRQ
3OHDVHEHFDUHIXOQRWWRSXVKWKHVZLWFKWRR¿UPO\
Grip Handle
A vibration motor is built into the grip handle
and racing timer time-up, low battery alarm,
telemetry alarm, etc. It can be generated by
vibration.
Digital Dial (DL1)
/Push switch 6 (PS6)
Power switch
Display switch
Digital Trim 2 (DT2)
(default throttle trim)
Digital Trim1 (DT1)
(default steering trim)
Digital Trim4 (DT4)
Steering wheel
Push switch 2 (PS2)
Push switch 3 (PS3)
Push switch 4 (PS4)
LED
Touch screen LCD
NFC
Home button
Hook

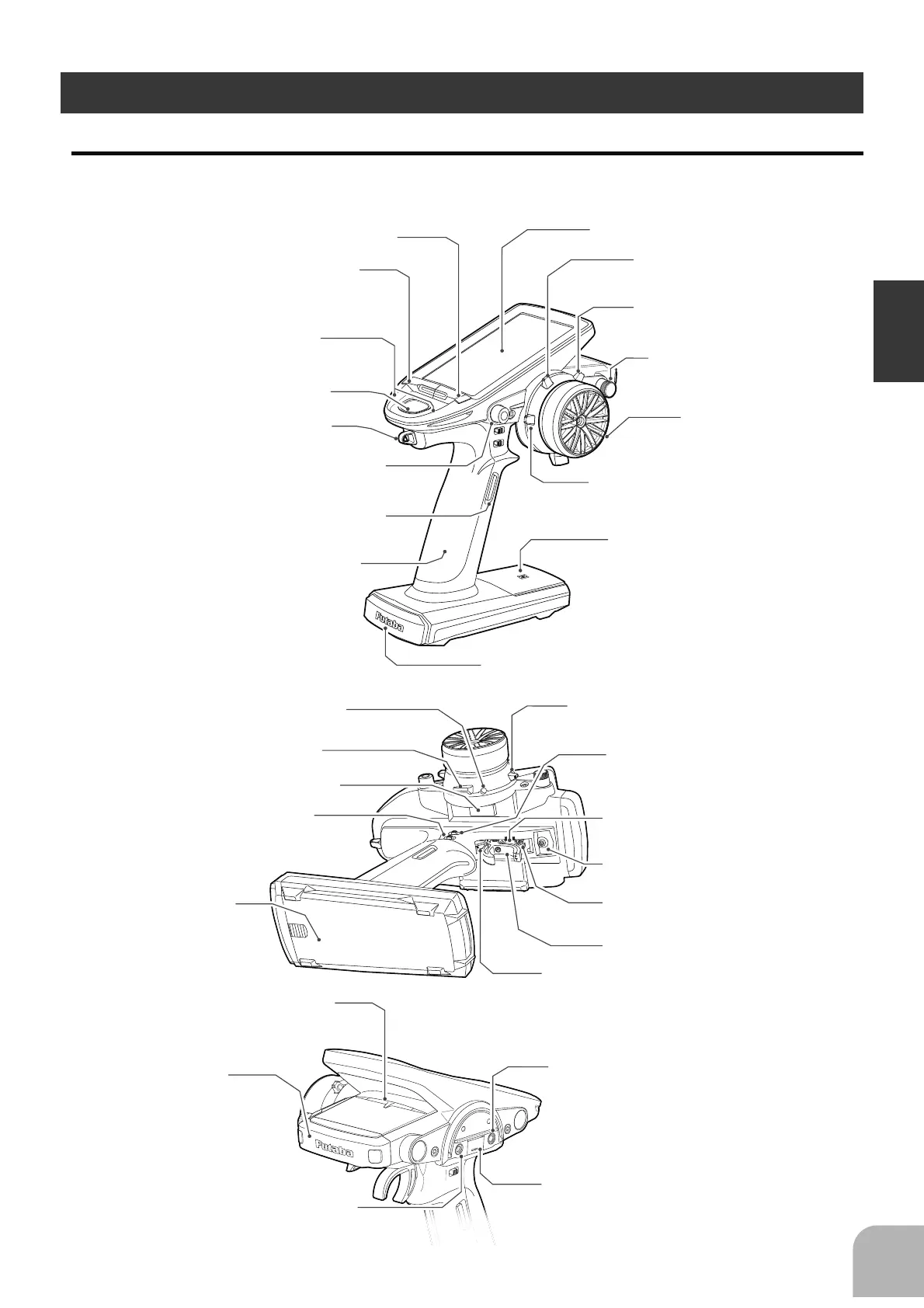

Nomenclature
Transmitter T7PXR
High point spring
Convenient in trigger switch position
checks.
Mechanical ATL
adjusting screw
Throttle trigger
Digital Trim3 (DT3)
Digital Trim5 (DT5)
(default dual-rate)
Push switch 1 (PS1)
Push switch 5 (PS5)
Digital Trim6 (DT6)
(default brake rate)
Wheel tension
adjusting screw
Trigger tension
adjusting screw
Battery cover
Trigger slide adjusting screw
Earphone Jack
(3.5mm stereo jack plug)
Telemetry data can be listened to with commer-
cial earphones.
Non-telemetry LED
(Lights when the telemetry function is off.)
Antenna
Cover
Communication port/SBus port
Charging jack

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
