FUTABA 7PXR User Manual

160
Function
Telemetry
This screen displays and sets the various information from the receiver. It is necessary to set
telemetry to the
(
21
)
SRVLWLRQZKHQXVLQJWHOHPHWU\IXQFWLRQVKRZSDJH7KHWHOHPHWU\
can be used in the THFSS system, but not in the THFSS-SR mode. An alarm and vibration
can be generated depending on the information. Each information screen sets the alarm and
the vibration. For example, a drop in the voltage of the receiver battery housed in the model
car can be reported by an alarm. The telemetry data received last is memorized. Therefore,
HYHQLIWKHUHFHLYHUSRZHULVWXUQHGR൵LQIRUPDWLRQGLVSOD\DXGLRJXLGHDQGDODUPVUHPDLQ
XQWLOWKHWUDQVPLWWHUSRZHULVWXUQHGR൵7KHVSHHFKIXQFWLRQFDQEHWXUQHGRQDQGR൵ZLWK
WKHVSHFL¿HGVZLWFK6HHWKH
"
6ZLWFKVHOHFW
"
IXQFWLRQSDJH

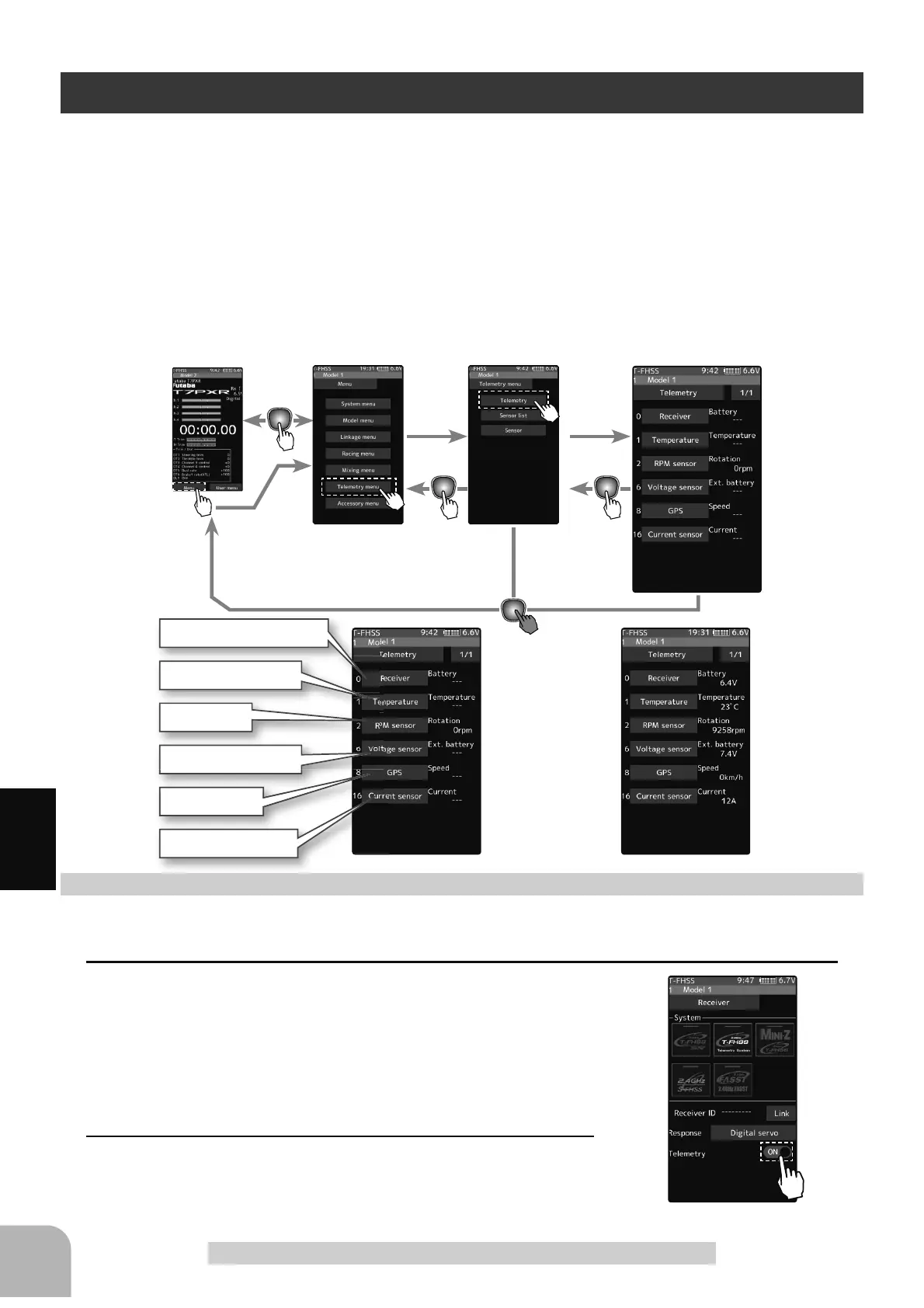

Telemetry
Home screen
Menu screen Accessory menu screen Telemetry
Receiver-Voltage display
Temperature display
EXT-Voltage display
Speed display
EXT-Current display
RPM display
Telemetry function ON
(Preparation)
The sensor used is connected with the receiver refers to the connection diagram of page 159.
1
(Function ON/OFF)
Tap telemetry (ON) or (OFF) to select ON/OFF.
"OFF": Telemetry function OFF
"ON": Telemetry function ON
Using Telemetry function
2
When finished, return to the Linkage menu screen by press-
ing the HOME button.

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
