FUTABA 7PXR User Manual

22
Before Using

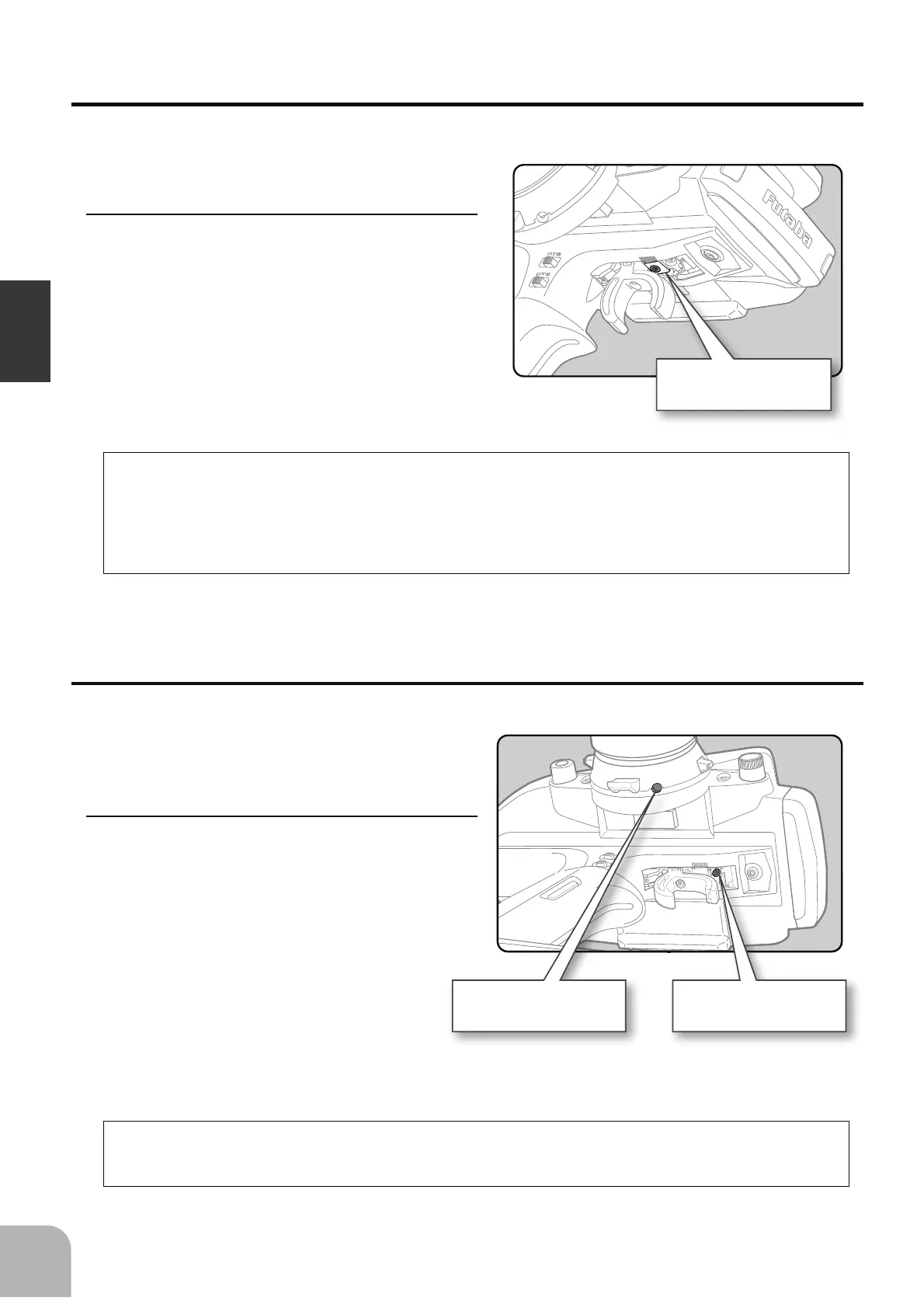

Mechanical ATL
adjusting screw
Adjustment
1
Using a 1.5mm hex wrench, adjust the trigger
brake (reverse) stroke. (The screw moves the
throttle trigger stopper.)
• When the screw is turned clockwise, the stroke becomes
narrower. Adjust the stroke while watching the screw.
Note:
Mechanical ATL Adjustment
0DNHWKLVDGMXVWPHQWZKHQ\RXZDQWWRGHFUHDVHWKHVWURNHRIWKHEUDNHEDFNVLGHRIWKH
throttle trigger for operation feel.
Wheel & Trigger Tension Adjustment
0DNHWKLVDGMXVWPHQWZKHQ\RXZDQWWRFKDQJHWKHZKHHORUWULJJHUVSULQJ¶VWHQVLRQ
Adjustment
1
Using a 1.5mm hex wrench, adjust the wheel
spring tension by turning the screw inside the
adjusting hole.
- The spring is set to the weakest tension at the factory.
- When the adjusting screw is turned clockwise, the spring
tension increases.
Note:
Wheel tension
adjusting screw
2QFH\RXKDYHFKDQJHGWKHPHFKDQLFDOVWURNHRQWKHEUDNHVLGHEHVXUHWRDGMXVWWKH
scale of the throttle channel accordingly by using the
"
Calibration Function
"
SDJH
Due to this change, you also need to adjust, in most cases, the travel rate of the throttle
VHUYRRU(6&E\XVLQJ
"
End point Setting
".
7KHDGMXVWPHQWUDQJHLVXSWRWRWXUQVIURPWKHIXOO\WLJKWHQHGVWURQJHVWSRVLWLRQ,I
WXUQHGIDUWKHUWKDQWKLVWKHDGMXVWLQJVFUHZPD\IDOORXW
Trigger tension
adjusting screw

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
