FUTABA 7PXR User Manual

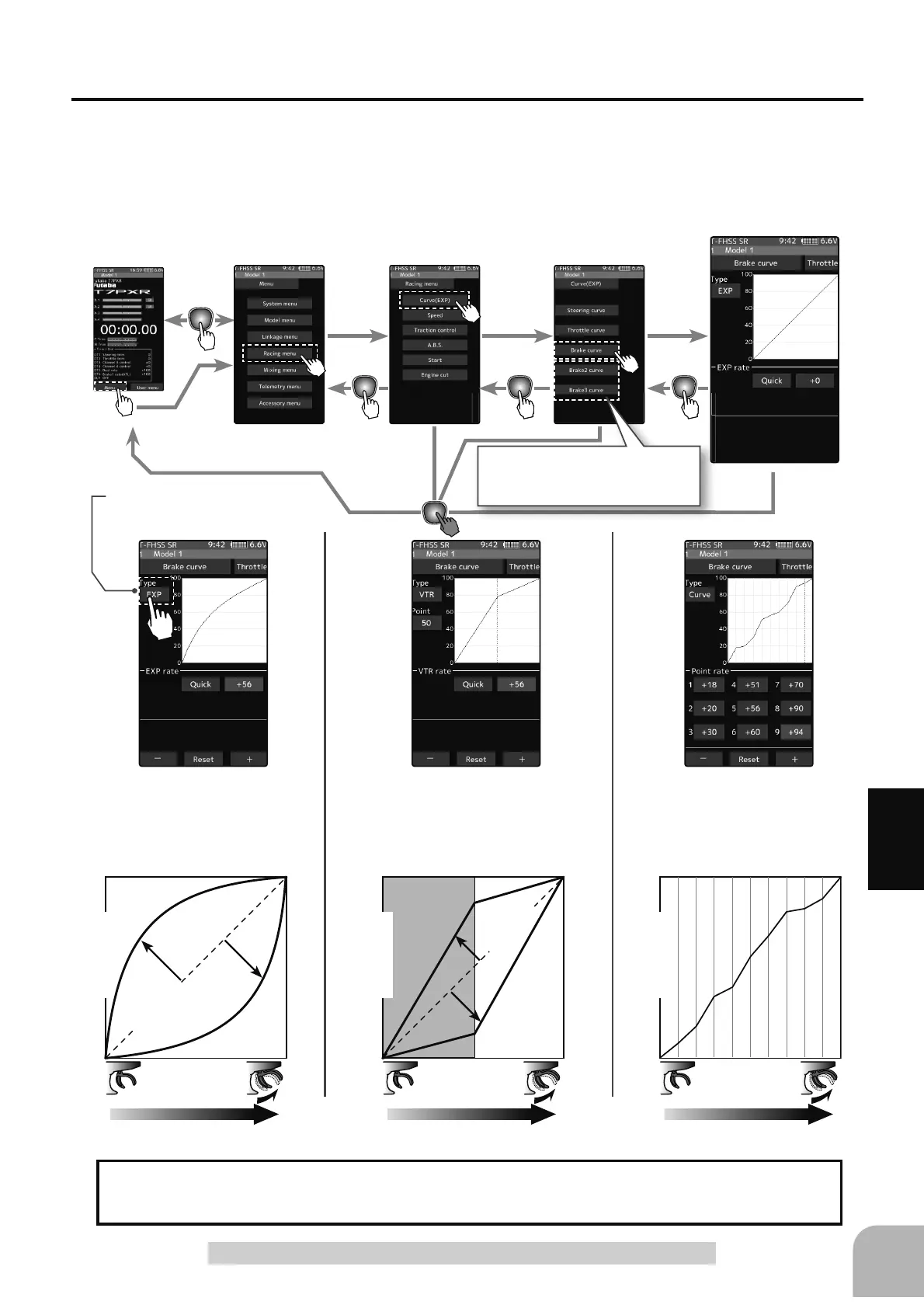

Home screen
Menu screen Racing menu screen Curve screen
Brake curve
* Tap the type to switch the
curve type.
EXP curve screen
Curve type which operates the
throttle from the neutral point to
the full brake point on a curved
curve.
Curve screen
Curve type which sets 9 points
between the throttle neutral point
and full brake and operates the
throttle.
VTR curve screen
Curve type which sets the switching point
between the throttle neutral point and full
brake point and operates the throttle on a
linear curve.
0%
Normal
0%
Normal
+1% ~ +100%
+1% ~ +100%
Trigger operation Trigger operation Trigger operation
-1% ~ -100%
-1% ~ -100%
Mild Mild
Servo travel Servo travel Servo travel
When brake mixing (page 110)
is used, brakes 2 and 3 are dis-
played.
87
Function
Curve (EXP)
Brake curve
This function makes the servo operation on the brake side faster or gentler. It does not af-
fect the maximum servo movement. The selection from among three kinds of curves (EXP/
975&XUYHLVDOVRSRVVLEOH,IWKH5DWLRLVVHWWRZLWKWKHWULJJHUIXQFWLRQSDJH
WKHEUDNHVLGHZLOOQRWRSHUDWH6LQFHWKHVHWWLQJPHWKRGRIHDFKFXUYHLVWKHVDPHDVWKH
WKURWWOHIRUZDUGVLGHFXUYHSOHDVHUHDGSDJHVWR
Curve (EXP)
7KHEUDNH(;3975DGMXVWPHQWFDQEHFRQWUROOHGZLWKGLJLWDOWULP '7 WR '7 RU
GLJLWDOGLDO'/HWFZLWKWKHWULPGLDOVHOHFWIXQFWLRQSDJH
Trim/Dial Setting

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
