FUTABA 7PXR User Manual

Battery cover
6OLGHEDWWHU\FRYHUZKLOHSUHVVLQJKHUH
17
Before Using
Caution
When closing the battery cover, be careful that the battery cover does not pinch the battery lead wires.
Shorting of the battery lead wires may lead to fire and abnormal heating and cause burns or fire disaster.

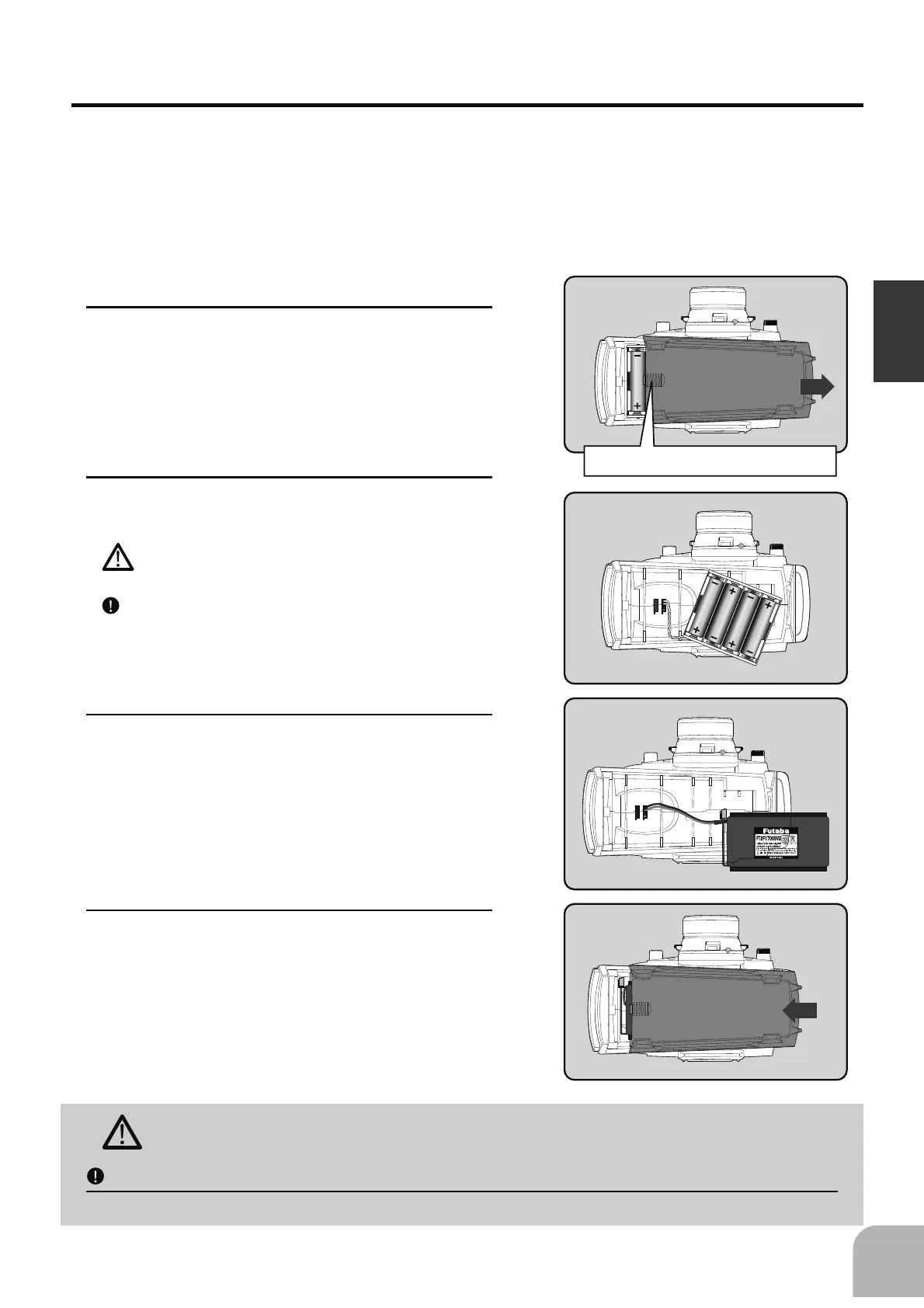

Battery Replacement Method
1
Refer to the previous description and remove
the transmitter battery cover.
When Using The Optional Battery
:KHQXVLQJDQRSWLRQDOUHFKDUJHDEOHEDWWHU\UHSODFHWKHEDWWHU\DVGHVFULEHGEHORZ
$OZD\VXVHWKHRSWLRQDO)7)%)7)%9)7)%9RU+7)%UH-
chargeable battery.
7KHW\SHRISRZHUVRXUFHXVHGPXVWEHVHOHFWHGWKURXJKWKHV\VWHPVHWWLQJSDJH
:KHQWKHWUDQVPLWWHUZLOOQRWEHXVHGIRUDORQJWLPHUHPRYHWKHEDWWHU\
2
After removing the dry cell battery box from the
transmitter, disconnect the connector.
Caution
If you remove the dry cell battery box from the transmit-
ter, replace it carefully with the wiring on the same side
as before. Reinstalling the battery box in the opposite
direction could cause the wires to be disconnected.
3
Insert the connector of the new battery and load
the new battery into the transmitter.
4
Finish by installing the battery cover.

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
