FUTABA 7PXR User Manual

WARNING
Install the antenna in the higher place, as shown in the figure.
Do not cut or bundle the receiver antenna wire.
Do not bend the coaxial cable. It causes damage.
Do not pull the receiver antenna or coaxial cable by force.
Keep the antenna as far away from the motor, ESC, and other noise sources as you possibly can.
Wrap the receiver with something soft, such as foam rubber, to avoid vibration. If there is a chance of get-
ting wet, put the receiver in a waterproof bag or balloon.
Antenna
Antenna
Antenna
Cap
Coaxial cable
Antenna tube
Antenna tube
Coaxial cable
Link switch/LED
Connectors
4: CH4 servo(CH4)
3: CH3 servo(CH3)
2: Throttle servo(CH2)
1: Steering servo(CH1)
S.BUS2 :
Power/S.BUS2 connector
Connectors
4: CH4 servo(CH4)
3: CH3 servo(CH3)
2: Throttle servo(CH2)
1: Steering servo(CH1)
S.BUS2 :
Power/S.BUS2 connector
The receiver power supply can be connected to the S.BUS2 connector or each of CH1-4.
Antenna
Link switch/LED

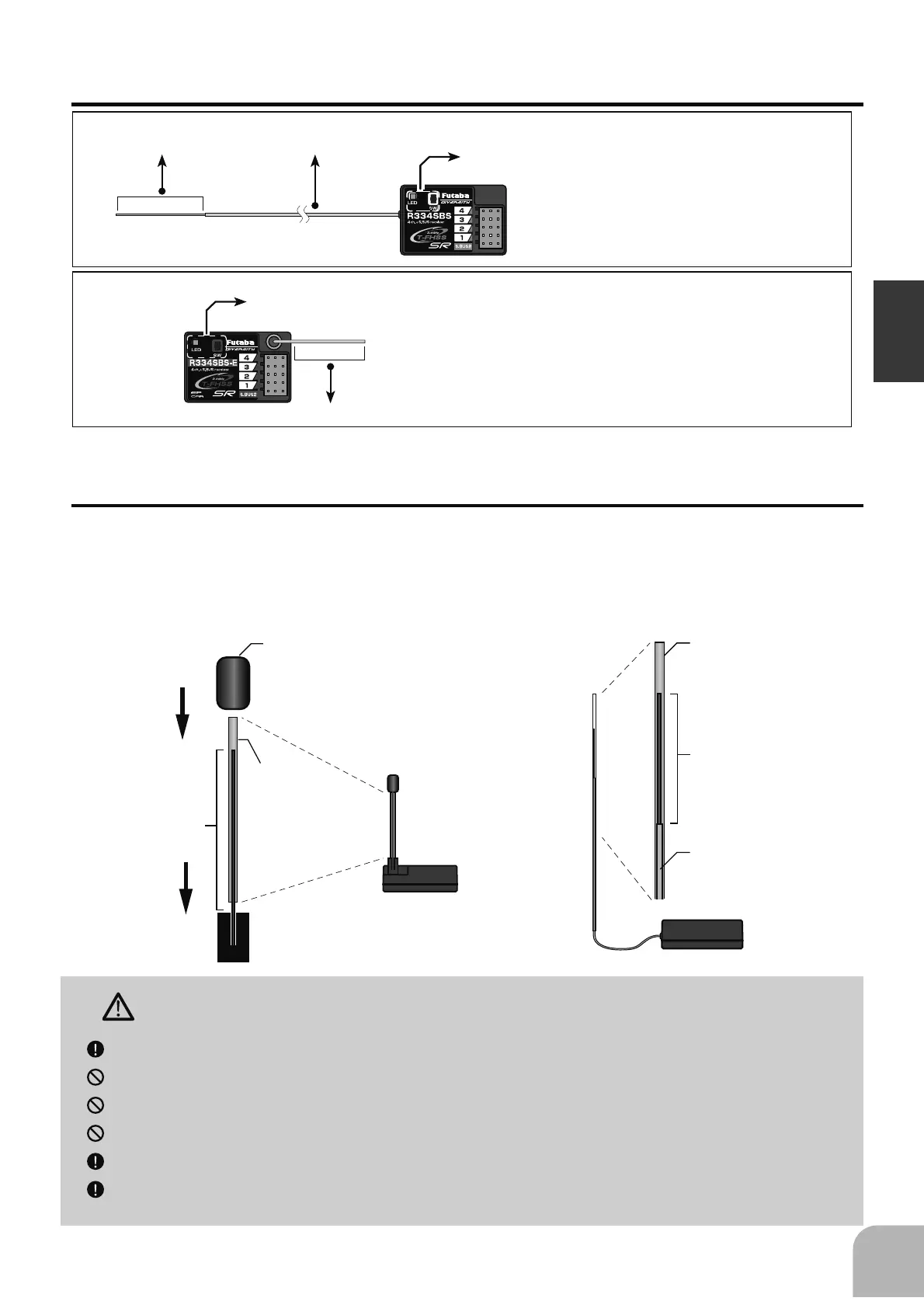

Receiver Installation
,QVWDOOWKHUHFHLYHURQWKHFDUDVIROORZV
NOTE: The operating range may be reduced, depending on where the receiver and the antenna are mounted.
NOTE: Put the antenna in the antenna tube to protect it. Do not let the tip go outside.
NOTE:
It is a receiver of diversity type with both external and internal antennas. Do not place wiring or other objects on the plate. The
receiving range may be affected.
Receiver Terminology
R334SBS
R334SBS
R334SBS-E
R334SBS-E
31
Before Using

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
