FUTABA 7PXR User Manual

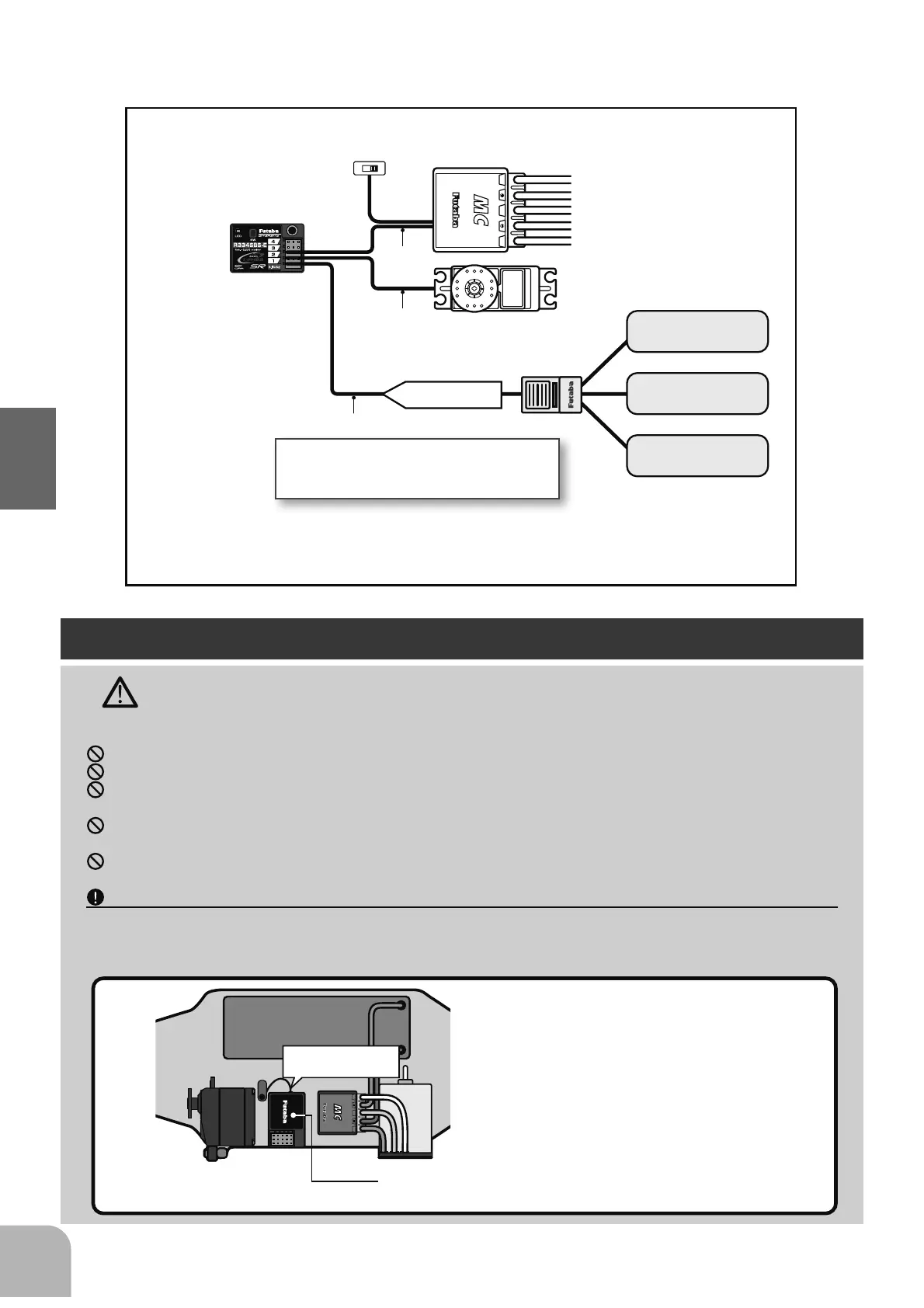

Connection example of S. BUS using a telemetry sensor
Warning
Receiver (receiver antenna)
Do not cut or bundle the receiver antenna wire.
Do not bundle the receiver antenna wire together with the motor controller lead wire.
Keep the receiver antenna wire at least 1cm away from the motor, battery, and other wiring carrying
heavy current.
Do not use a metal receiver antenna holder on a plate made of metal, carbon, or other conductive mate-
rial.
Since the antenna of built-in antenna receivers is installed under this, do not place wiring or other objects
on it.
Install the antenna holder of the receiver near a receiver as much as possible.
If the antenna wire is cut, bundled, or routed near a noise source, the receiving sensitivity will drop, the running (cruising) range
will decrease, and you may lose control of the model.
1RLVHLVWUDQVPLWWHGWKURXJKPHWDOFDUERQDQGRWKHUFRQGXFWLYHPDWHULDOVRNHHSWKHUHFHLYHUDQWHQQDZLUHDZD\IURPVXFKSDUWV
Receiver
ESC
$&%
Each telemetry sensor is connected
to the S.BUS 2 port collectively with a
hub or double extention cable.
Switch
Note
:
In SR mode, the S.BUS 2 port cannot be used other than battery input.
The telemetry system can only be used with TFHSS.
CH1
CH2
S.BUS2
S.BUS2
Telemetry sensors
(Option)
Temperature
sensor
RPM sensor
Voltage sensor
#%$
,QVWDOO WKH UHFHLYHU DVIDU DZD\DVSRVVLEOH IURP WKH
battery, motor controller, motor, silicon cord, and oth-
HUQRLVHVRXUFHV.HHSLWDZD\IURPWKHDQWHQQDZLUH
in particular.
7KHH[DPSOHLQWKH¿JXUHLVIRU56%67KH5
SBS-E places the antenna holder on the top of the
case.
Since the antenna of built-in antenna receivers is installed
XQGHUWKLVGRQRWSODFHZLULQJRURWKHUREMHFWVRQLW
Battery
Antenna
34
Installation
Installation Safety Precautions

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
