Warning

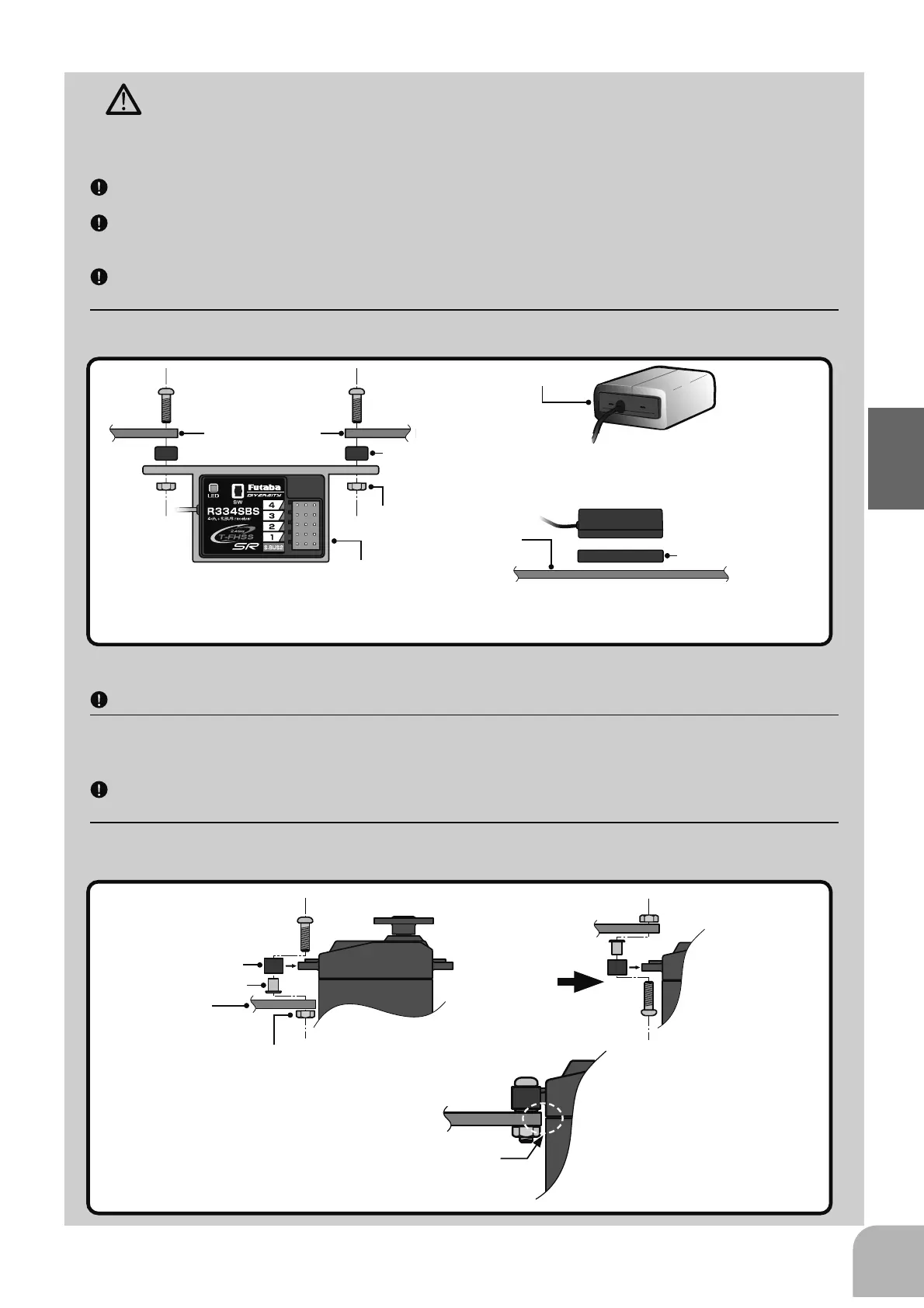

Receiver Vibration-proofing/Waterproofing
(Car)
Vibration-proof the receiver by wrapping it in foam rubber or other vibration-absorbing material and mount
it with thick double-sided tape.
When using the receiver holder supplied with the model kit, mount the holder to the chassis through a
rubber grommet.
(Boat)
Wrap the receiver with foam rubber or other vibration-absorbing material to protect against vibration.
Also, waterproof the receiver by cruising it in a plastic bag.
If the receiver is exposed to intense vibration and shock or the ingression of water, it may not operate correctly, and you may lose
control of the model.
Connector Connections
Be sure the receiver, servo, battery, and connectors are fully and firmly connected.
If vibration from the model causes a connector to work loose while the model is in operation, you may lose control .
Servo Installation
When you install the servos, always use the rubber grommets provided in servo hardware bags. Mount
the servos so they do not directly come in contact with the mount.
If the servo case comes in direct contact with the mount, vibration will be directly transmitted to the servo.
If this condition continues for a long time, the servo may be damaged, and control will be lost.
Screw
Mechanical plate
Nut (as required)
Eyelet
Damper
(or)
:KHQLQVWDOOLQJWKHVHUYRDOZD\VLQVWDOOWKHDFFHVVRU\
UXEEHUJURPPHWDQGJURPPHWÀXVKDJDLQVWWKHVHUYR
$YLEUDWLRQGDPSLQJH൵HFWLVQRWREWDLQHGLIWKH
rubber grommet and grommet are not installed
correctly.
Screw
Nut (as required)
Receiver holder
Damper
:KHQXVLQJWKHUHFHLYHUKROGHUVXSSOLHG
ZLWK WKH NLWLQVWDOO WKHUHFHLYHU WKURXJK D
rubber grommet.
Foam rubber, etc.
:UDSWKH UHFHLYHU LQ IRDP UXEEHURURWKHUYLEUDWLRQ
absorbing the material. Do not use the hard type. Solid
PDWHULDOGRHVQRWKDYHDYLEUDWLRQSURR¿QJH൵HFW
Mechanical plate
Thick double-sided tape
:KHQ PRXQWLQJ WKH UHFHLYHUZLWK GRXEOHVLGHGWDSH
GRQRWXVHDVWL൵WDSH6WL൵WDSHGRHVQRWKDYHDYLEUD-
WLRQSURR¿QJH൵HFW
Mechanical plate
35
Installation
