FUTABA 7PXR User Manual

Adjustment buttons
- Adjust with the [+] and [-] but-
tons.
- Return to the initial value by
tapping the [reset] buttons.
154
Function
Roll Out Chart
Roll Out Chart
This function is designed for pan cars. The roll out chart can be calculated from input val-
ues for the number of teeth of the spur gear and pinion gear, and the tire diameter, and dis-
played as a table.
1
(Setting of a step of the tire diameter input)
Tap the value button of the [Step]. Value
input buttons appear on the screen. Use
the [+] and [-] buttons to set the Step of the
numerical input value of the tire diameter
amount.
- The step amount can be set in the range of 0.1-mm
to 1.0-mm.
2
(Setting of number of teeth of spur gear)
Tap the value button of the [Spur]. Value input buttons appear on the screen. Use the [+] and [-]
buttons to set the spur gear. The roll out is then calculated, and the list is updated.
3
(Setting of number of teeth of pinion gear)
Tap the value button of the [Pinion]. Value input buttons appear on the screen. Use the [+]
and [-] buttons to set the pinion gear. The roll out is then calculated, and the list is updated.
4
(Setting of tire diameter)
Tap the value button of the [Diameter]. Value input buttons appear on the screen. Use the [+]
and [-] buttons to set the tire diameter. The roll out is then calculated, and the list is updated.
5
When finished, return to the Accessory menu screen by pressing the HOME button.

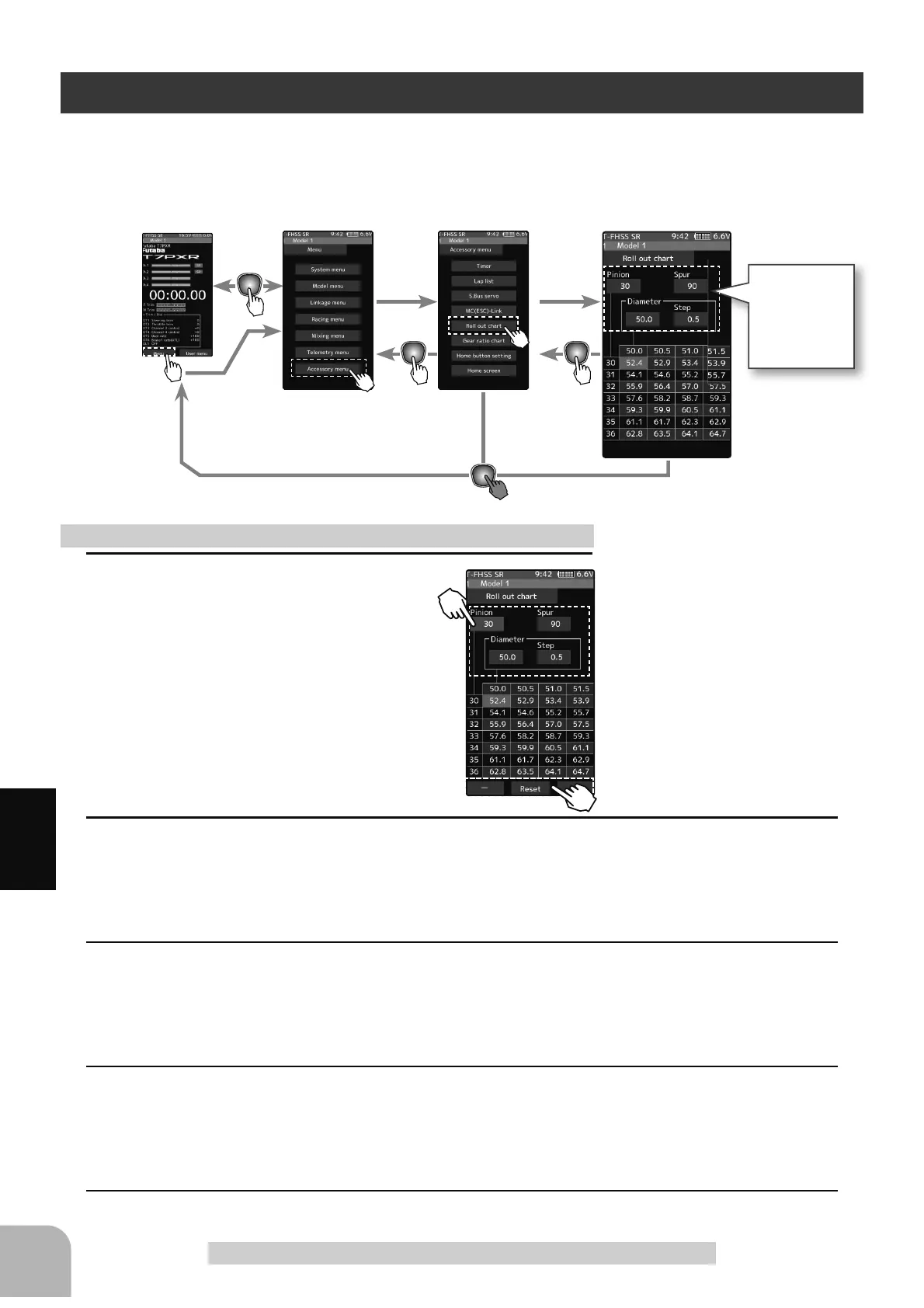

Use of Roll out chart function
Home screen
Menu screen Accessory menu screen Roll out chart
Setup item
Pinion
Spur
Step
Diameter

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
