FUTABA 7PXR User Manual

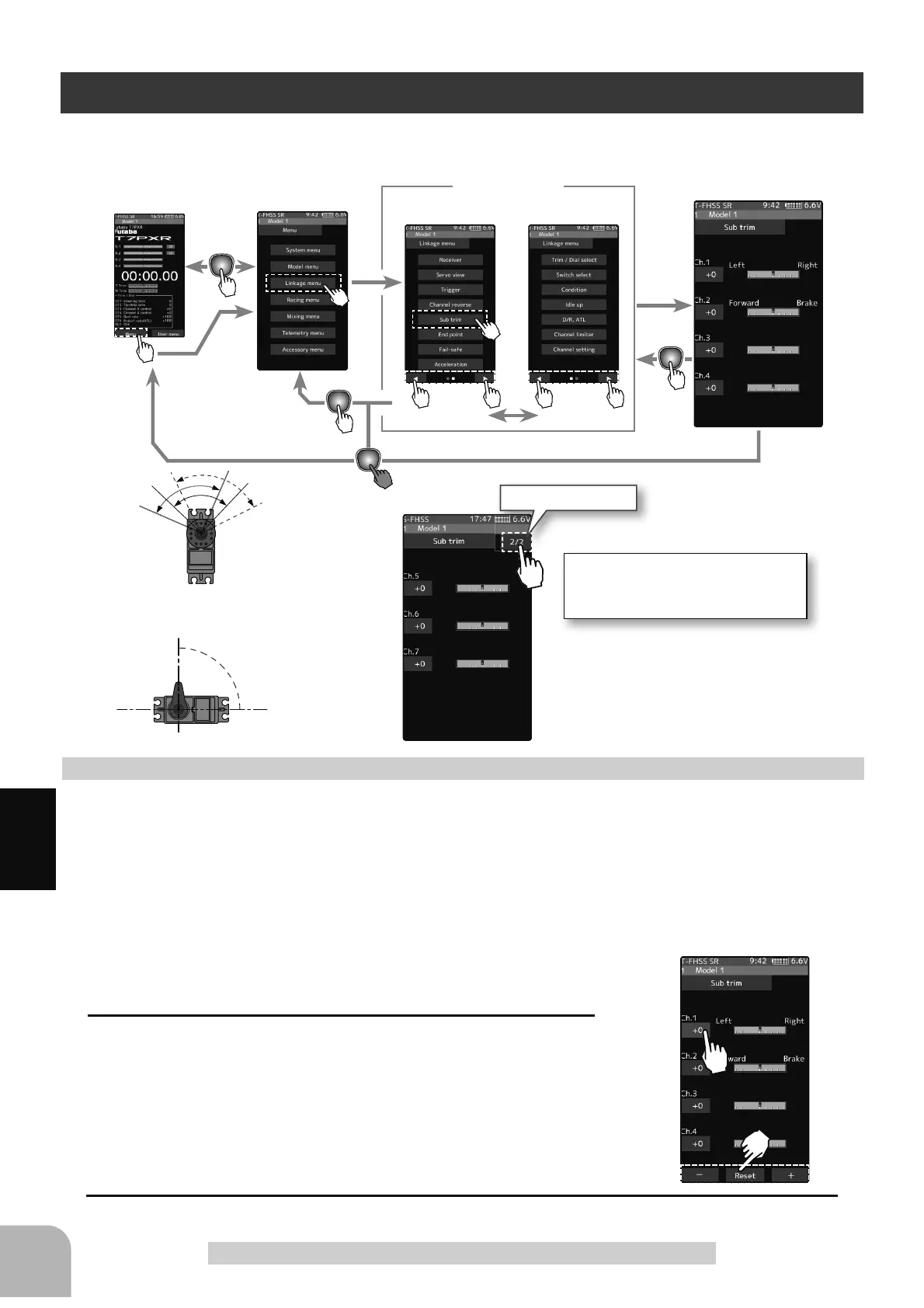

Home screen
Menu screen
Menu-2
Menu-1
Linkage menu
Sub trim
For the S-FHSS (analog) system,
channels 5, 6, and 7 are displayed
on the 2nd page.
Tap to change page.
56
Function
Sub Trim
90deg
8VHWKLVIXQFWLRQWRDGMXVWWKHQHXWUDOSRVLWLRQRIWKHV teering, throttle, channel 3, chan-
nel 4, and auxiliary channels
servos.
(Preparation)
- Follow the instructions of the model, install the servo horn, and
make the next adjustment.
- Set the steering and throttle digital trims to the neutral "0" posi-
tion. Set auxiliary channels to the center "0" position.
- Tap the trim display part of the channel you want to adjust.
Value input buttons appear on the Sub-trim menu screen.
1
(Sub trim adjustment)
Use the [+] or [-] button to adjust the center.
(Each channel can be set similarly.)
Sub trim adjustment
Use to adjust the neutral position
*Sub trim adjusts the entire range of
the servo in the set direction.
Sub Trim
Adjustment buttons
- Adjust with the [+] and [-] but-
tons.
- Return to the initial value by
tapping the [reset] buttons.
Sub trim
-100~+100
Initial value: 0
2
When finished, return to the Linkage menu screen by pressing the HOME button.

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
