FUTABA 7PXR User Manual

Home screen
Menu screen
Menu-2
Menu-1
Mixing menu

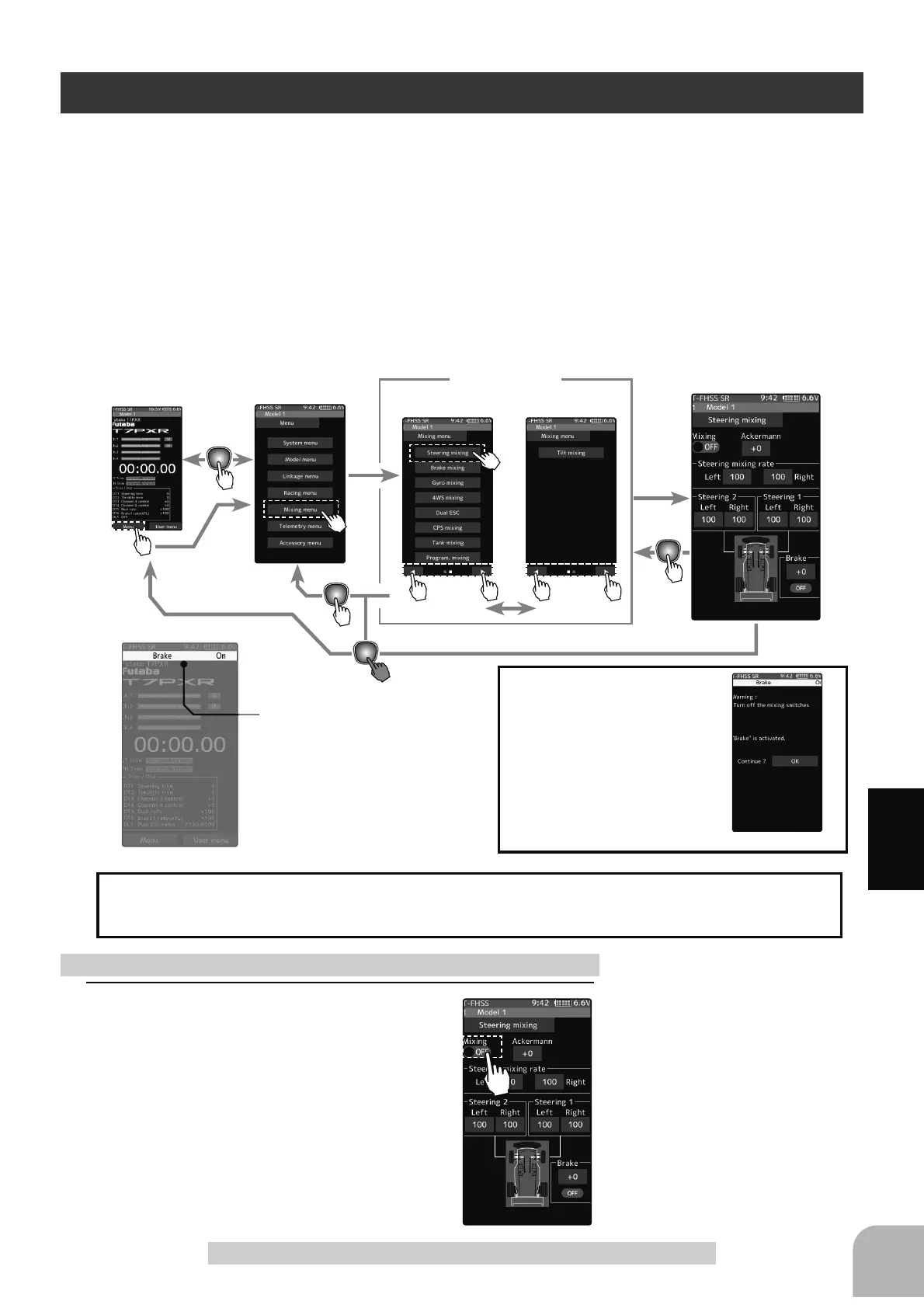

Steering mixing
Warning display
,IWKHSRZHUVZLWFKLV
WXUQHGRQZKLOHWKH
VWHHULQJEUDNHVZLWFK
is on, an audible alarm
ZLOOEHKHDUG,PPHGL
-
ately set the engine cut
VZLWFKWR2))
Steering brake ON/OFF is indi-
cated on the home screen for a
few seconds.
Setting
- Tap (ON)/(OFF).
107
Function
Steering Mixing
7KLVPL[LQJIXQFWLRQXVHVWZRVHUYRVWRLQGLYLGXDOO\FRQWUROWKHOHIWDQGULJKWVWHHULQJ/HIW
and right steering can be set independently, so smooth cornering is possible. By using the
"
Steering mixing rate
"
function, the motions of the servos on the left and right sides of the
steering can be adjusted at the same time. The right side steering servo or the left side steer
-
ing servo connects to receiver channel 1, and the other side connects to receiver auxiliary
FKDQQHOV7KHFKDQQHOWRZKLFKWKHOHIWDQGULJKWVHUYRFRQQHFWLVQRWVSHFL¿HG$IWHUWKH
left and right servos are adjusted individually, Ackerman can also be adjusted by the Ack
-
erman rate. Also, the left and right steering are operated in the opposite direction by the
VZLWFK$QHPHUJHQF\EUDNHIXQFWLRQE\VWHHULQJFDQDOVREHVHW
Steering Mixing
The mixing function is assigned to auxiliary channels used by another mixing cannot be
XVHG:KHQWKHQXPEHURIFKDQQHOVLVLQVX൶FLHQWFDQFHOWKHRWKHUPL[LQJ
1
(Function ON/OFF)
Tap "Mixing" (ON) or (OFF) to select ON/
OFF.
"OFF": Mixing function OFF
"ON": Mixing function ON
Steering mixing adjustment

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
