FUTABA 7PXR User Manual

3OHDVHDGMXVWLWZLWKLQWKH
range of mark.
High point spring can be removed
with radio pliers, etc.
Trigger slide
mounting screw
2.0x6 cap crew
23
Before Using
Adjustment
1
Using a 2.0mm hex wrench, loosen the trigger slide mounting screw by turning it slightly
counterclockwise.
Always loosen this screw.
2
Adjust the trigger slide position within the
marked range.
The high point spring can be removed by moving to
the farthest from the grip.
When the high point spring is removed, perform throt-
tle side correction by calibration function (page 191).
3
Retighten the mounting screw loosened at
step 1 and fastened the trigger slide.
Note:
 ,I WKH WULJJHU VOLGH VFUHZ LV WXUQHG WRR
PXFKWKHVFUHZPD\IDOORXW

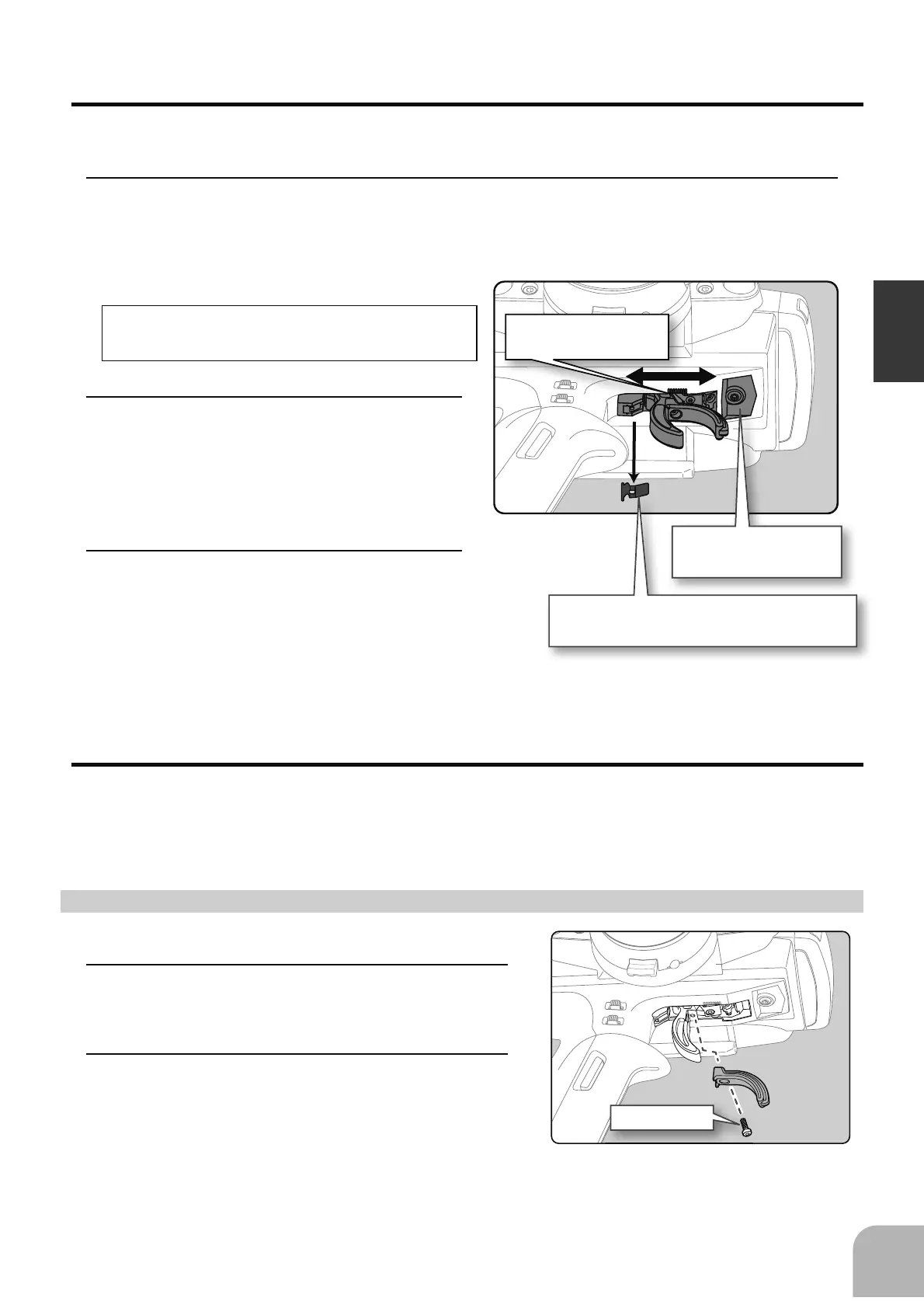

Trigger Slide Adjustment & Remove The High Point Spring
7KHWKURWWOHWULJJHUSRVLWLRQFDQEHPRYHGIRUZDUGDQGEDFNZDUG
Trigger brake lever replacement
<RX FDQ UHSODFH WKH WULJJHUEUDNH OHYHU ZLWK WKH LQFOXGHG'WULJJHU EUDNH OHYHU &KRRVH
IURP/W\SHDQG5W\SH
:KHQWKHEUDNHOHYHULVFKDQJHGSHUIRUPWKURWWOHVLGHFRUUHFWLRQE\&DOLEUDWLRQIXQFWLRQSDJH
1
Hold the trigger, remove the brake lever mounting
screw using the 1.5mm hex wrench, and remove
the brake lever.
2
Using the 1.5mm hex wrench
,
install 3D trigger
brake lever with the brake lever mounting screw.
Obtain a 1.5mm hex wrench. Remove the battery
from the transmitter.
Brake lever replacement

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
