FUTABA 7PXR User Manual

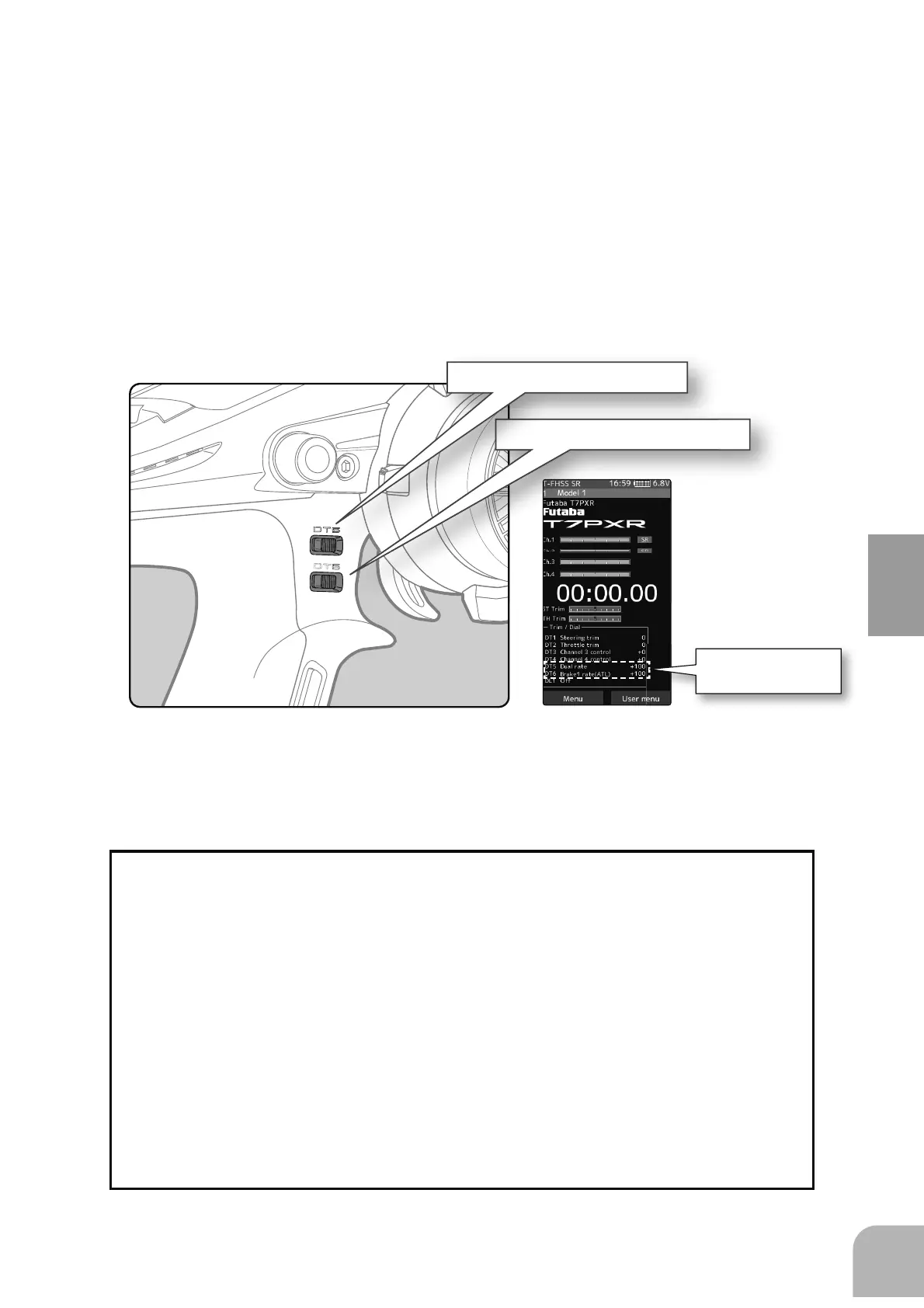

Steering dual rate DT5
Brake rate (Brake1) DT6
Steering dual rate
Brake rate
45
Initial Set-Up
- Steering dual rate (DT5) check
$WWKHLQLWLDOVHWXSWKH6WHHULQJ'XDO5DWH'5LVDVVLJQHGWRWKH'7WULPOHYHUDWWKH
JULSRIWKHWUDQVPLWWHU2SHUDWHWKH'7DQGFKHFNLIWKH'5YDOXHGLVSOD\HGRQWKHVFUHHQ
FKDQJHV$IWHUWHVWLQJVHWWKH6WHHULQJ'XDO5DWHWR
- Brake rate (DT6) check
$WWKHLQLWLDOVHWWLQJWKH%UDNH5DWH%UDNHUDWHLVDVVLJQHGWRWKH'7WULPOHYHUDWWKH
JULSRIWKHWUDQVPLWWHU2SHUDWHWKH'7DQGFKHFNLIWKH%UDNHUDWHYDOXHGLVSOD\HGRQWKH
VFUHHQFKDQJHV$IWHUUHYLHZLQJVHWWKH%UDNH5DWHWR
(Set-Up Procedure When Installed In a Car)
:KHQLQVWDOOLQJWKHVHUYRVLQDFDUSHUIRUPLQJIXQFWLRQVHWXS LQ WKH IROORZLQJ RUGHU LV
recommended.
1
Initialize all the trims to zero/dual rate and brake rate to 100.
2
Set the servo direction of operation using the Reverse function. (page 55)
- The servo installation method and linkage direction depend on the kit. Therefore, the servo operation direc-
tion may have to be reversed relative to transmitter operation. Before installing the servo, check the operat-
ing direction and set it using the Reverse function.
3
Set the Sub Trim and adjust the servo neutral point. (page 56)
4
Set the trigger travel by adjusting the Throttle Trigger Mechanical ATL to your
liking. (page 22)
:KHQWKHVWURNHZDVDGMXVWHGFRPSHQVDWHWKHWKURWWOHE\FDOLEUDWLRQIXQFWLRQSDJH
5
Set the End Point of each channel and adjust the servo throw (travel). (page 57)

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
