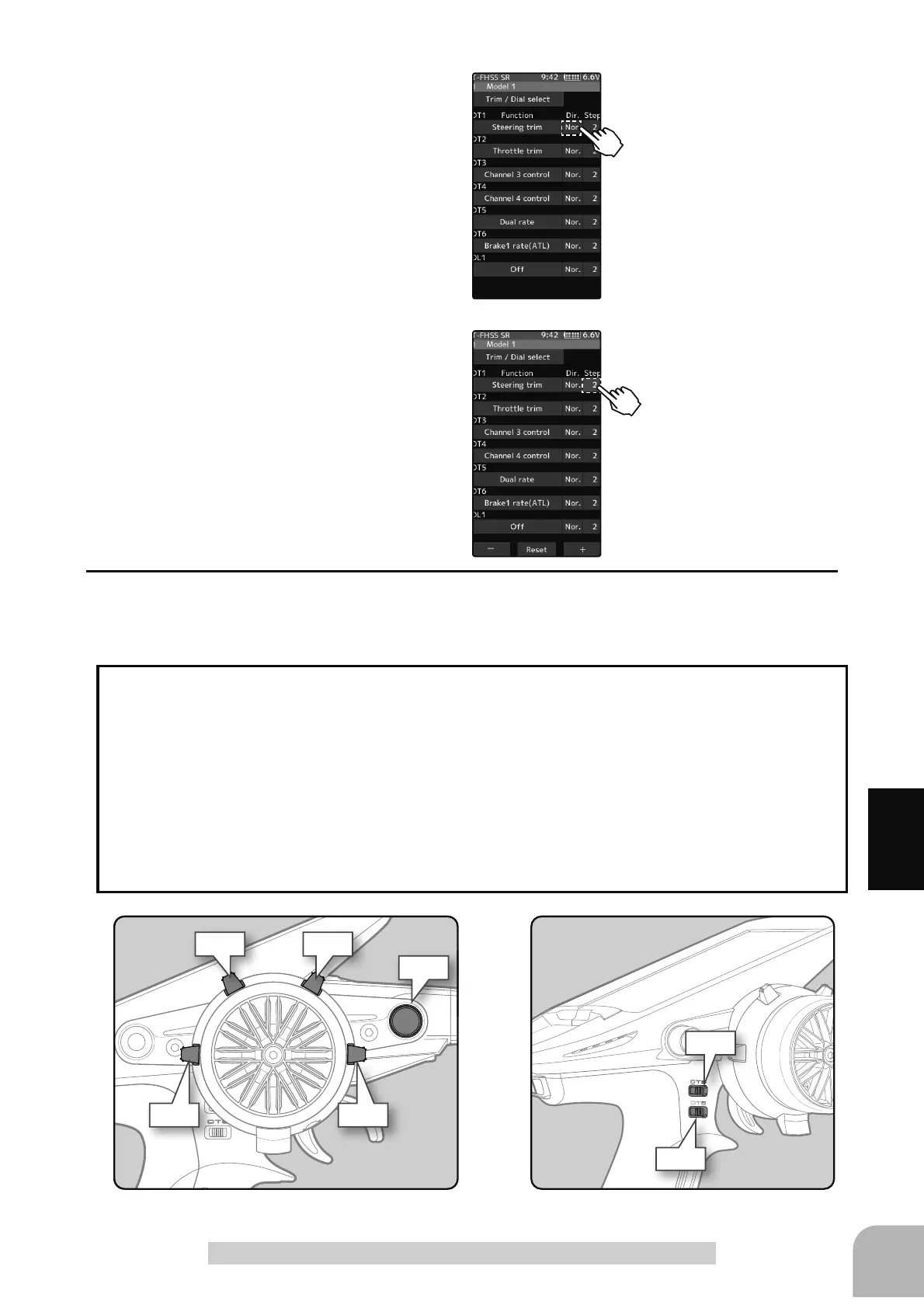

FUTABA 7PXR User Manual

Setting direction
- Tap [Nor.]/[Rev.].
(Nor.) Normal/(Rev.) Reverse
DT5
DT6
DT1
DL1
DT2
DT4 DT3
69
Function
Trim/Dial Select
(Changing the operation direction)
Tap [Nor.] or [Rev.] in the direction to set the
direction.
(Changing the operation step amount)
Tap the travel button of the [step]. Value in-
put buttons appear on the screen and use
the [+] and [-] buttons to adjust the step
amount.
3
When finished, return to the Linkage menu screen by pressing the HOME button.
Adjust button
Adjust with the [+] and [-] but-
tons.
- Return to the initial value by
tapping the [reset] buttons.
Step range
1, 2, 5, 10, 20, 30, 40, 50, 100,
200
Initial value: 2
(Setting range: 1, 2, 5, 10, 20, 30, 40, 50, 100, 200)
-Steering trim/throttle trim
When set to the minimum "1", the total trim operating width is 200 clicks. For "100", the total operating width is 2
clicks and for 2PS, the total operating width is 1 click.
-Rate, etc. setting
This is the % value which is operated by 1 click relative to the set value of each rate. Since the total operating
width of functions having a rate of -100~0~+100 is 200%, when set to "100", the total operating width is 2 clicks.
Since the total operating width of functions with a 0~100 rate is 100%, "100" and "200" are operated by 1 click.
-Auxiliary channel
When set to the minimum "1", the total operating width of channel 3 is 200 clicks. For "100", the total operating
with is 2 clicks and "200" is operated by 1 click.
Relationship between the set value and step amount

FUTABA 7PXR Specifications

General

Model	7PXR
Category	Remote Control
Channels	7
Frequency	2.4GHz
Telemetry	Yes
Model Memory	40
Display	Color LCD
Battery	6.6V
Compatibility	S-FHSS
Receiver	R334SBS
