Gantner GT7.2x00 Installation/Configuration

GT7 Terminal
Configuration
36 HB_GT7-2x00-3x00--EN_12 www.gantner.com
WLAN Settings

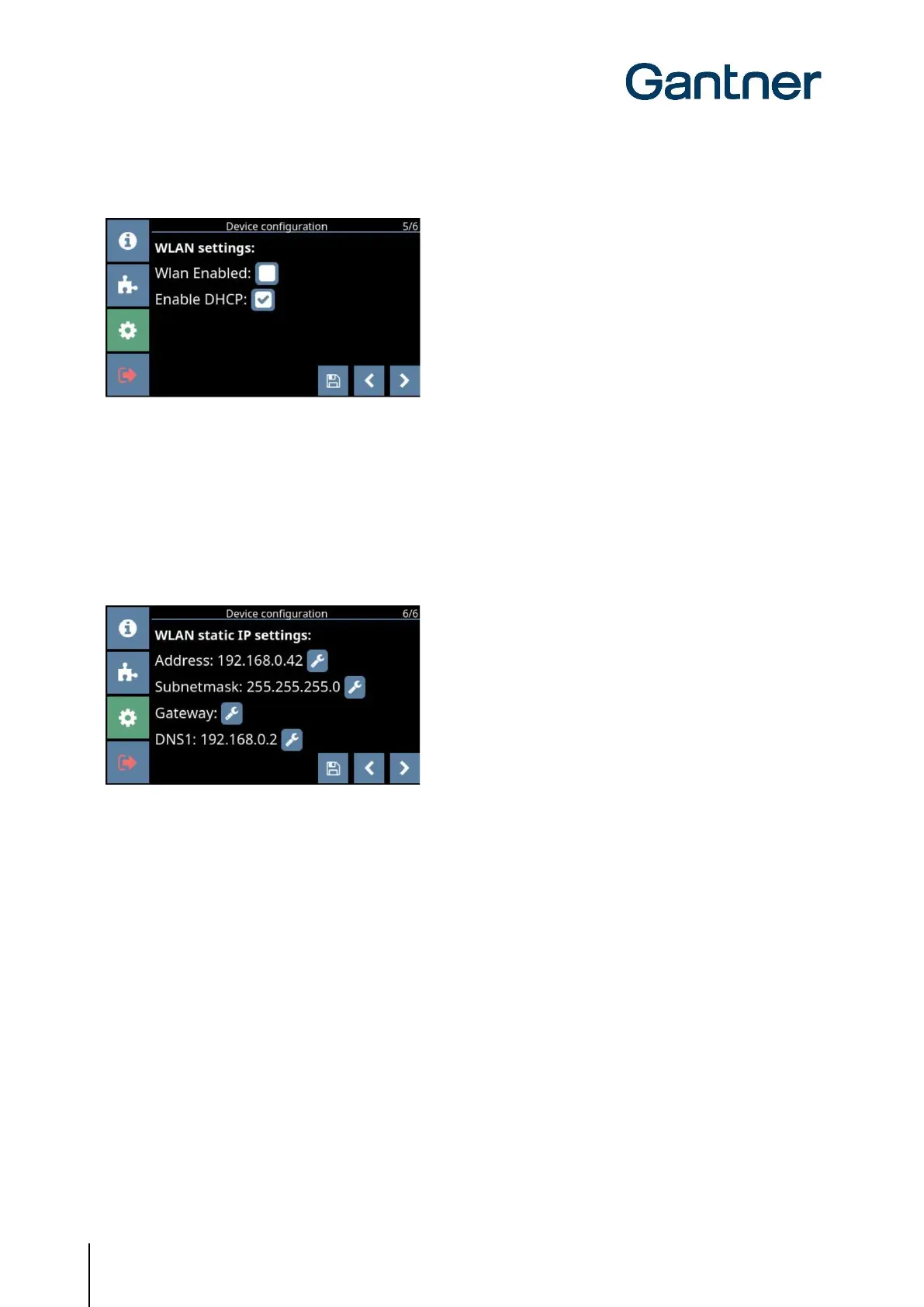

Figure 5.15 – Device configuration – Page 5
- WLAN enabled: Enable or disable the GT7 terminal’s ability to communicate via Wi-Fi.
- Enable DHCP: When this option is enabled, a dynamic IP address will be assigned for wireless
communication. When not enabled, a static IP address must be defined for wireless
communication.
WLAN Static IP Settings
Figure 5.16 – Device configuration – Page 6
- Address: The static IP address of the GT7 terminal for WLAN communication.
- Subnet mask: The static subnet mask of the GT7 terminal for WLAN communication.
- Gateway: The static gateway address of the GT7 terminal for WLAN communication.
- DNS1: The address of the primary DNS server for WLAN communication.

Gantner GT7.2x00 Specifications

General

Brand	Gantner
Model	GT7.2x00
Category	Touch terminals
Language	English
