Flameproof Type (JIS)
Wiring and Piping
2. Make cable wiring using metallic conduit or waterproof glands (Figure 34).
3. Apply a non-hardening sealant to the terminal box connection port and to the
threads on the flexible metal conduit for waterproofing.

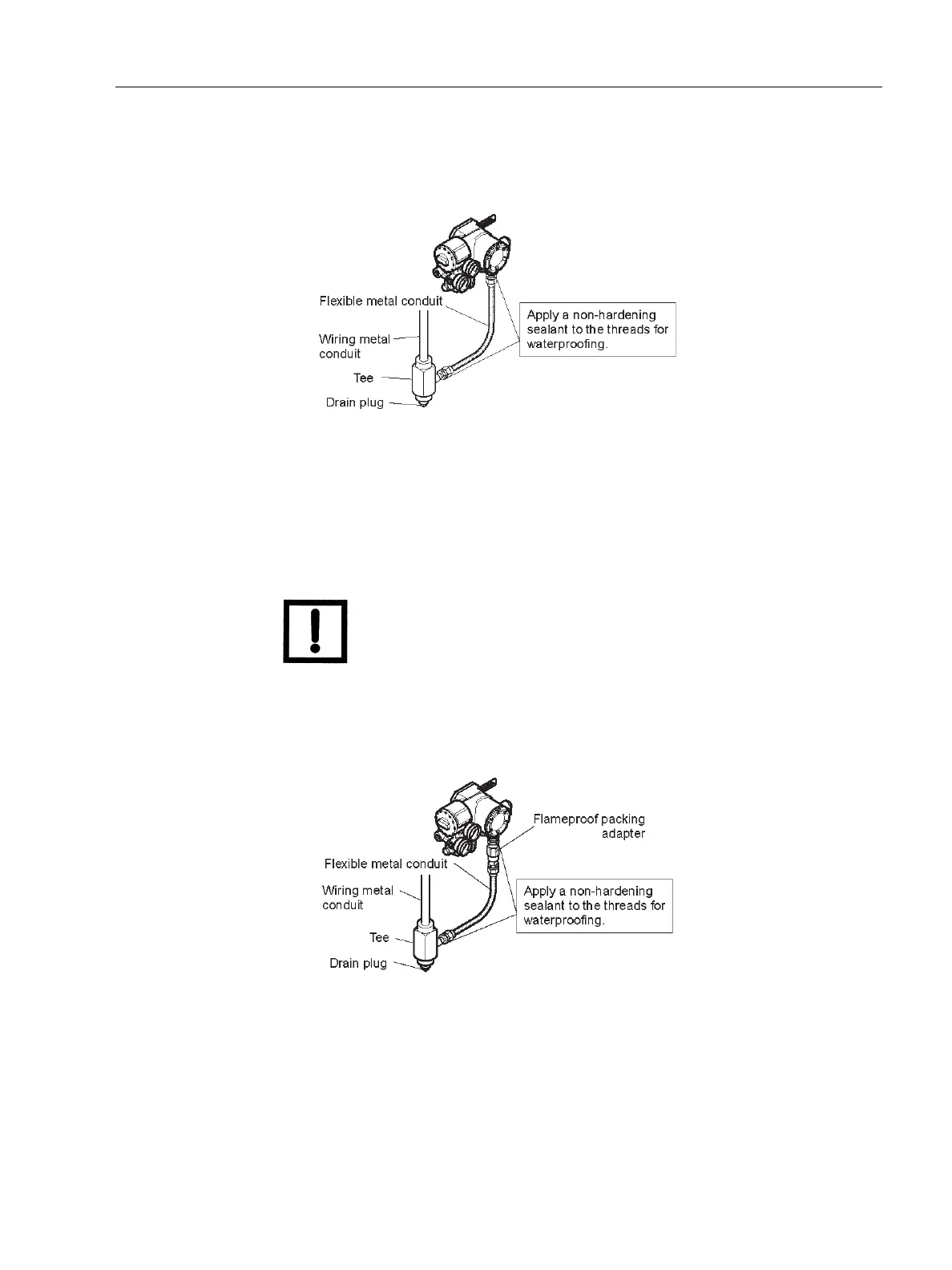

Figure 34 Typical Wiring Using Flexible Metal Conduit
Flameproof Type (JIS)
1. Remove the terminal box cover and dust proofing plug (Figure 33). Be sure to
securely seal the unused wiring port with a blind plug.
NOTE Wire cables through a flameproof packing adapter, or using
a flameproof metal conduit by (Figure 35):
❑ Installing only flameproof packing adapters approved by
GE Masoneilan.
❑ Applying a nonhardening sealant to the terminal box
connection port and to the threads on the flameproof
packing adapter for waterproofing.
Figure 35 Typical Cable Wiring Using Flameproof Packing Adapter
2. Measure the cable outer diameter in two directions to within 1 mm.
3. Calculate the average of the two diameters, and use packing with an internal
diameter nearest to this value (Table 4).
