GE LOGIQ 400 Service Manual

GE MEDICAL SYSTEMS LOGIQ 400 SERVICE MANUAL

2127661
5–5 DIAGRAMS
REV 9
5–3 BLOCK DIAGRAM (continued)
NOTE: The DICOM option is available
for the console with software ver-
sion 3.40 or later.
NOTE: The VIPP is installed on the con-
sole with software version 5.01 or
later.

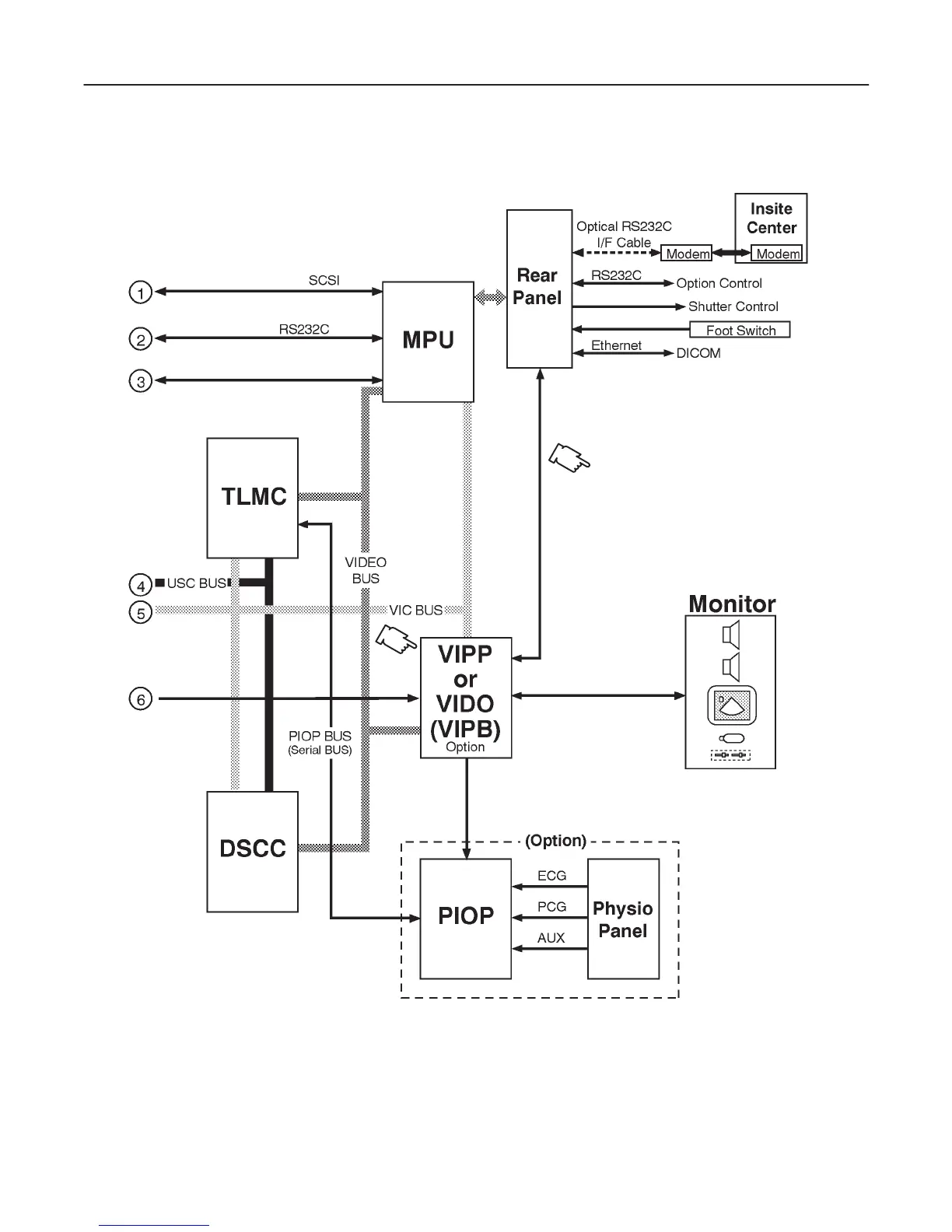

LOGIQ 400 SYSTEM BLOCK DIAGRAM (For Color Monitor Model and B/W Model with S/W V4.01 or Later)
ILLUSTRATION 5–1 (b)
