GE LOGIQ 400 - CRT Filter (FRU No. 155), CRT Filter Clamp Set (FRU No. 156)

GE MEDICAL SYSTEMS LOGIQ 400 SERVICE MANUAL

2127661
RENEWAL PARTS
6–97
REV 9
6–2–16 CRT Filter (FRU No. 155), CRT Filter Clamp Set (FRU No. 156)
Time Required
1 Minute
Tool Required
Not necessary
Procedure
Refer to ILLUSTRATION 6–35.
1. Turn OFF the system.
2. Slide the filter clamp at left side leftwards and pull it out.
3. Slide the filter clamp at right side rightwards and pull it out.
4. Remove the CRT Filter (FRU 155).

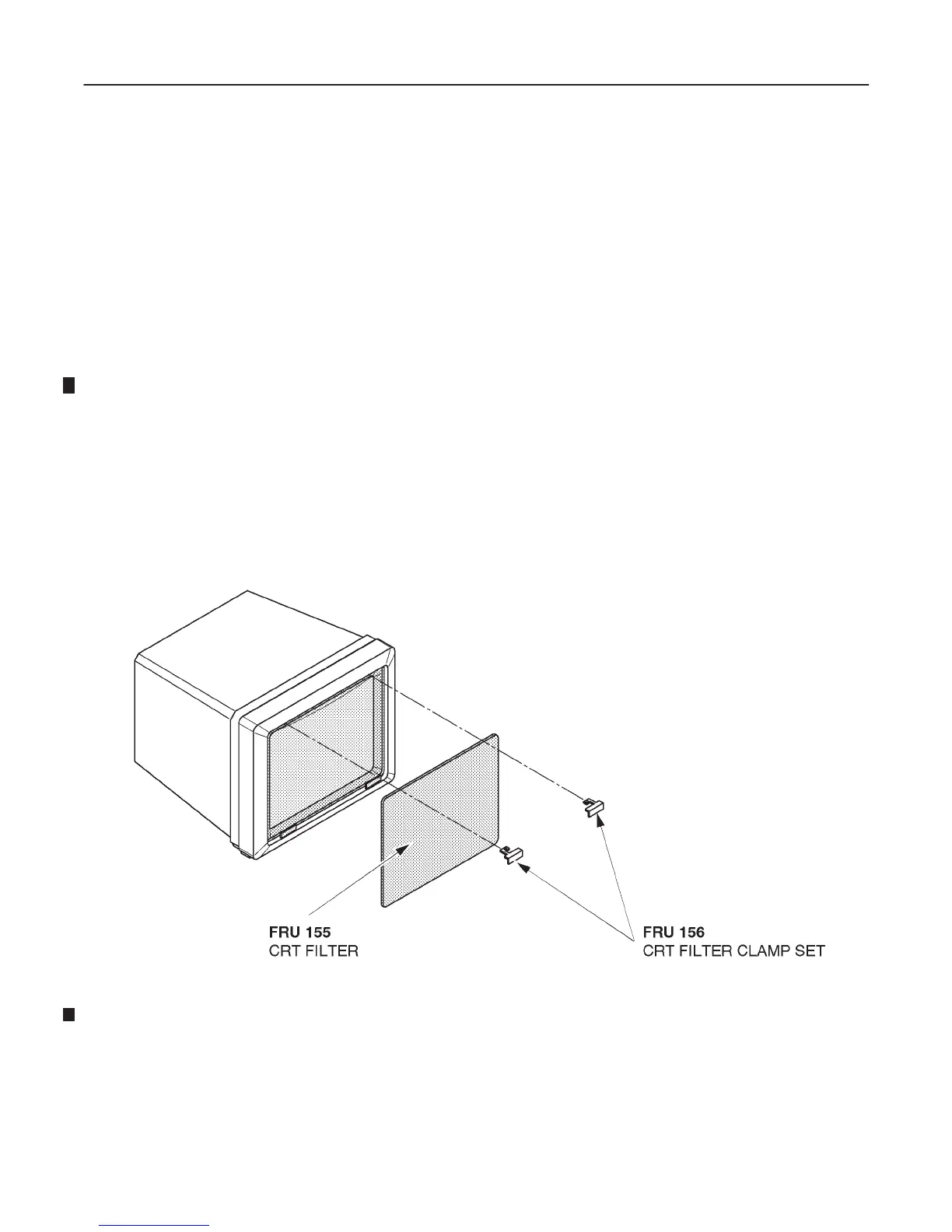

CRT FILTER CLAMP AND CRT FILTER REMOVAL
ILLUSTRATION 6–35
Note
When reinstalling the CRT filter, you will hear a “click” sound when the filter clamp is secured by the
lock mechanism. This indicates it is properly installed.
