GE LOGIQ 400 - Escutcheon Latch (FRU No. 103)

GE MEDICAL SYSTEMS LOGIQ 400 SERVICE MANUAL

2127661
RENEWAL PARTS
6–76
REV 9
6–2–3 Escutcheon Latch (FRU No. 103)
Time Required
10 Minute
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–19.
1. Turn OFF the system.
2. Remove the Escutcheon Assy (FRU 102). Refer to 6–2–2 on page 6–72.
3. Remove the Escutcheon Latch (FRU 103) from the Escutcheon Assy (FRU 102) as shown in
ILLUSTRATION 6–19.

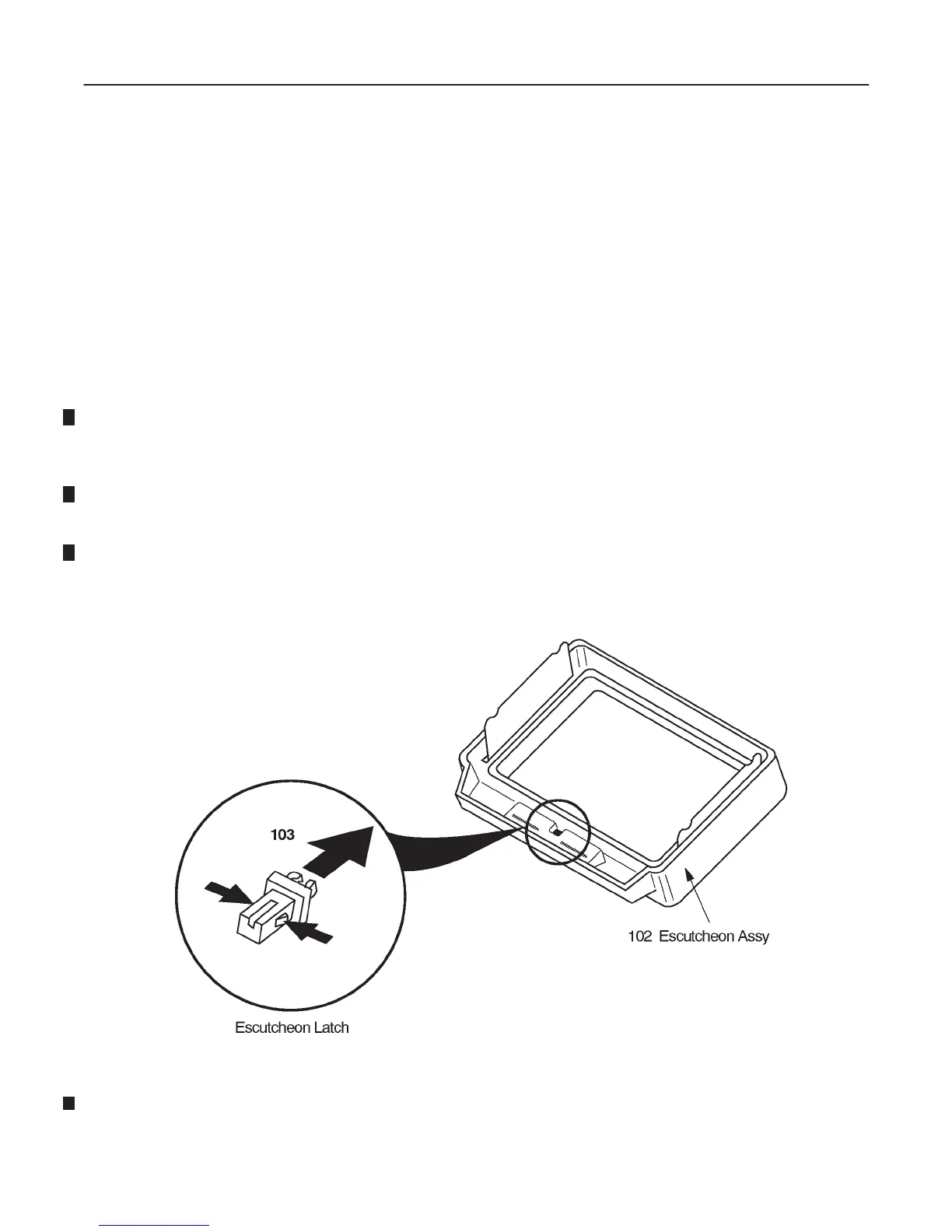

ESCUTCHEON LATCH REMOVAL
ILLUSTRATION 6–19
