8–66 OPTIONS
REV 5
8–5–8 Operational Check–out (Continued)
48. Select the AUX Positn section using the
or key of Sub Menu Select keys. The AUX Positn section is
displayed in reverse video.
49. Check that the position of the AUX waveform moves vertically by means of pressing the
or key of Sub
Menu Select keys.
50. Select the AUX Gain section using the or key of Sub Menu Select keys. The AUX Gain section is dis-
played in reverse video.
51. Check that the size of the AUX waveform changes by means of pressing the or key of Sub Menu Select
keys.
52. Press the and keys of Sub Menu Select keys simultaneously to display the first menu. The ECG first
menu is displayed on the CRT monitor screen.
53. Select the AUX Wave section using the or key of Sub Menu Select keys.
54. Press key to exit the AUX mode. The AUX waveform will disappear.
55. Perform leakage current test.
8–5–9 Attaching Caution Label
1. Turn the system power OFF.

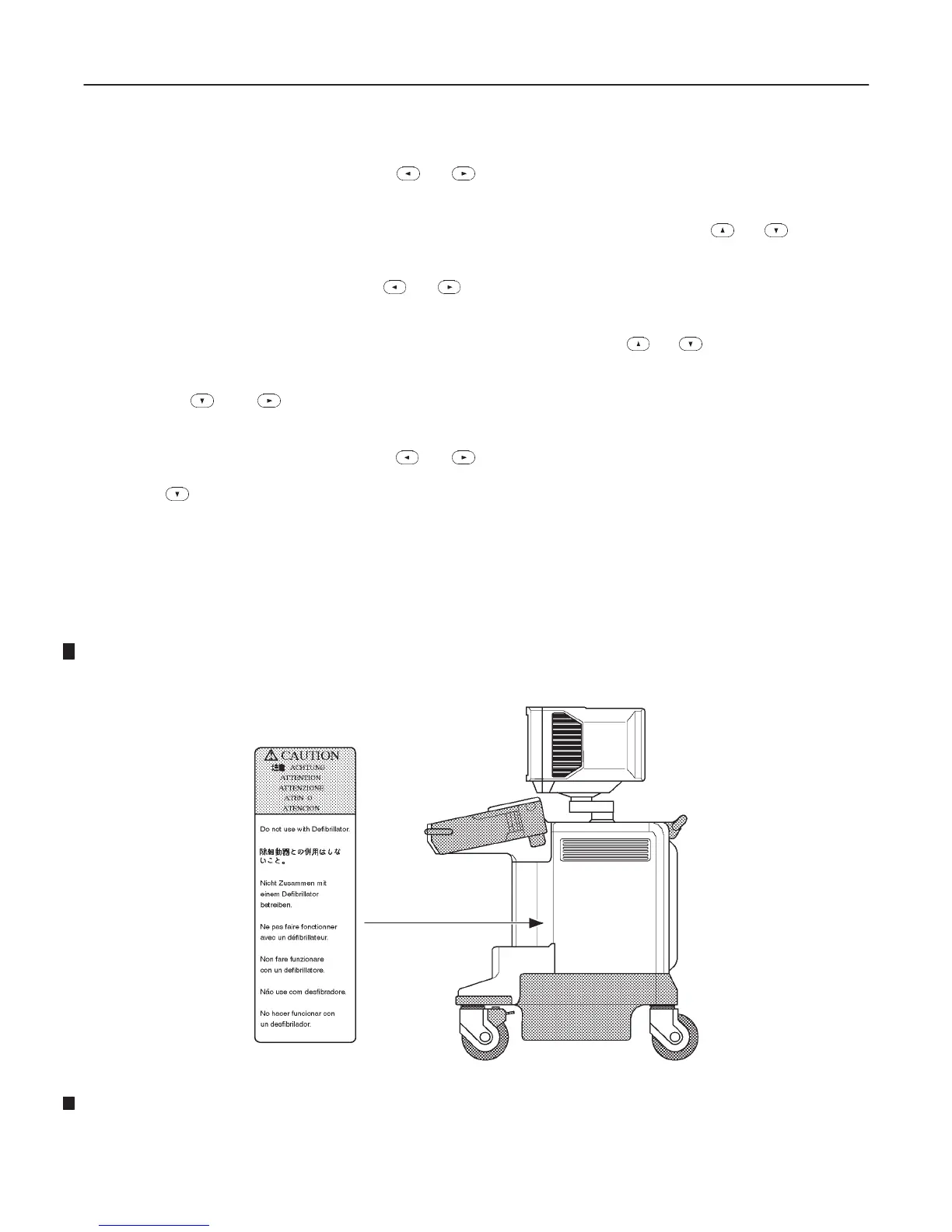

2. Attach the Caution Label onto the Side Cover Right as shown in ILLUSTRATION 8–77.
ATTACHING CAUTION LABEL
ILLUSTRATION 8–77
