GE LOGIQ 400 - Block Diagram; Chapter 5 - Diagrams

GE MEDICAL SYSTEMS LOGIQ 400 SERVICE MANUAL

2127661
5–4 DIAGRAMS
REV 6
5–3 BLOCK DIAGRAM

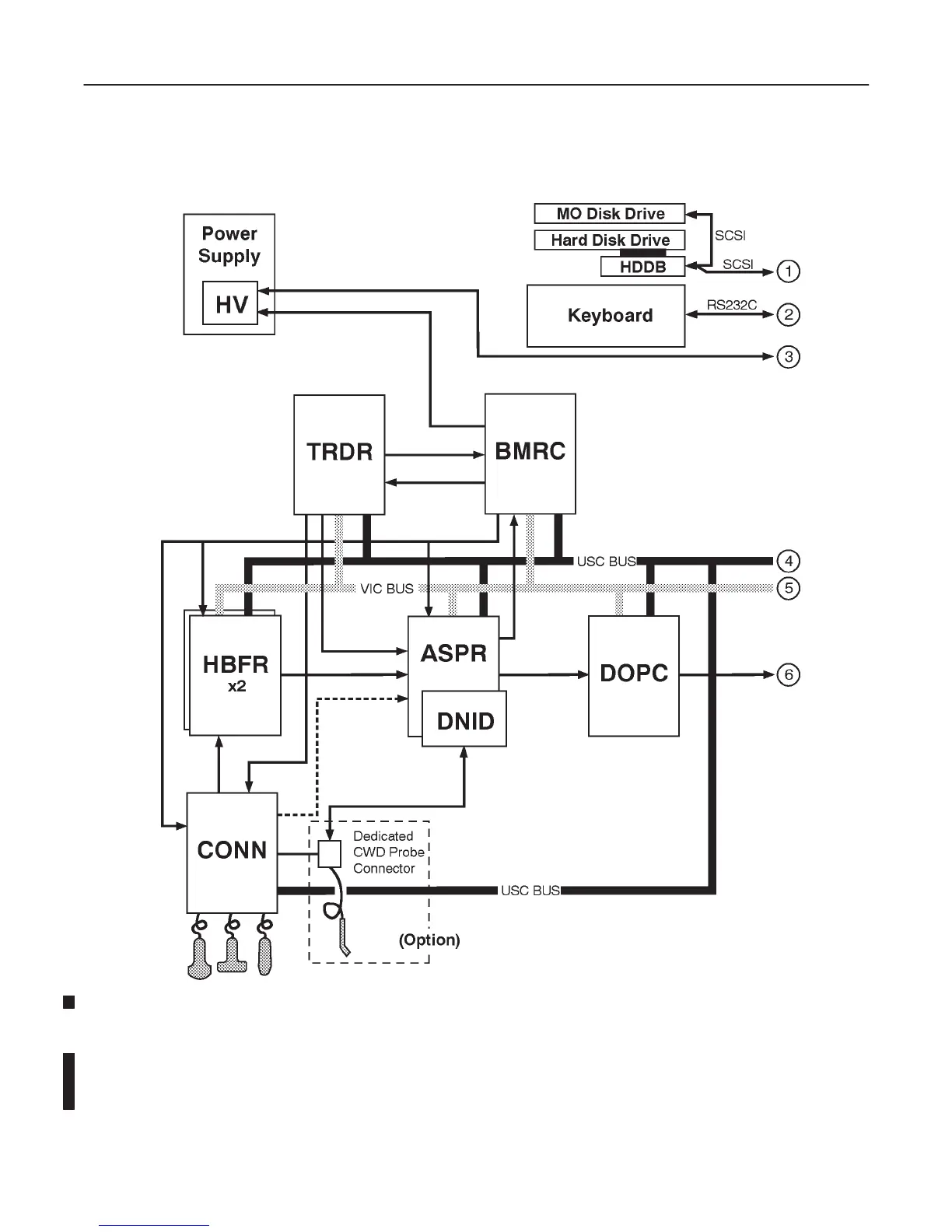

LOGIQ 400 SYSTEM BLOCK DIAGRAM (For Color Monitor Model and B/W Model with S/W V4.01 or Later)
ILLUSTRATION 5–1 (a)
Note
The DOPC Assy is supplied to the B/W console with the softtware V4.01 or later with the optional
Doppler Upgrade.
