6–2–7 Accessory Assy (FRU No. 111)
Time Required
0.5 Hours
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–23.
1. Turn OFF the system.
2. Remove the Monitor Cover Set (FRU 101). Refer to 6–2–2 on page 6–72.
3. Unscrew five screws (
1
–
5
).
4. Disconnect two connectors (
6
and
7
).
5. Remove the Accessory Assy.
ACCESSORY ASSY DISASSEMBLY

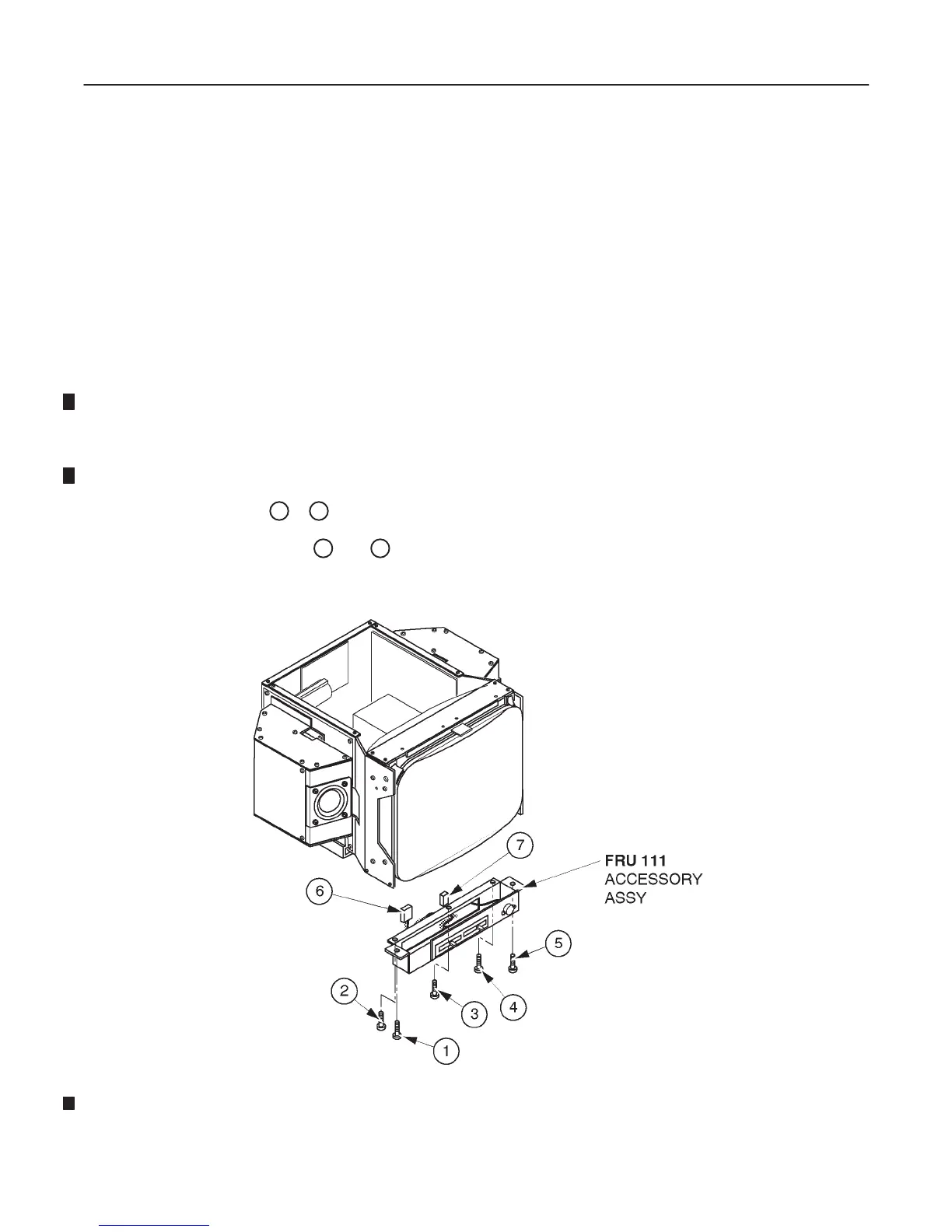

ILLUSTRATION 6–23
