GE LOGIQ 400 - Keyboard Panel Assy (FRU No. 400)

LOGIQ 400 SERVICE MANUALGE MEDICAL SYSTEMS
2127661

RENEWAL PARTS
6–147
REV 9
6–2–49 Keyboard Panel Assy (FRU No. 400)
Time Required
8 Minutes
Tool Required
Screwdriver
Procedure

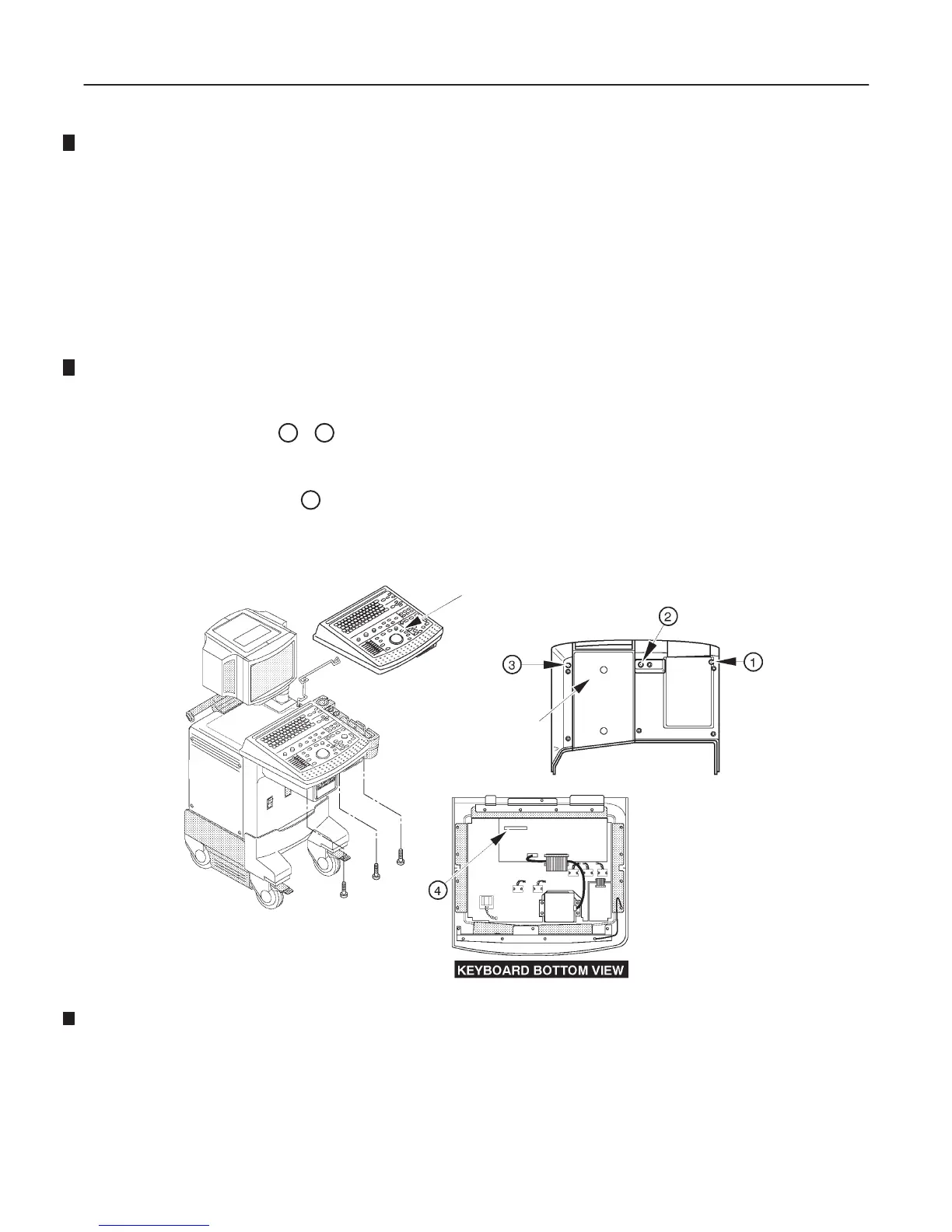

Refer to ILLUSTRATION 6–72.
1. Turn OFF the system.
2. Unscrew three screws (
1
–
3
) of the Keyboard Panel Assy.
3. Lift the Keyboard Assy up.
4. Disconnect the connector (
4
).
5. Remove the Keyboard Panel Assy.
FRU400
KEYBOARD PANEL ASSY
KEYBOARD
BOTTOM COVER
KEYBOARD PANEL ASSY DISASSEMBLY
ILLUSTRATION 6–72
Note
The color of the Key Sheet for the LOGIQ 400CL is different from the other color monitor assy. Use
the proper FRU when replacing the Keyboard Panel Assy for the LOGIQ 400CL.
