GE LOGIQ 400 Service Manual

2127661
LOGIQ 400 SERVICE MANUALGE MEDICAL SYSTEMS

RENEWAL PARTS
6–234
REV 9
6–2–95 LV2 Unit (FRU No. 752)
Time Required
30 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–131 on page 6–235.
1. Turn OFF the system and unplug the main power cord.
2. Remove the Side Cover left. Refer to 6–2–31 on page 6–127.
3. Unscrew four screws (
1
–
4
).
4. Remove the Left PS Cover.
5. Unscrew two screws (
5
and
6
).
6. Unscrew fourteen (14) screws (
7
–
20
) to remove wires.
7. Disconnect five connectors (
21
–
25
).
8. Pull the LV2 Unit outwards.
9. Disconnect one connector (
26
) from the rear of LV2 Unit.
10. Unscrew three screws (
27
–
29
).
11. Remove the LV2 Unit.
Note

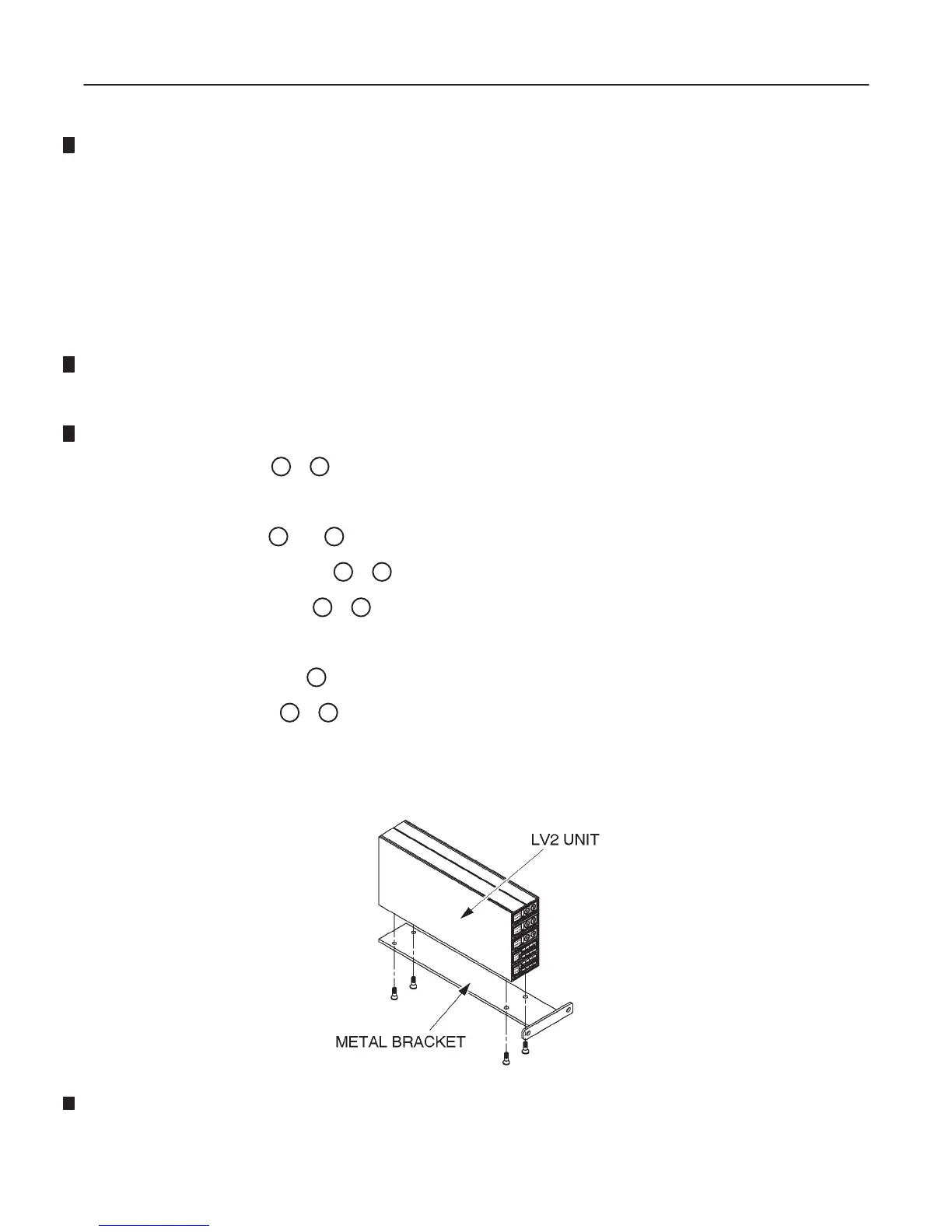

When replacing the LV2 Unit, re–use the metal bracket installed onto the LV2 Unit.
LV2 UNIT REMOVAL
ILLUSTRATION 6–130
