GE LOGIQ 400 - Fixing Metal Plate (FRU No. 154)

GE MEDICAL SYSTEMS LOGIQ 400 SERVICE MANUAL

2127661
RENEWAL PARTS
6–96
REV 9
6–2–15 Fixing Metal Plate (FRU No. 154)
Time Required
5 Minute
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–34.
1. Turn OFF the system.
2. Remove the Monitor Bottom Assy (FRU 157). Refer to 6–2–17 on page 6–98.
3. Pull out the Fixing Metal Plate (FRU 154) from the Escutcheon Assy (FRU 153).

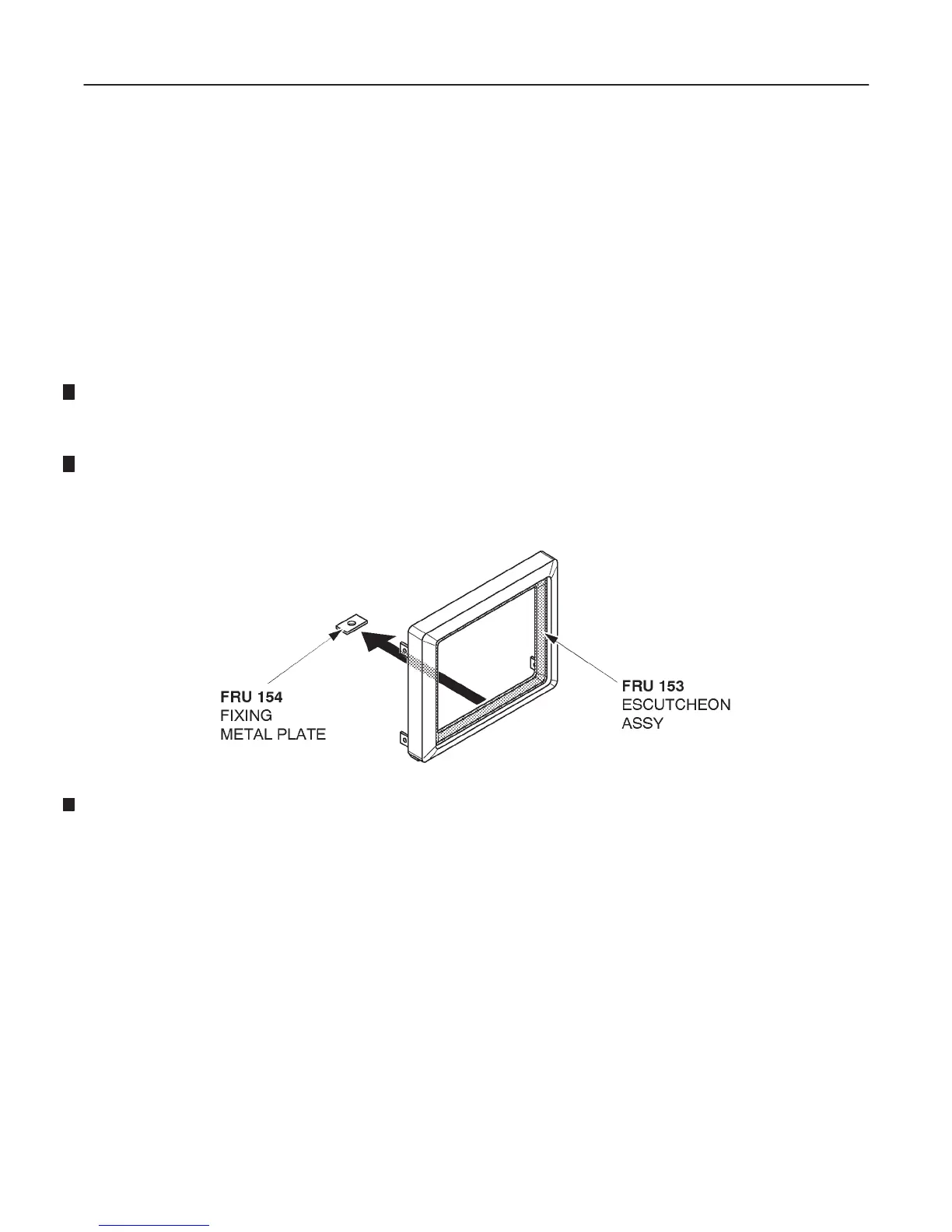

FIXING METAL PLATE REMOVAL
ILLUSTRATION 6–34
