GE LOGIQ 400 Service Manual

GE MEDICAL SYSTEMS LOGIQ 400 SERVICE MANUAL

2127661
5–8 DIAGRAMS
REV 9
5–4 WIRING DIAGRAM
NOTE: The CB46 and CB45N are not installed in
the console with the new 3.5–inch HDD
(Quantum Fireball 1280S and Quan-
tum Fireball EL) because the HDD
LED Assy is not supplied.
NOTE: VIPP ASSY is installed in the console with software version 5.01y or later.

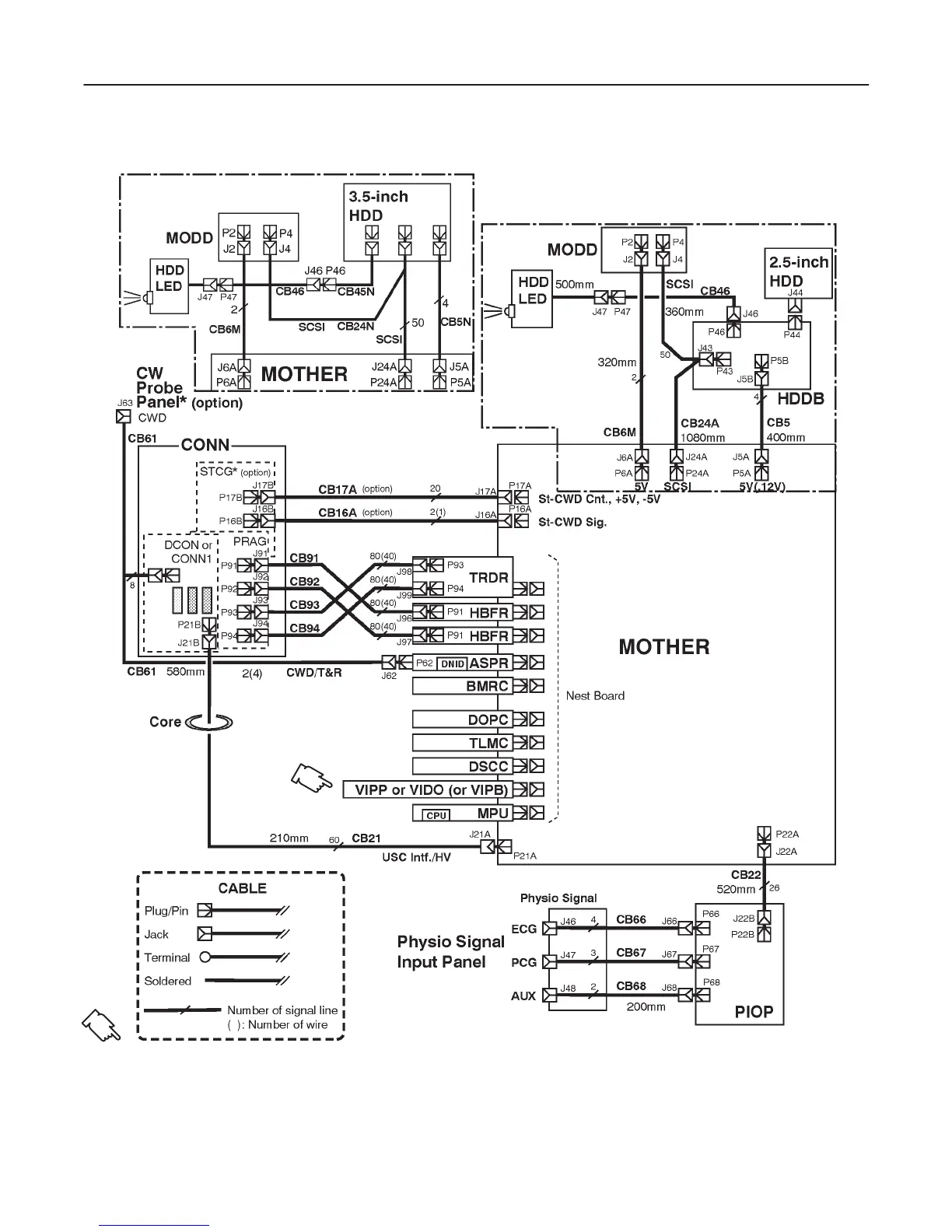

LOGIQ 400 SYSTEM WIRING DIAGRAM (For Color Monitor Model and B/W Model with S/W V4.01 or Later)
ILLUSTRATION 5–3 (a)
