GE MEDICAL SYSTEMS LOGIQ 400 SERVICE MANUAL

2127661
5–13 DIAGRAMS
REV 0
5–5 POWER SUPPLY BLOCK DIAGRAM (Continued)

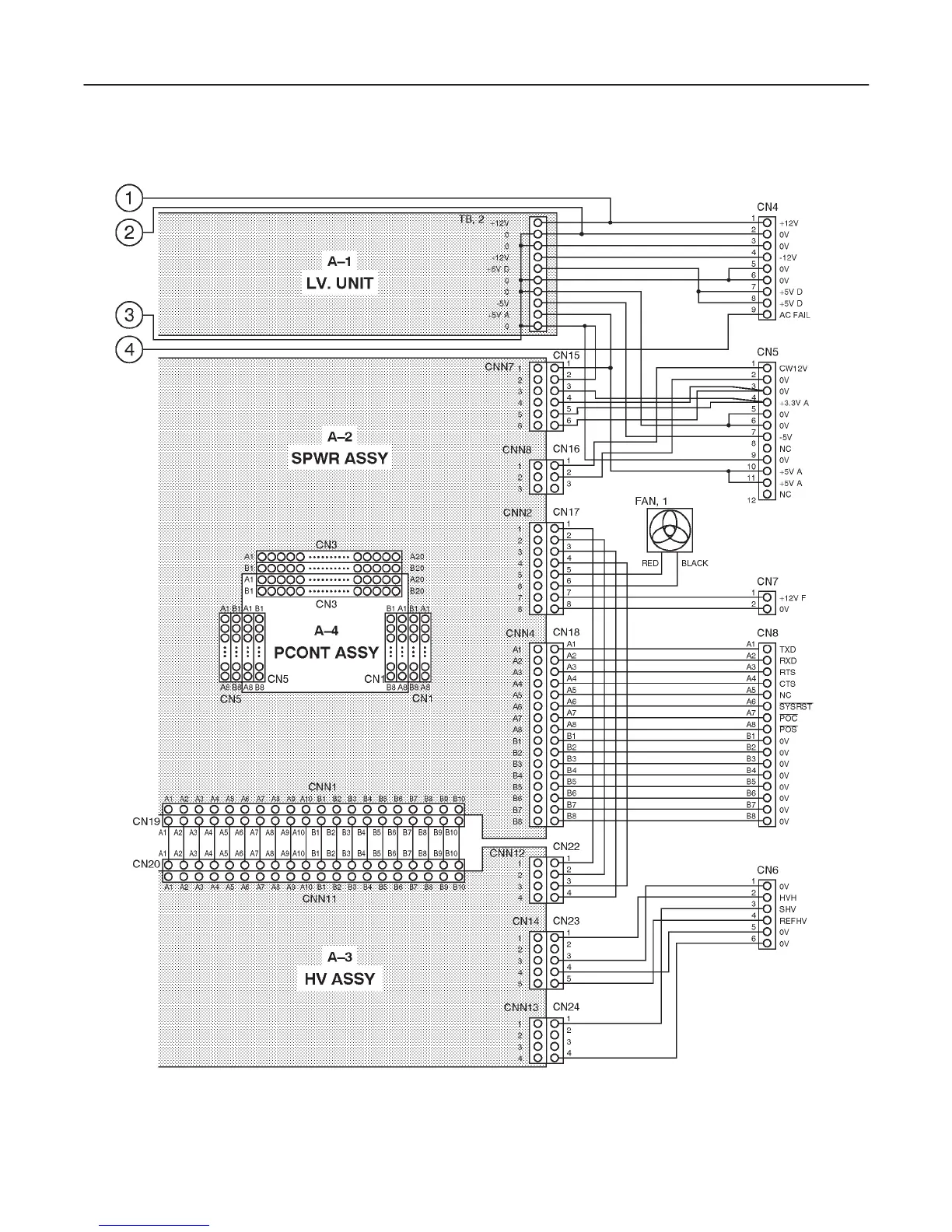

LOGIQ 400 SYSTEM POWER SUPPLY BLOCK DIAGRAM
ILLUSTRATION 5–5 (b)
