GE MEDICAL SYSTEMS LOGIQ 400 SERVICE MANUAL
2127661
RENEWAL PARTS
6–108
REV 9
6–2–22 Monitor15 Cover Set (FRU No. 171) (continued)
Note
The new Escutcheon2 Assy (2265744) includes the two different labels for the Escutcheon. When
replacing the Escutcheon with the new Escutcheon2 Assy, be sure to attach the proper label on to the
Escutcheon as follows:
a. Choose the proper label, “LOGIQ 400 PRO” indicating the same model name as the label on the removed
Escutcheon.

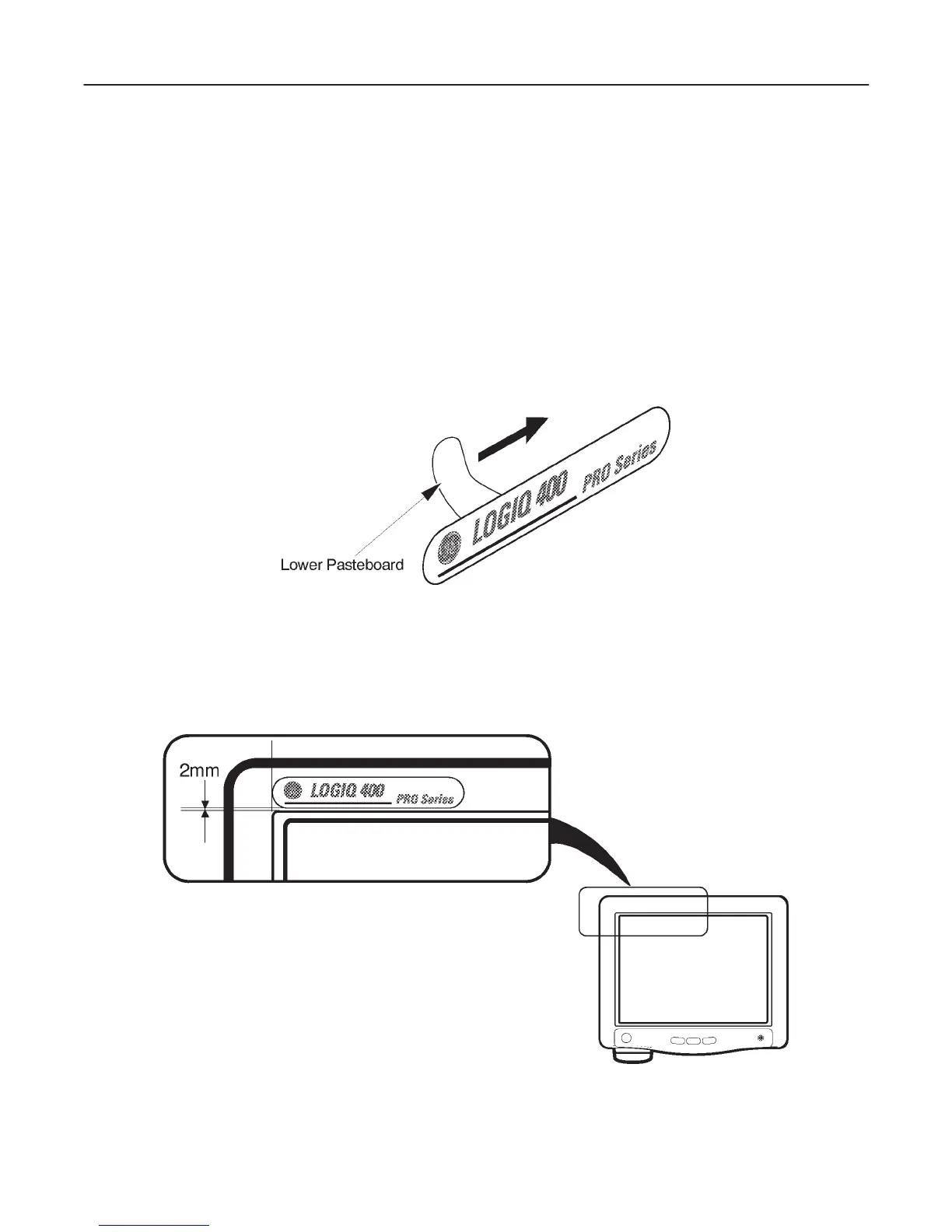

b. Remove the lower pasteboard from the proper label. Refer to ILLUSTRATION 6–42.
REMOVING LOWER PASTEBOARD
ILLUSTRATION 6–42
c. Set and attach the label on the Escutcheon. Adjust the position of the label attached as shown in
ILLUSTRATION 6–32. Be careful not to attach the label with a misalignment.
ATTACHING LABEL
ILLUSTRATION 6–43
