8–3–7 Connecting Cables (Continued)
Note
The Color Video Printers, UP–2950MD, UP–2850P, UP–2900MD, and UP–2800P can be controlled
from the LOGIQ 400 keyboard using the RS232C cable only for the MD console with the software
version 3.30A or later and for the CL console with the software version 3.20A or later.
For the console with the other software version, we have to use those printers with connecting a mini
plug cable to enable the LOGIQ 400 console to control only the print function. Other remote func-
tions are not available under this condition. For the connection of the mini plug cable, refer to
ILLUSTRATION 8–28.

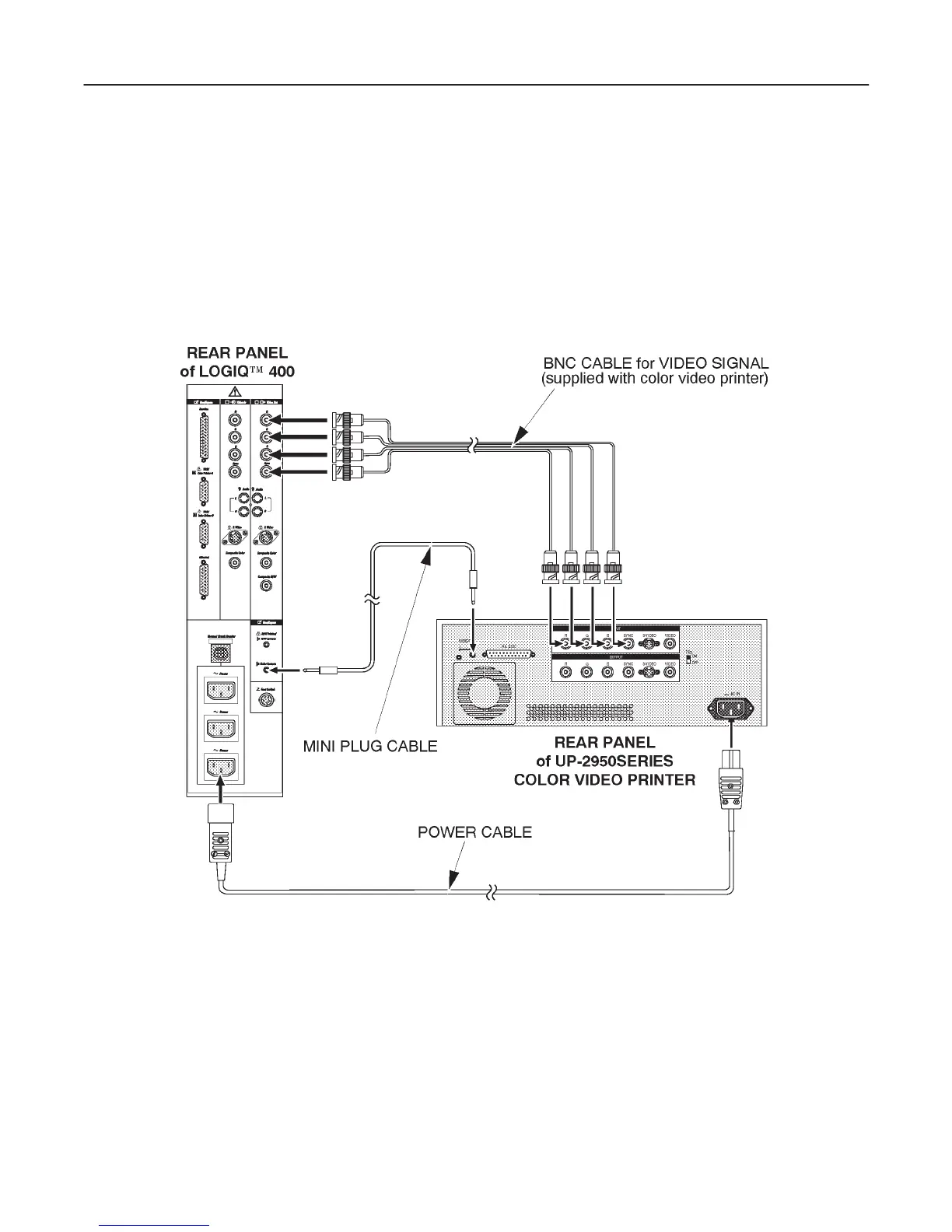

MINI PLUG CABLE CONNECTION WITH UP–2950 SERIES PRINTERS
ILLUSTRATION 8–28
