8–54 OPTIONS
REV 5
8–5–6 Installing ECG Board Assy (Continued)
4. Install the ECG Board Assy by screwing two screws (
2
and
3
) as shown in ILLUSTRATION 8–59.
5. Connect the cable (
1
: CB22) from the Mother Board with the connector on the ECG board assy. Refer to
ILLUSTRATION 8–59.

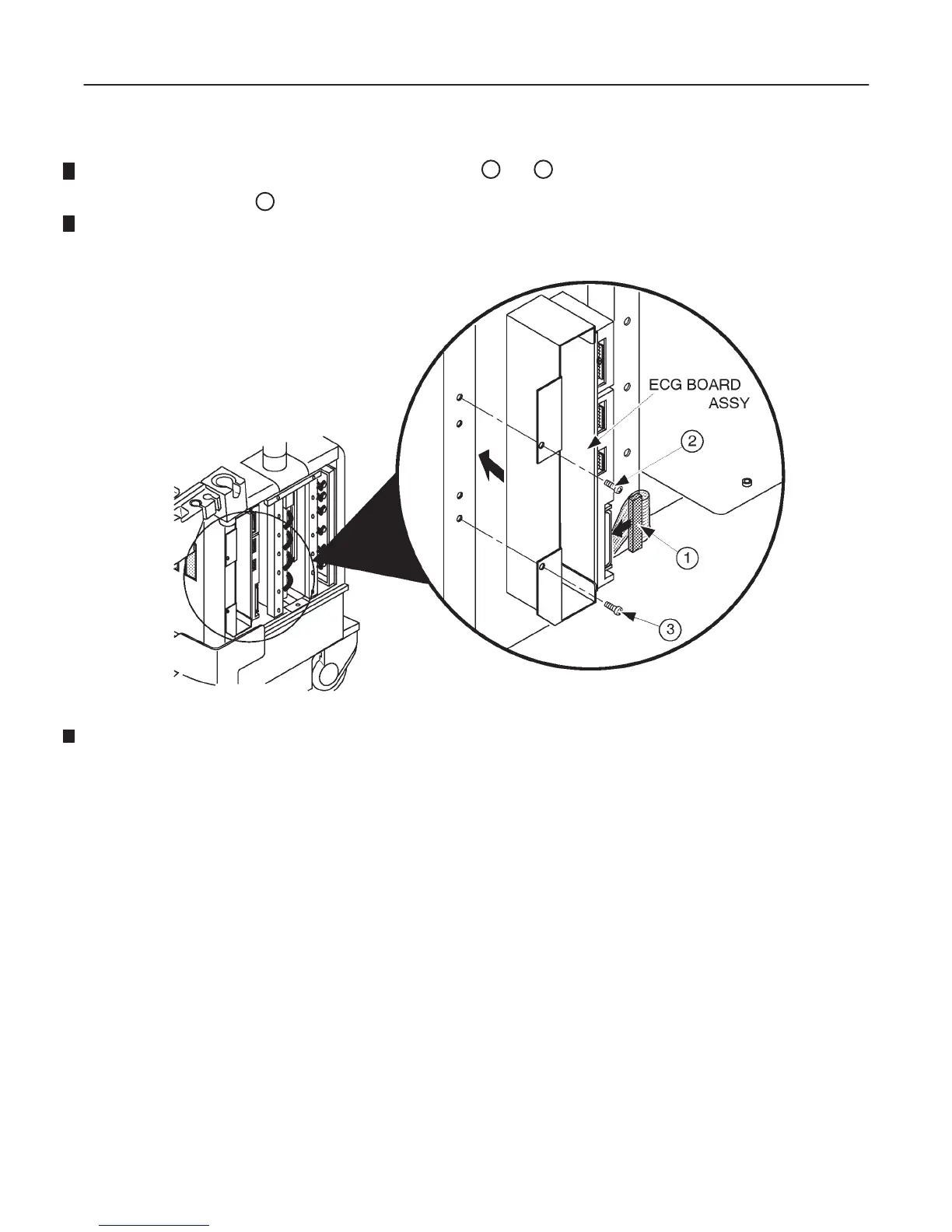

ECG BOARD ASSY INSTALLATION
ILLUSTRATION 8–59
