8–6–7 Installing OMEM Assy (Continued)
2. Connect the two connectors and screw one screw (
1
) to assemble the OMEM Assy onto the TLMC Assy as

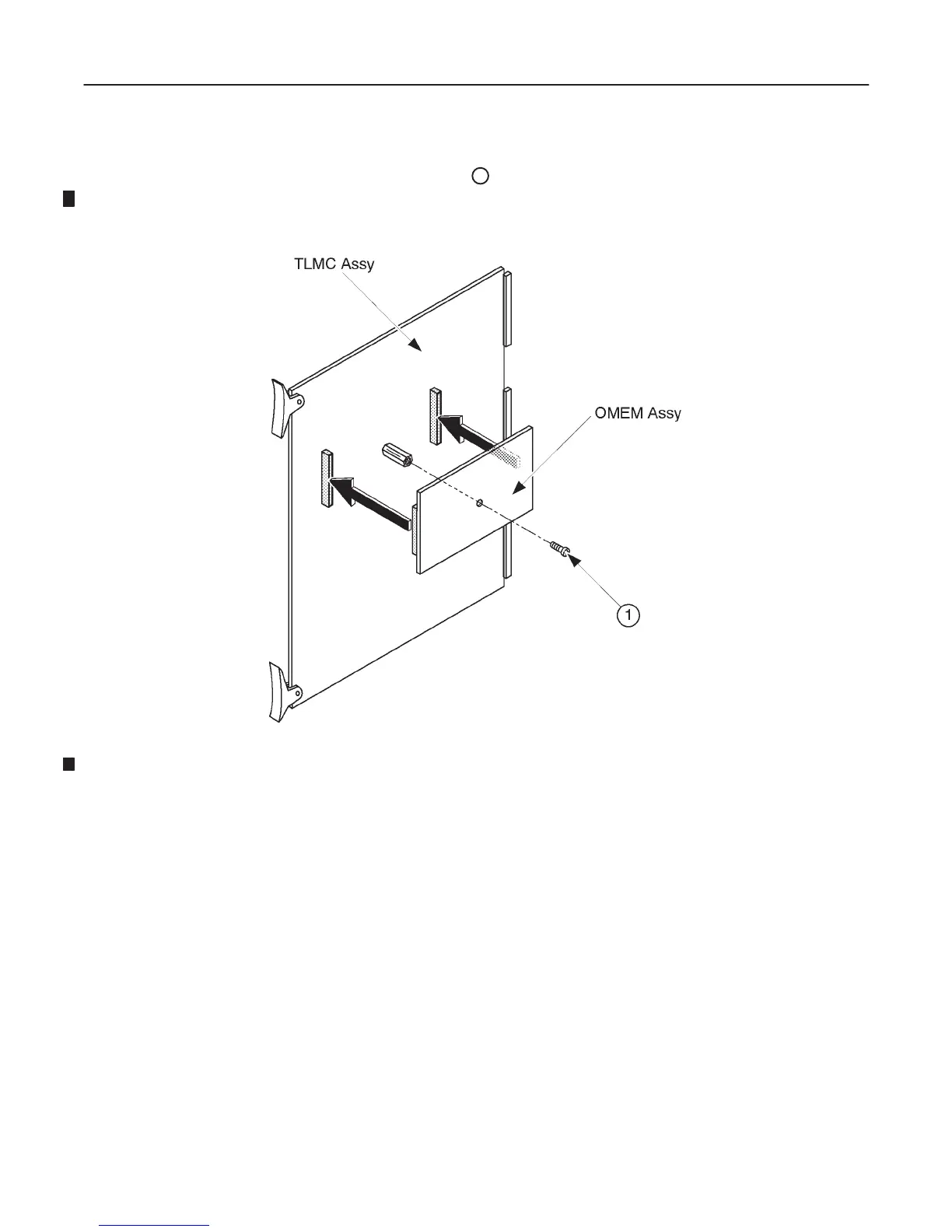

shown in ILLUSTRATION 8–83.
ASSEMBLING OMEM ASSY
ILLUSTRATION 8–83
3. Re–install the TLMC Assy into the slot 9 of the Nest and turn the upper and lower ejectors to fix the board firmly.
4. Screw five screws to install the Nest Cover.
