3–2 DIMENSIONS (continued)
NOTE
LENGTH : mm (inches)
ABERRATION : ±10%
WEIGHT: 136 kg
300 lbs

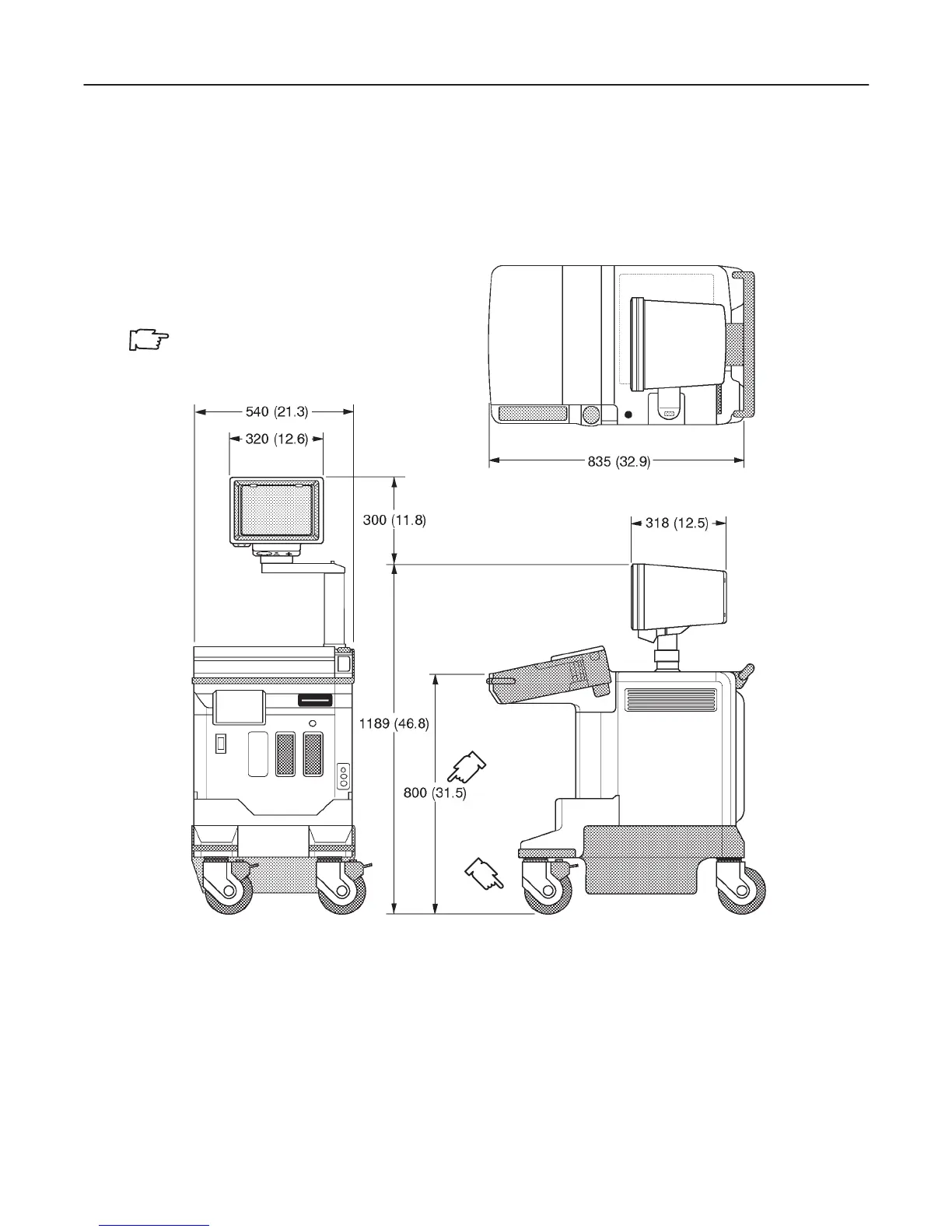

OVERALL DIMENSIONS (B/W Monitor Models with S/W V3.40 or earlier)
ILLUSTRATION 3–2
Note
The ILLUSTRATION 3–2 shows the dimensions for the B/W console with the software version 3.40 or
earlier. For the dimensions of the B/W console with the software version 4.01 or later, refer to
ILLUSTRATION 3–1.
