GE MEDICAL SYSTEMS
2127661
LOGIQ 400 SERVICE MANUAL

FUNCTIONAL CHECKS
4–7
REV 0
4–2–1 Basic Controls (Continued)

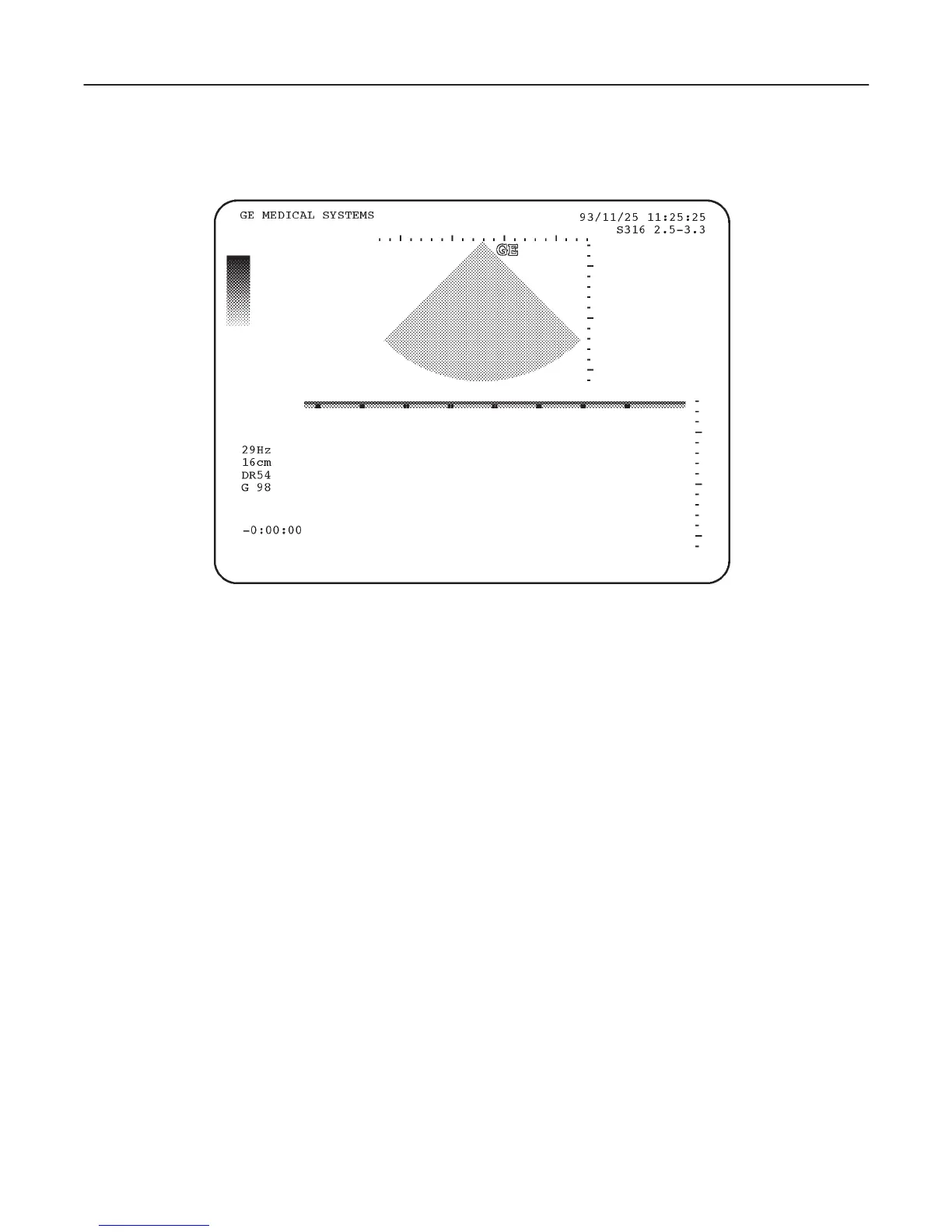

M–MODE DISPLAY SCREEN
ILLUSTRATION 4–2
Note
You can select the two types of display format: Side by Side (with the 2–D display to the left of the
M–mode display) and Top/Bottom (with the 2–D display on top of the M–mode display) by using the
Preset Menu. For the Preset Menu, refer to Customizing Your System in the LOGIQ 400 User Man–
ual.
