GE LOGIQ 400 Service Manual

GE MEDICAL SYSTEMS
2127661
LOGIQ 400 SERVICE MANUAL

FUNCTIONAL CHECKS
4–9
REV 1
4–2–1 Basic Controls (Continued)
Step Check Expected result
34. Press PD key. The Pulse Doppler mode screen should appear as shown
in ILLUSTRATION 4–4.
35. Rotate
θ Angle knob. A line should appear in the circle on the B mode image
and that line displayed with circle should rotate.
36. Rotate Gain knob. The Doppler noise should increase/decrease.
37. Rotate Audio Volume knob. The Doppler audio volume should increase/decrease.
38. Press B key. The B mode screen should appear as shown in
ILLUSTRATION 4–1.

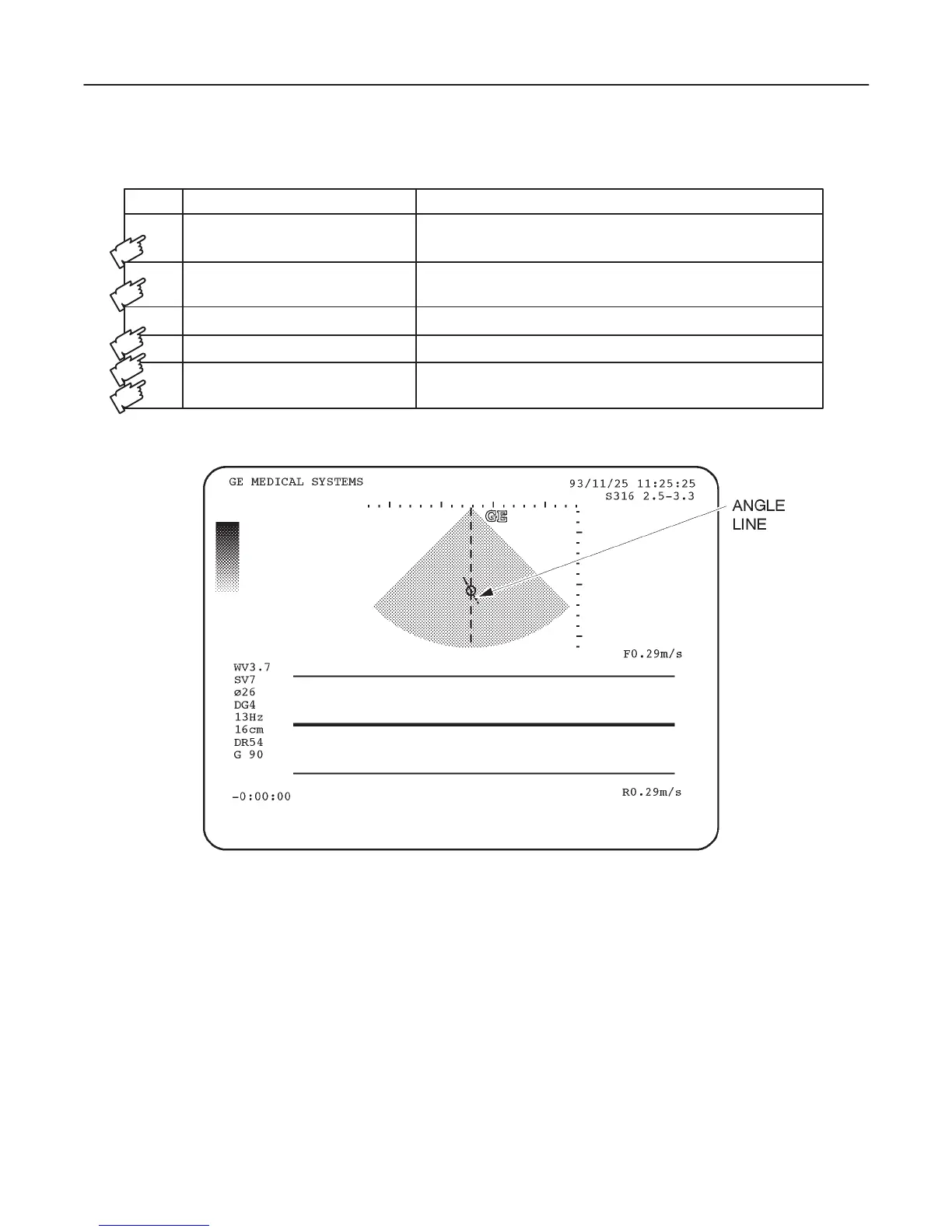

PULSE DOPPLER MODE DISPLAY SCREEN
ILLUSTRATION 4–4
Note
You can select the two types of display format: Side by Side (with the 2–D display to the left of the
PD–mode display) and Top/Bottom (with the 2–D display on top of the PD–mode display) by using the
Preset Menu. For the Preset Menu, refer to Customizing Your System in the LOGIQ400 User Man–
ual.
