GE MAC 1600 Operator's Manual

Equipment Overview
2028451-182B MAC™ 1600 2-3

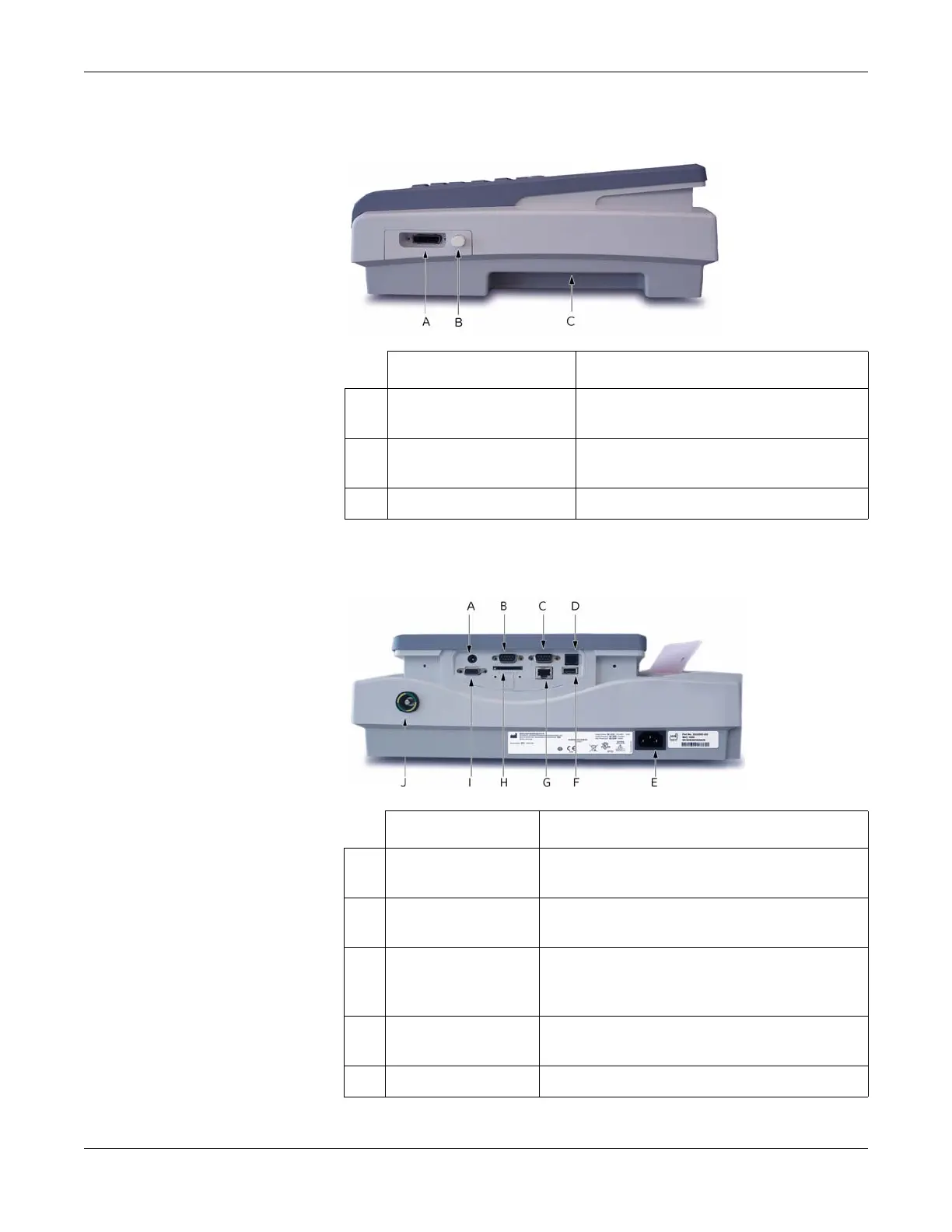

Side View
004
Back View
003
Name Description
A ECG signal input connector D-sub 15-pin female connector for the
acquisition cable.
B KISS Connector Connection port for the optional KISS lead
system.
C Carrying handle Handle for carrying the MAC 1600 device.
Name Description
A External Power
Connector
12V power supply for future external devices. Do not
use.
B COMM Port A Serial connector for stress devices (bicycle ergometer
or treadmill).
C COMM Port B Serial connector for data communication with CASE/
CardioSoft or MUSE system or connect to an external
modem.
D Phone jack RJ11 connector from the internal modem to an analog
phone line.
E AC power connection Standard connector for the AC power cable.
