Equipment Overview
2028451-182B MAC™ 1600 2-9
3. Check the Power LED to make sure the unit is receiving power from
the AC outlet.
For more information, refer to “Front View” on page 2-2.
Connecting Leadwires
Use the following instructions to connect your leadwires and acquisition
module to the MAC 1600 unit.
011A
1. Assemble the leadwires and adapters.
Refer to “Replacing Leadwire Adapters” on page 10-7 for details.

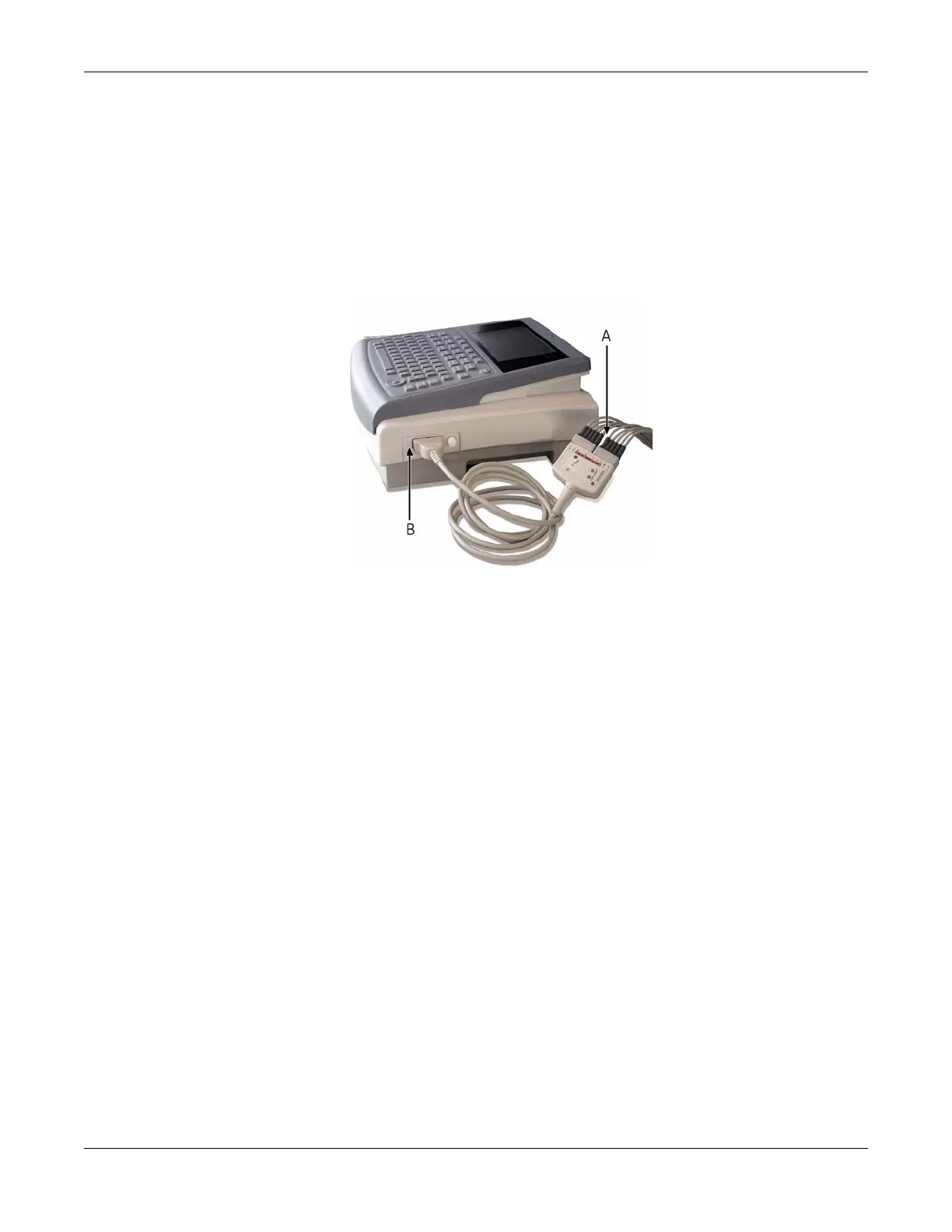

2. Connect the leadwires to the front of the acquisition module. (A)
Refer to “Acquisition Modules” on page 2-6 for more information.
3. Connect the acquisition cable to the MAC 1600 system. (B)
Ensure the cable is seated snugly.
Inserting Paper
Before printing ECG reports, do the following:
Make sure the system is set up for the correct paper size.
The MAC 1600 system can print on either A4 or 8.5” x 11” paper. For
instructions, refer to “Adjusting the Paper Tray for Paper Size” on
page 10-9.
Insert the appropriately sized paper.
For instructions, refer to “Replacing Paper” on page 10-8.
