Equipment Overview
System Description
Start Up Screen
Depending on what options have been selected for Power up mode in
Basic Setup, the start up screen will be one of the following:
Resting ECG
Stress ECG
Arrhythmia
Main Screen
A window prompting you to enter User ID and Password.
NOTE
The password window will appear only if the High Security Mode
option is selected in Basic Setup. The system can be used to take
a STAT ECG without having to log in. Press the F1 key to select
STAT ECG to begin taking an ECG without logging into the
MAC 1600 system.
Using the MAC 1600 Keyboard
You interact with the MAC 1600 system by using the keyboard. In
addition to entering data as you would any keyboard, use it to:
Select menu options
Navigate through data entry fields
Control optional stress equipment
For a complete description of the MAC 1600 keyboard features, refer to
“Keyboard Layout” on page 2-4 and “Stress Test Keys” on page 7-5.
Selecting Menu Options

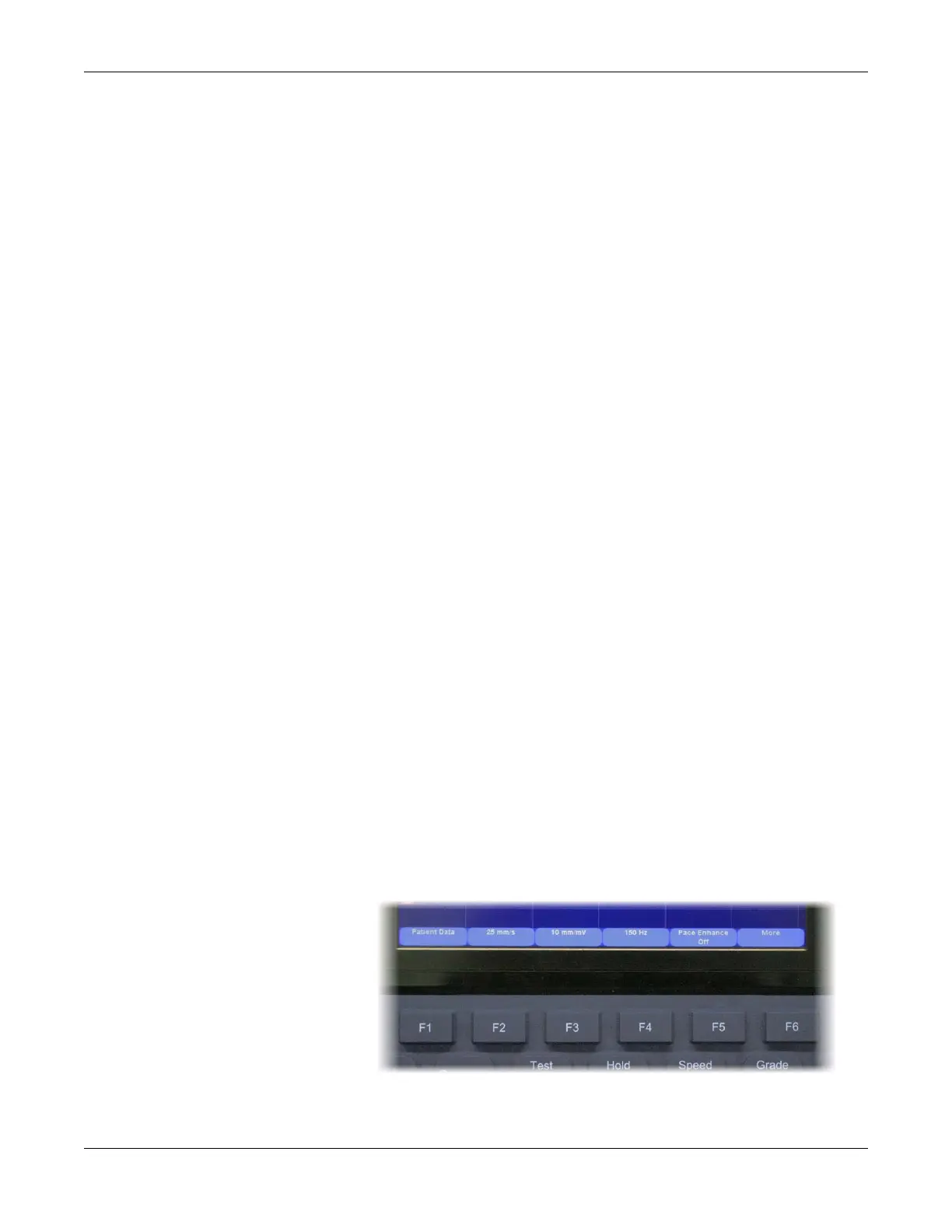

You configure the device and initiate ECG readings by selecting menu
options that appear across the bottom of the display. Up to six menu
options may be available at any given time, and each option corresponds
to a function key (F1–F6) directly below the display.
