Equipment Overview

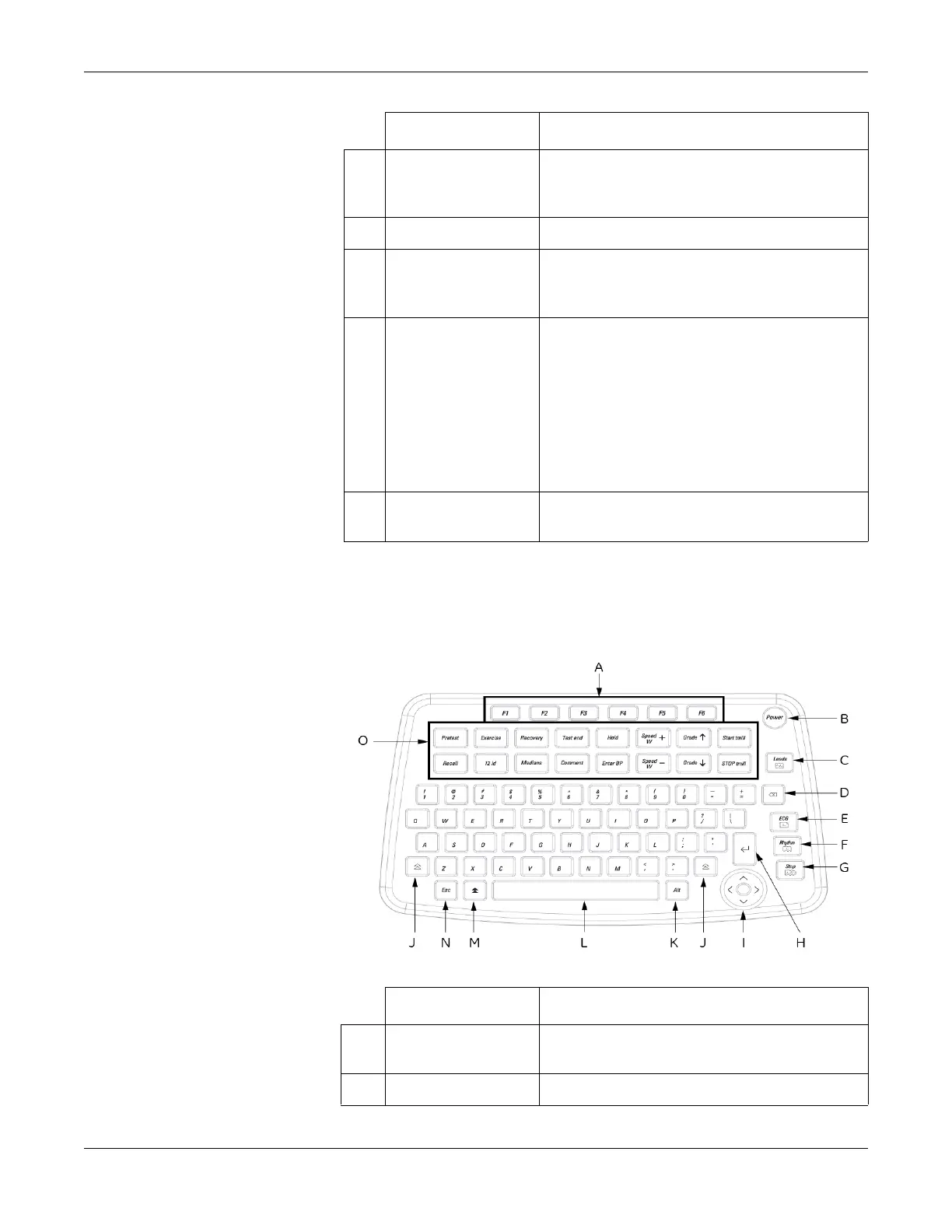

Keyboard Layout
Your keyboard may differ slightly from that shown.
002
F USB connector Standard Universal Serial Bus connector for USB
devices, such as the optional barcode reader or
external USB keyboard.
G LAN connection RJ45 network connector.
H SD card slot Secure Digital card slot. Insert card as indicated by the
icon. The MAC 1600 system supports only SD cards
formatted for the FAT or FAT16 file systems.
I External Video Monitor
connection
Standard 15-pin VGA connector for an external
monitor. Connect a medical grade VGA CRT or medical
grade VGA compatible LCD display.
NOTE
The MAC 1600 display resolution is 800 by 480
pixels. Due to differing aspect ratios, the image
may appear distorted on some LCD monitors.
Consult the operating guide for your LCD monitor.
J Equipotential grounding
lug
Connect non-grounded peripheral devices to ensure
equipotential.
Name Description
Name Description
A Function Keys
(F1 through F6)
Selects menu options on the screen. Refer to
“Selecting Menu Options” on page 2-12 for details.
B Power Button Turns the unit on and off.
To Next Page
