GE MAC 1600 Operator's Manual

Preparing the Patient
2028451-182B MAC™ 1600 3-5

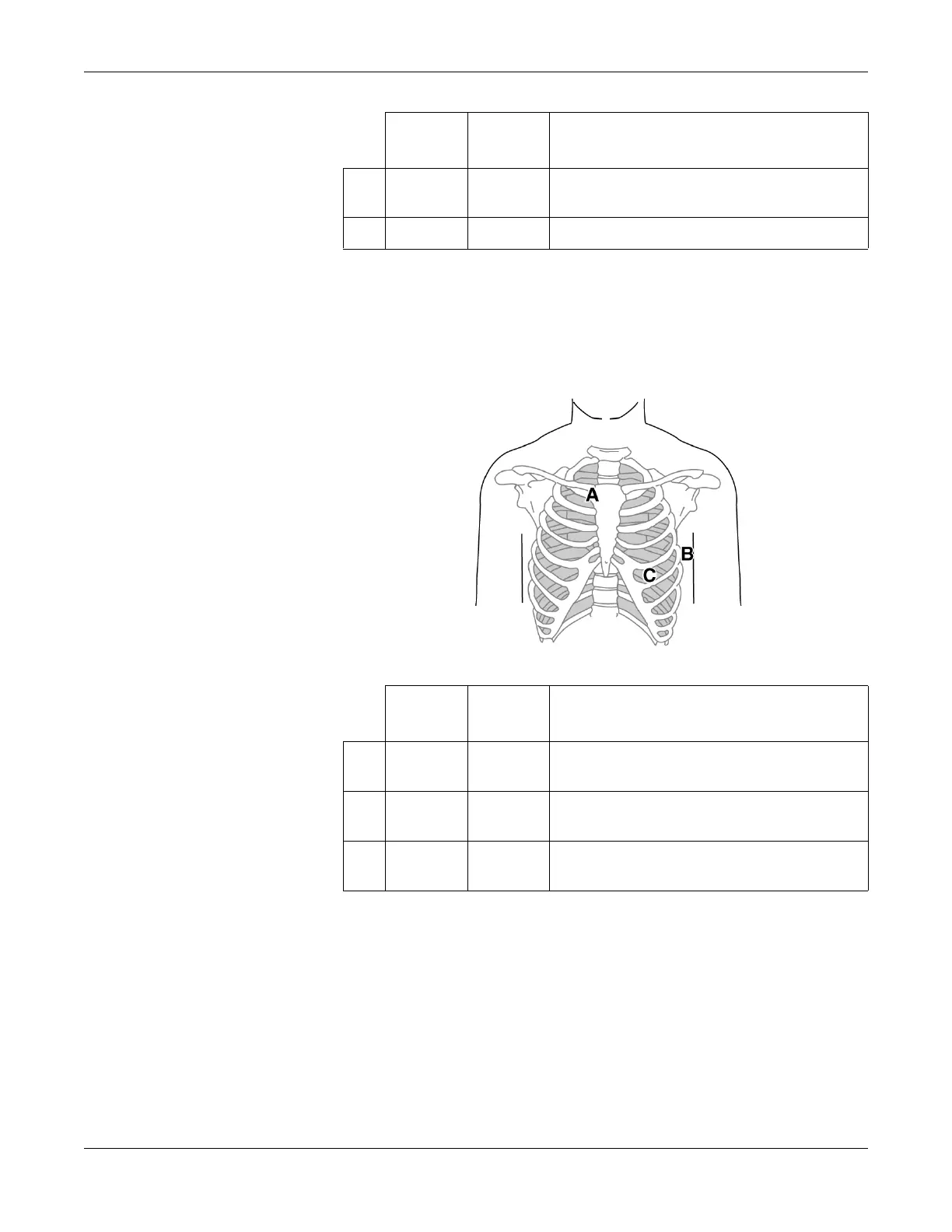

NEHB Lead Placement
To acquire a NEHB ECG, use the standard 12 lead electrode placement
and items A and B as shown in the following figure.
027A
I RL green N black Above right ankle. (Alternate placement, upper leg as
close to torso as possible.)
J RA white R red Right deltoid.
AHA
Label
IEC Label Electrode Placement
AHA
Label
IEC Label Electrode Placement
A A1 orange Nst white Attachment point of the 2nd rib to the right sternal
edge.
B A2 orange Nax white 5th intercostal space on the left posterior axillary line.
(Same position as V7 or C7.)
C V4 blue Nap white Mid-clavicular line in the fifth intercostal space.
(Same position as C4.)
