D400 SUBSTATION GATEWAY INSTRUCTION MANUAL GE INFORMATION 105
D400 Substation Gateway
Chapter 8: Using the D400
Using the D400
This chapter describes the user interfaces available with the D400. The:
• Front panel LEDs allow you to view the operational status of the D400.
• D400 HMI allows you to view and configure the operational status of the D400.
• System Utilities allow you to manage the D400 system setup.
Front panel LEDs
Once the D400 is powered up, the LED indicators on the front panel of the D400 become
active. The indicators provide status information on the operation of the D400.

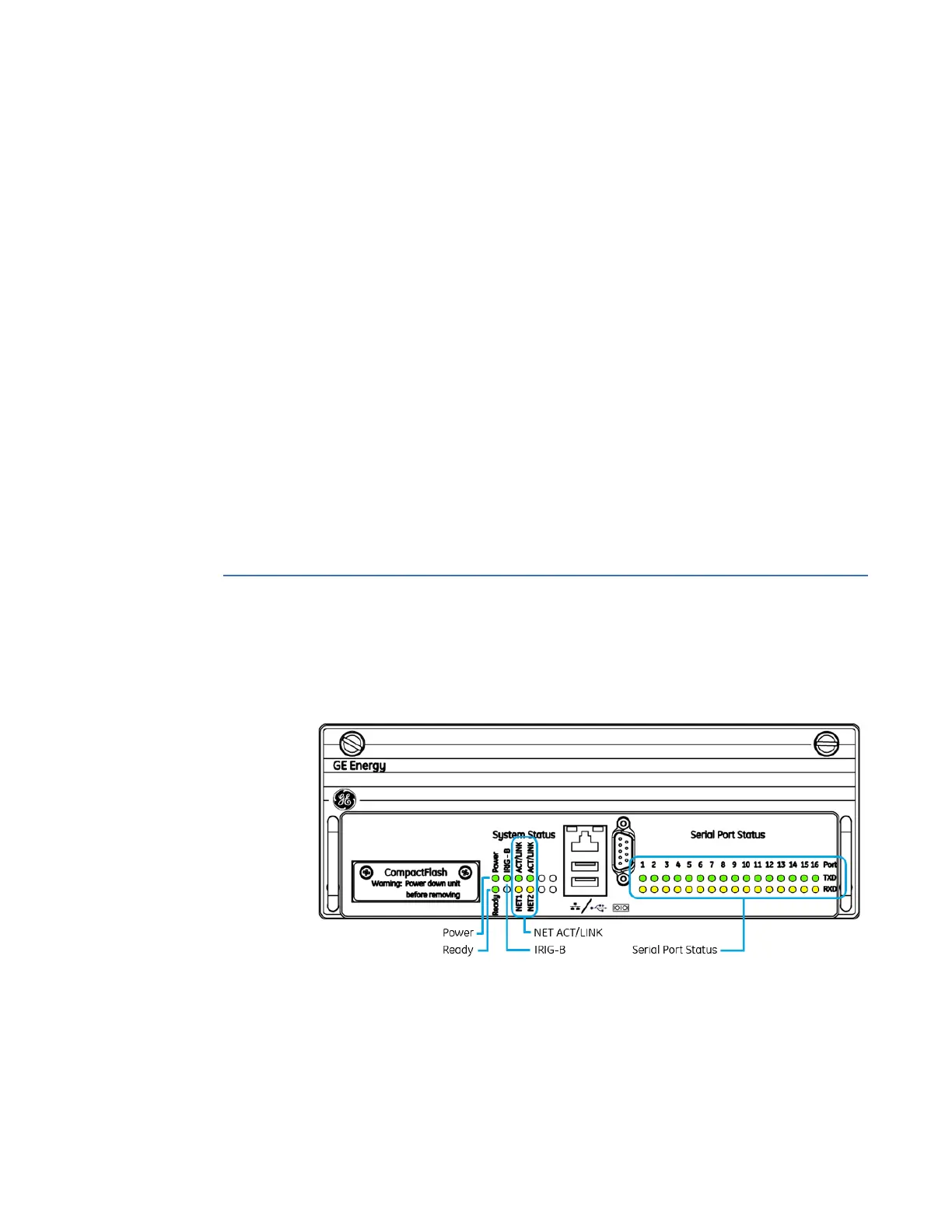

Figure 53: D400 Front LEDs
