54 GE INFORMATION D400 SUBSTATION GATEWAY INSTRUCTION MANUAL
CHAPTER 3: SETTING UP COMMUNICATION CARDS
USB KVM and audio adapter
The USB Keyboard, Video, Mouse Adapter (GE Item No. 520-0206LF) plugs into the USB
KVM slot (slot 13) on the D400. The card provides connections for setting up a permanent
local workstation, including:
Three USB v1.1 compliant Type A ports (P3-P5) for keyboard, mouse or other USB
device
Single 3.5 mm audio jack (P2) for stereo audio output
High-density D-sub 15-socket connector (J1) for video output
See “Local HMI connection” on page 69 for typical cable connections.
Configuration options
There are no selectable options on the USB KVM card.

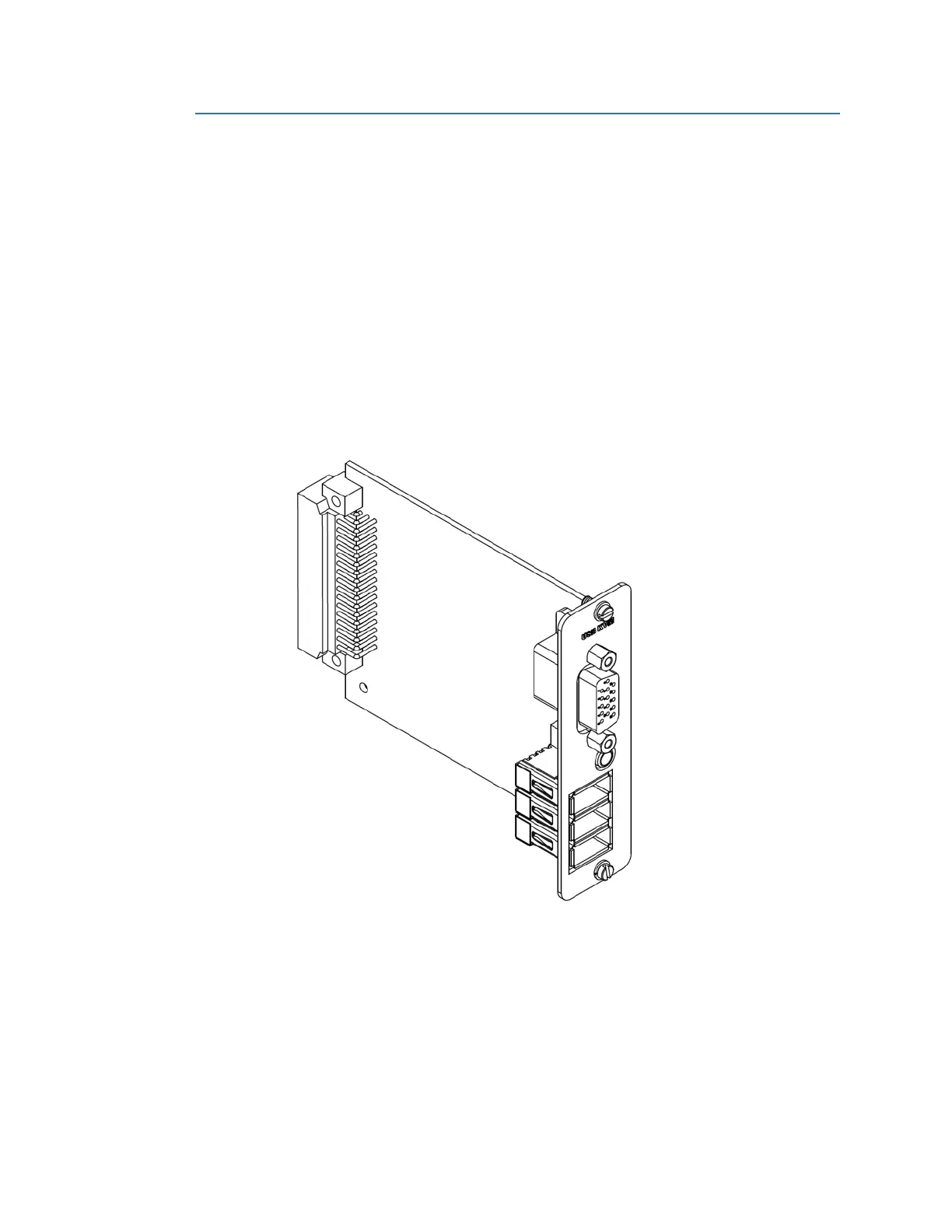

Figure 29: USB KVM Adapter
