The proper orientation of the LED1/2 connector is for the polarity tab keying feature to
be facing out towards the card edge), and for the LAN1/2 connector polarity tab
keying feature to be facing in from the card edge.
7. Attach the Ethernet Module card to the expansion slot and secure using the four
provided Philips screws.

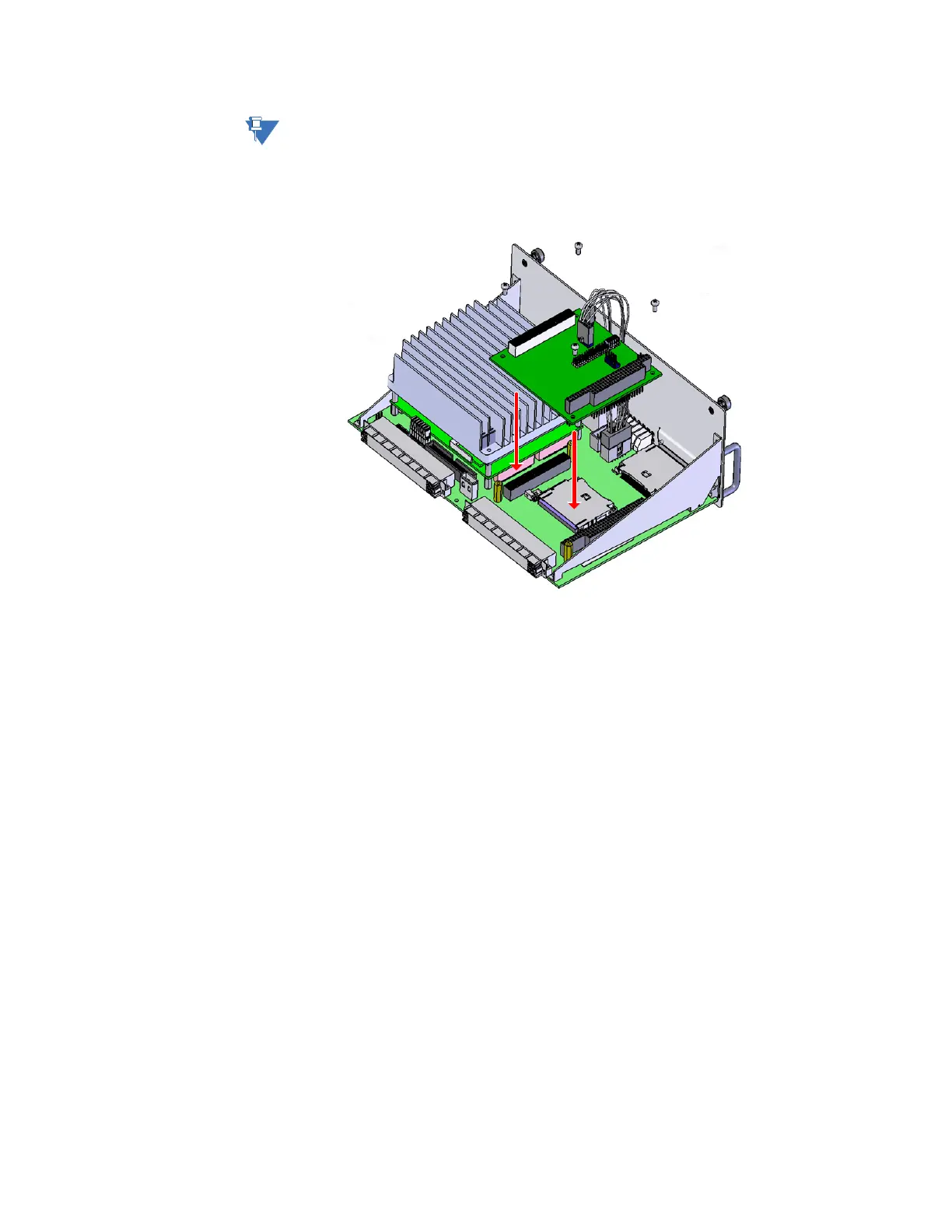

Figure 66: Dual Ethernet upgrade kit with card 580-3410 - attach Ethernet module card
8. Re-insert the D400 main module.
9. Power up the D400 and configure the network connections as required using d400cfg.
Refer to chapter: “Using the D400 Local Configuration Utility” on page 133 for more
information.
