6.) Remove the base module.
7.) Remove the four caster wheels
.

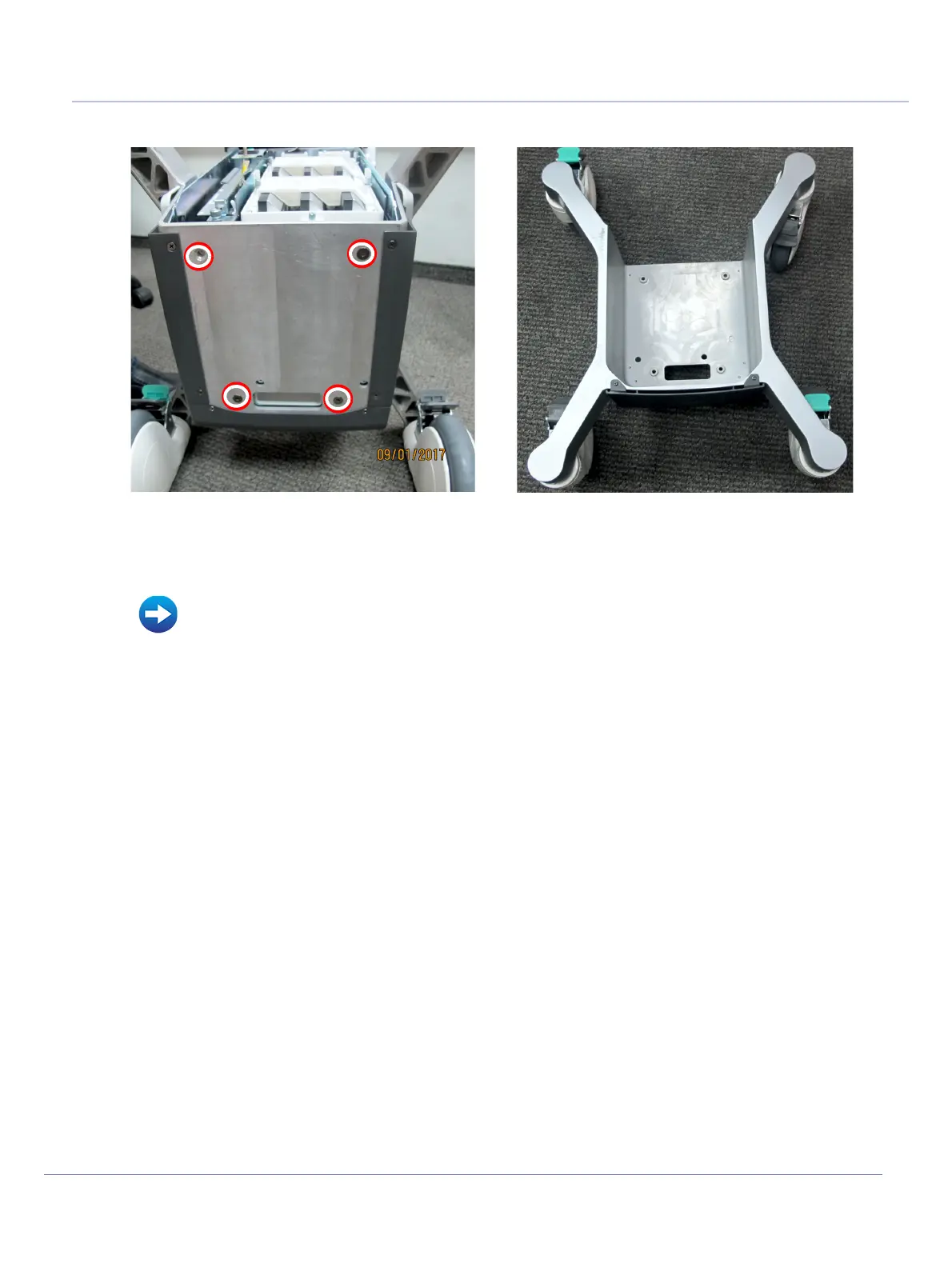

Figure 8-15 Removing the Base Module
• Casters Removal Procedure
Four screws that hold Base Module
Base Module Removed
To Next Page
