GE Venue R1

8-26 Section 8-4 - System Modules- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-4-1-5 Base Module Installation Procedure
1.) Install the caster wheels.
2.) Install the Base Module. Mount the eTower on the base according to the position of the emboss
metal sheets that assist to properly position the eTower on the base
3.) Apply LOCTITE® 243™ on the Base Module mounting screws and tighten them.
4.) Refit the following covers: Right Side and Left Side eTower covers., Lower Front eTowe and Front
Base Cover
5.) Install the cockpit (monitor).
6.) Install all accessories.

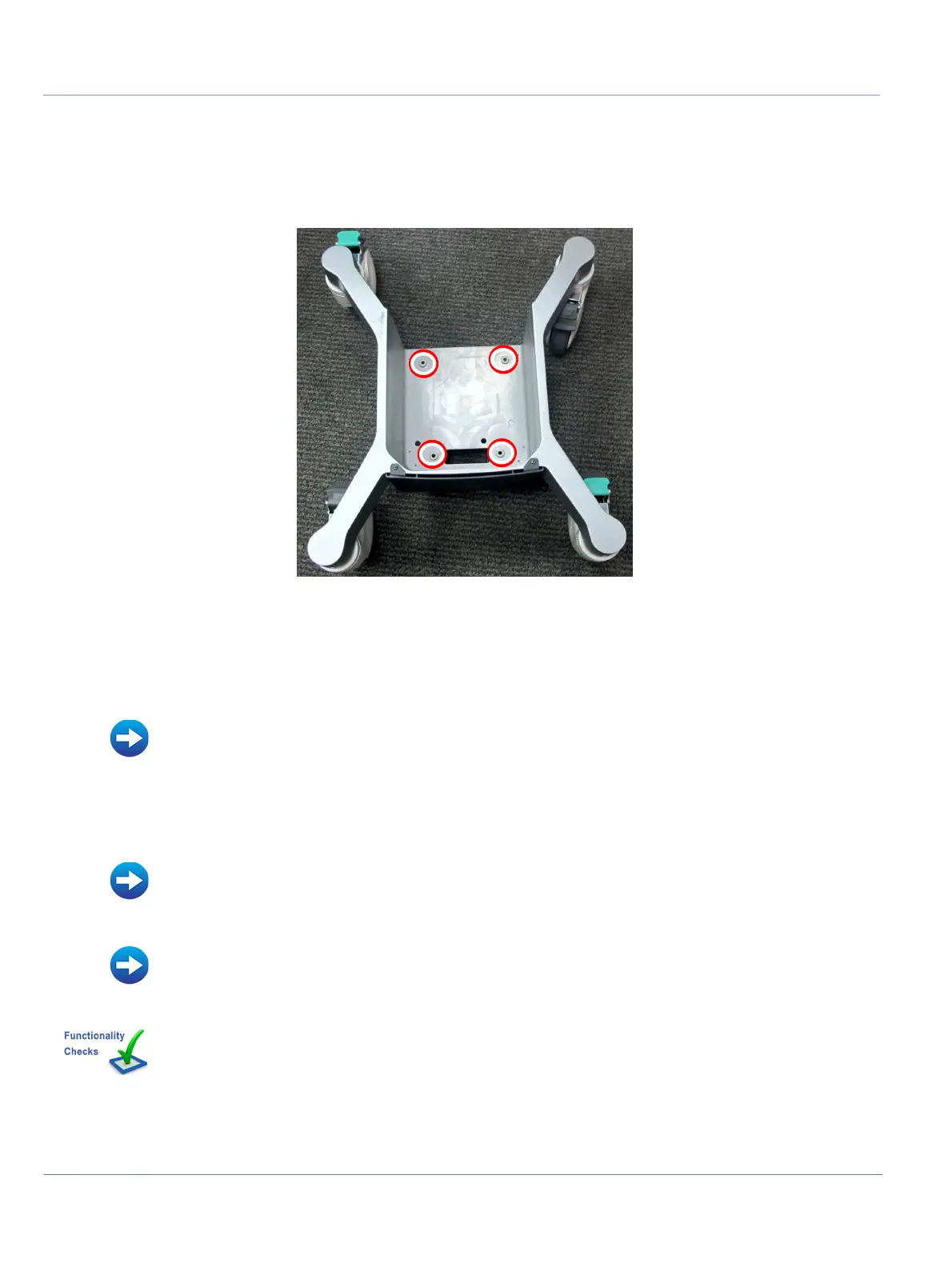

Figure 8-16 Installing the Base Module
• Front Base Cover Installation Procedure
• Left Side eTower Cover Installation Procedure
• Right Side eTower Cover Installation Procedure
• Lower Front eTower Cover Installation Procedure
• Cockpit (Monitor) Installation Procedure
• Accessories - Replacement Procedures
Perform the checks listed in Base Module Replacement Procedure on page 8-216
Location nipples on the Base Module
