Chapter 8 - Replacement Procedures 8-67
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
• Release two screws at the bottom of the bracket
5.) Disconnect BIB TO BE SPLIT CABLE connector that connects the BIB board to the BE module.
6.) Disconnect the PCIe cable connector that connects the BIB board to the BE module.

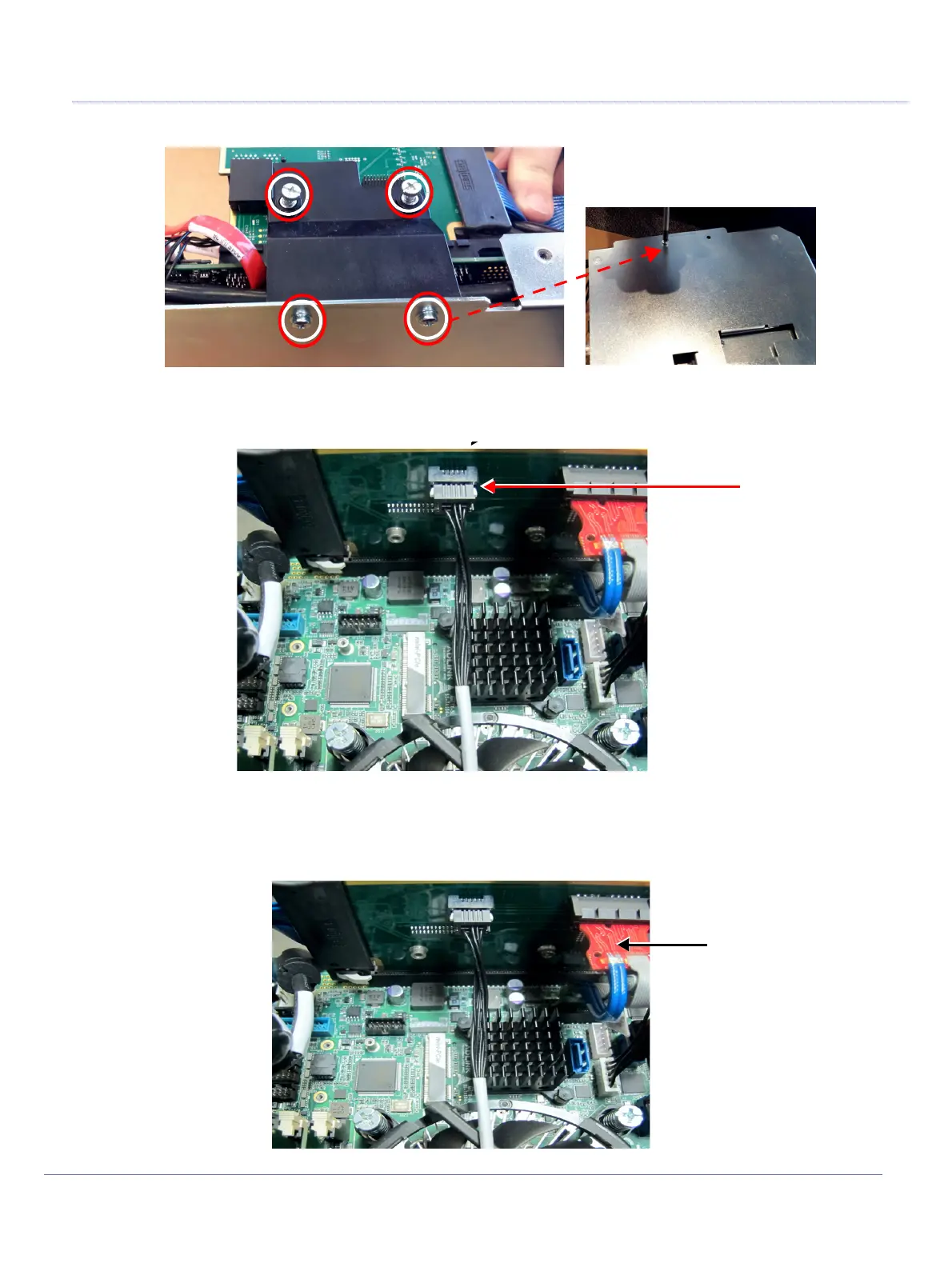

Figure 8-52 Removing BE Supporting Bracket
Figure 8-53 Removing BIB Board - Disconnecting BIB TO BE SPLIT CABLE Connector
Figure 8-54 Removing BIB Board - Disconnecting PCIe Cable Connector
To Next Page
