8-68 Section 8-5 - Electronic Boards- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
7.) Remove the BIB Board.
8-5-1-5 BIB Board Installation Procedure
1.) Install the BIB Board on the BE module.
2.) Connect the cable connector (previously disconnected).
3.) Tighten two screws to secure the BIB board to the BE module.
4.) Install the BE module.
5.) Close the FE door and close the two fastening latches on the left side of the Front End door
assembly.
6.) Tighten the captive screw.
7.) Refit the following covers: Lower Front eTower, Left side eTower, Right Side eTower, and RS Probe
cover
:
8.) Install all accessories.
9.) Turn ON power to the system.

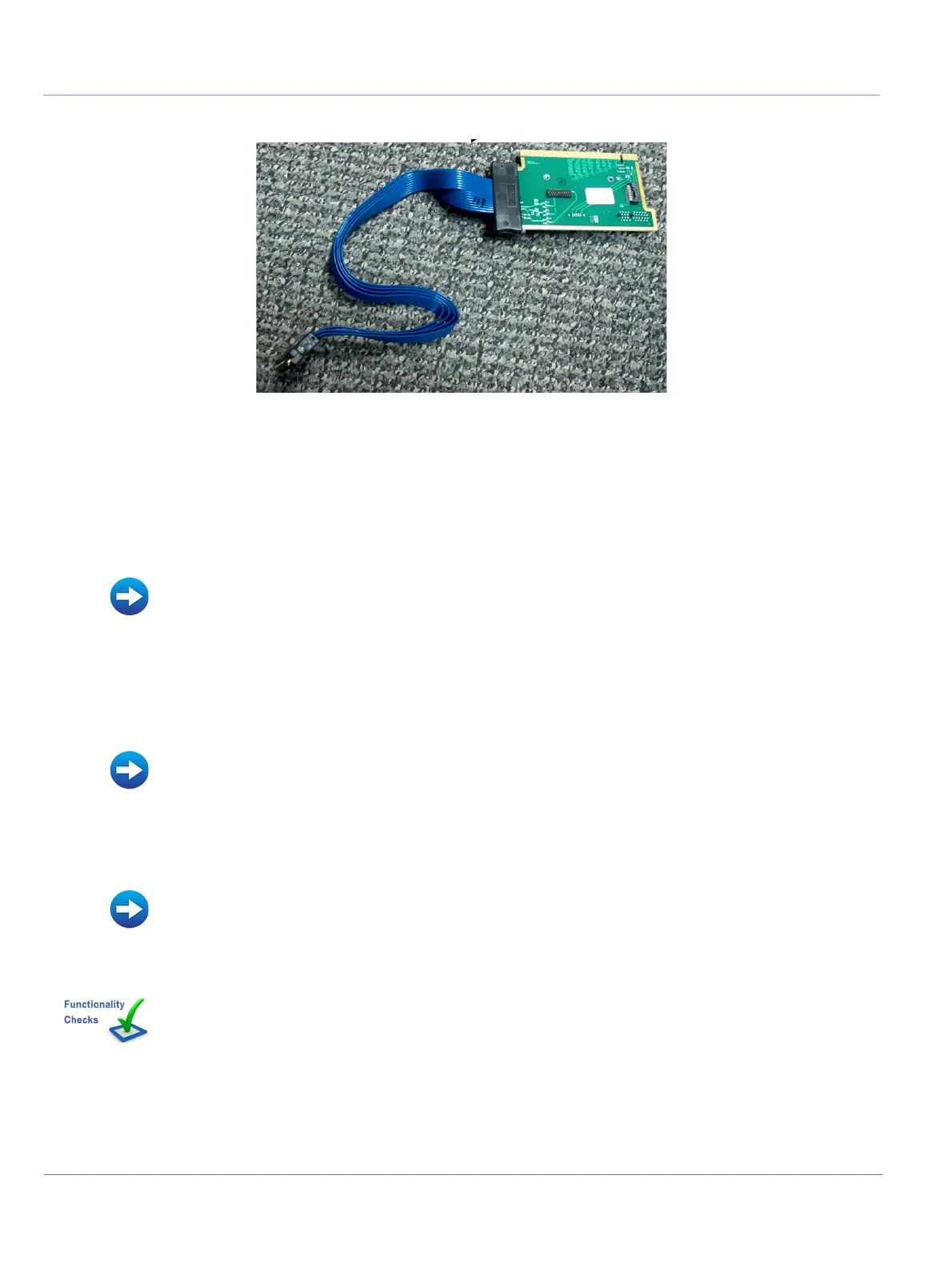

Figure 8-55 Removing BIB Board
• BE Module Installation Procedure
• Right Side eTower Cover Installation Procedure
• Left Side eTower Cover Installation Procedure
• Lower Front eTower Cover Installation Procedure
• RS Probe Cover Installation Procedure
• Accessories - Replacement Procedures
Perform the checks listed in BIB Board Replacement Procedure on page 8-217
